ABB 1SCA106423R1001 1SCA106423R1001 ABB Switch switch I-II OT400E12CLP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

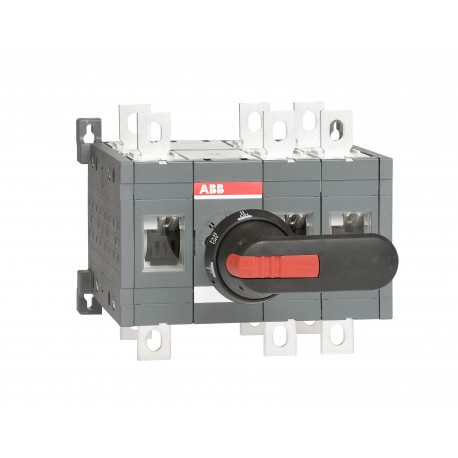

1SCA106423R1001 ABB Switch switch I-II OT400E12CLP

1SCA106423R1001

106423

ABB

1 Pcs.

Switch switch I-II OT400E12CLP I-II OT400E12CLP Switch OT400E12CLP CHANGE-OVER SWITCH

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing seamless source-to-source transfer capabilities, the 1SCA106423R1001 ABB Switch switch I-II OT400E12CLP manages alternative power inputs in electrical distribution networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Environmental Information: 1SCC303050D0201
  • REACH Declaration: 1SCC011021D0201
  • RoHS Information: 1SCC011020D0201
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85365080
  • Country of Origin: Finland (FI)
  • Data Sheet, Technical Information: 1SCC303003C0201
  • Instructions and Manuals: 1SCC303008M0208
  • Product Net Width: 221 mm
  • Product Net Height: 185 mm
  • Product Net Depth / Length: 203 mm
  • Product Net Weight: 6 kg
  • Rated Operational Current AC-21A (I e ): (380 ... 415 V) 400 A
  • Rated Operational Current AC-22A (I e ): (380 ... 415 V) 400 A
  • Rated Operational Current AC-23A (I e ): (380 ... 415 V) 400 A

More info

▲
Circular Value
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Environmental Information1SCC303050D0201
REACH Declaration1SCC011021D0201
RoHS Information1SCC011020D0201
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country of OriginFinland (FI)
Popular Downloads
Data Sheet, Technical Information1SCC303003C0201
Instructions and Manuals1SCC303008M0208
Dimensions
Product Net Width221 mm
8.7 in
Product Net Height185 mm
7.28 in
Product Net Depth / Length203 mm
7.99 in
Product Net Weight6 kg
13.23 lb
Technical
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 400 A
(500 V) 400 A
(690 V) 400 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 400 A
(500 V) 400 A
(690 V) 400 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 400 A
(500 V) 400 A
(690 V) 400 A
Rated Operational Current AC-31B (Ie)(380 ... 415 V) 400 A
Rated Operational Current AC-33B (Ie)(380 ... 415 V) 400 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 220 kW
(500 V) 280 kW
(690 V) 400 kW
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 400 A
Conventional Thermal Current (Ithe)Fully Enclosed 400 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage1000 V
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 15 kiloampere rms
Power Loss10 W
Pollution Degree3
Handle ColorBlack
Handle TypeHandle and shaft included
Switches Operating MechanismMechanism Between the Poles
12 (Between the Poles)
Distance Between PhasesStandard
Position of Line TerminalsTop In - Bottom Out, Bottom In - Top Out
Operating ModeFront operated
Mounting TypeBase mounting
Number of Poles3
Degree of ProtectionFront IP20
Transition TypeClosed
Technical UL/CSA
Ampere Rating400 A
Environmental
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Environmental Information1SCC303050D0201
Certificates and Declarations
Declaration of Conformity - CE1SCC303046D2702
DNV Certificate1SCC303138D0201
REACH Declaration1SCC011021D0201
Container Information
Package Level 1 Units1 piece
Package Level 1 Width240 mm
9.45 in
Package Level 1 Depth / Length270 mm
10.63 in
Package Level 1 Height218 mm
8.58 in
Package Level 1 Gross Weight6.41 kg
14.13 lb
Package Level 1 EAN6417019402208
Classifications
Object Classification CodeQ
ETIM 7EC000216 - Switch disconnector
ETIM 8EC000216 - Switch disconnector
ETIM 9EC000216 - Switch disconnector (low voltage)
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3641623

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
