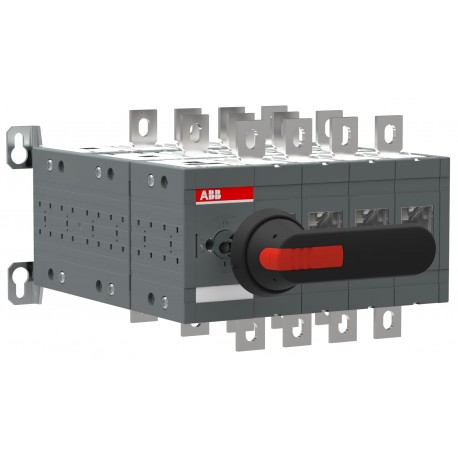

1SCA124026R1001 ABB OT400E04YP BY-PASS SWITCH
1SCA124026R1001
124026
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The ABB 1SCA124026R1001 OT400E04YP is a specialized by-pass switch engineered to route electrical currents seamlessly between alternate paths in industrial setups. Such switching assemblies are crucial for maintaining continuous power delivery and facilitating uninterrupted load transfers during system maintenance.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Data Sheet, Technical Information: 1SCC303003C0201
- Instructions and Manuals: 1SCC301080M0003
- Degree of Protection: Front IP20
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country or Territory of Origin: Finland
- Product Net Width: 280 mm
- Product Net Height: 185 mm
- Product Net Depth / Length: 306 mm
- Product Net Weight: 13.6 kg
- Package Level 1 Units: box 1 box
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC303003C0201 |
| Instructions and Manuals | 1SCC301080M0003 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 280 mm |
| 11.02 in | |
| Product Net Height | 185 mm |
| 7.28 in | |
| Product Net Depth / Length | 306 mm |
| 12.05 in | |
| Product Net Weight | 13.6 kg |
| 29.98 lb | |
| Container Information | |
| Package Level 1 Units | box 1 box |
| Package Level 1 Width | 265 mm |
| 10.43 in | |
| Package Level 1 Depth / Length | 375 mm |
| 14.76 in | |
| Package Level 1 Height | 330 mm |
| 12.99 in | |
| Package Level 1 Gross Weight | 14.02 kg |
| 30.91 lb | |
| Package Level 1 EAN | 6417019547152 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 400 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 400 A |
| Degree of Protection | Front IP20 |
| Distance Between Phases | Standard |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 10 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 400 A |
| (500 V) 400 A | |
| (690 V) 400 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 400 A |
| (500 V) 400 A | |
| (690 V) 400 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 400 A |
| (500 V) 400 A | |
| (690 V) 400 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 220 kW |
| (500 V) 280 kW | |
| (690 V) 400 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kiloampere rms |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 04 (Left Side) | |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 30 ... 44 N·m |
| Transition Type | Open |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 30 ... 44 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC301195D2703 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
