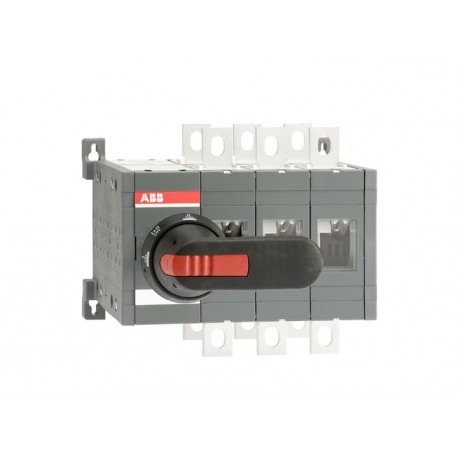

1SCA108641R1001 ABB Switch switch I-II OT400E03CLP
1SCA108641R1001
108641
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB 1SCA108641R1001 switch switch I-II OT400E03CLP is an industrial-grade switching device utilized to safely route, transfer, or disconnect high-current electrical power between alternative supply sources. These heavy-duty load break units are commonly integrated into electrical distribution boards, primary switchboards, and automation enclosures to maintain reliable power management during routine maintenance or system transitions.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Environmental Information: 1SCC303050D0201
- REACH Declaration: 1SCC011021D0201
- RoHS Information: 1SCC011020D0201
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country of Origin: Finland (FI)
- Data Sheet, Technical Information: 1SCC303003C0201
- Instructions and Manuals: 1SCC303008M0208
- Product Net Width: 221 mm
- Product Net Height: 185 mm
- Product Net Depth / Length: 203 mm
- Product Net Weight: 6 kg
- Rated Operational Current AC-21A (I e ): (380 ... 415 V) 400 A
- Rated Operational Current AC-22A (I e ): (380 ... 415 V) 400 A
- Rated Operational Current AC-23A (I e ): (380 ... 415 V) 400 A
More info
▲| Circular Value | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Environmental Information | 1SCC303050D0201 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Information | 1SCC011020D0201 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC303003C0201 |
| Instructions and Manuals | 1SCC303008M0208 |
| Dimensions | |
| Product Net Width | 221 mm |
| 8.7 in | |
| Product Net Height | 185 mm |
| 7.28 in | |
| Product Net Depth / Length | 203 mm |
| 7.99 in | |
| Product Net Weight | 6 kg |
| 13.23 lb | |
| Technical | |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 400 A |
| (500 V) 400 A | |
| (690 V) 400 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 400 A |
| (500 V) 400 A | |
| (690 V) 400 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 400 A |
| (500 V) 400 A | |
| (690 V) 400 A | |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 400 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 400 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 220 kW |
| (500 V) 280 kW | |
| (690 V) 400 kW | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 400 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 400 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kiloampere rms |
| Power Loss | 10 W |
| Pollution Degree | 3 |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 03 (Left Side) | |
| Distance Between Phases | Standard |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Operating Mode | Front operated |
| Mounting Type | Base mounting |
| Number of Poles | 3 |
| Degree of Protection | Front IP20 |
| Transition Type | Closed |
| Technical UL/CSA | |
| Ampere Rating | 400 A |
| Environmental | |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Environmental Information | 1SCC303050D0201 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC303046D2702 |
| DNV Certificate | 1SCC303138D0201 |
| REACH Declaration | 1SCC011021D0201 |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 240 mm |
| 9.45 in | |
| Package Level 1 Depth / Length | 270 mm |
| 10.63 in | |
| Package Level 1 Height | 218 mm |
| 8.58 in | |
| Package Level 1 Gross Weight | 6.4 kg |
| 14.11 lb | |
| Package Level 1 EAN | 6417019401638 |
| Classifications | |
| Object Classification Code | Q |
| ETIM 7 | EC000216 - Switch disconnector |
| ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3641622 |
