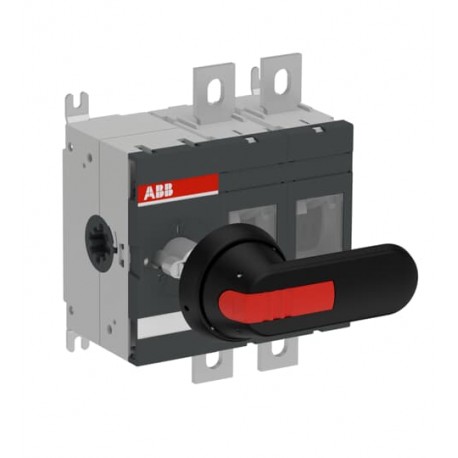

ABB 1SCA022741R7210 1SCA022741R7210 ABB OT400E02P switch-disconnector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA022741R7210 ABB OT400E02P switch-disconnector

1SCA022741R7210

022741

ABB

1 Pcs.

OT400E02P switch-disconnector OT400E02P disconnect switch OT400E02P SWITCH-DISCONNECTOR

Connectors > Switch disconnector
OT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

ABB 1SCA022741R7210 OT400E02P switch-disconnector provides reliable circuit interruption and isolation for industrial electrical networks. This component is widely utilized in control cabinets and switchgear assemblies to ensure secure power breakdown during servicing. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • End Of Life Disassembling Instructions: 1SCC301118M0201
  • Environmental Information: 1SCC301266D0201
  • Environmental Product Declaration - EPD: 1SCC301283D0201
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Toxic Substances Control Act - TSCA: 1SCC011025D0201
  • Data Sheet, Technical Information: 1SCC301020C0201
  • Instructions and Manuals: 1SCC301035M0019
  • Mechanical Drawings: 1SCC301276F0001
  • Environmental Product Declaration - EPD: 1SCC301283D0201
  • Degree of Protection: Front IP00
  • Environmental Information: 1SCC301266D0201
  • Minimum Order Quantity: 1 piece

More info

▲
ABB EcoSolutions
End Of Life Disassembling Instructions1SCC301118M0201
Environmental Information1SCC301266D0201
Environmental Product Declaration - EPD1SCC301283D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC301035M0019
Mechanical Drawings1SCC301276F0001
1SCC301275F0001
OT315-400E02.stp
OT315-400E02.igs
Environmental Product Declaration - EPD1SCC301283D0201
Environmental
Degree of ProtectionFront IP00
Environmental Information1SCC301266D0201
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width147 mm
Product Net Height185 mm
Product Net Depth / Length107 mm
Product Net Weight2.3 kg
5.2 lb
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width210 mm
8.3 in
Package Level 1 Depth / Length210 mm
8.3 in
Package Level 1 Height150 mm
5.9 in
Package Level 1 Gross Weight2.5 kg
5.5 lb
Package Level 1 EAN6417019240336
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 400 A
Conventional Thermal Current (Ithe)Fully Enclosed 400 A
Degree of ProtectionFront IP00
Distance Between PhasesStandard
Handle ColorBlack
Handle TypeHandle and shaft included
Mechanical Durability16000
Mounting TypeBase mounting
Number of Poles2P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 10 W
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 400 A
(500 V) 400 A
(690 V) 400 A
(1000 V) 400 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 400 A
(500 V) 400 A
(690 V) 400 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 400 A
(500 V) 400 A
(690 V) 400 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 132 kW
(400 ... 415 V) 230 kW
(500 V) 280 kW
(690 V) 400 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)(690 V) 65 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 15 kA
Special FunctionsNo
StandardsIEC 60947-3
Switches Operating MechanismMechanism at the End of the Switch
02 (Left Side)
Terminal TypeLug terminals
Tightening Torqueacc. IEC 60947-1 30 … 44 N·m
Technical UL/CSA
Tightening Torqueacc. IEC 60947-1 30 … 44 N·m
Certificates and Declarations
A2L Certificate – IEC1SCC301337D0201
Declaration of Conformity - CE1SCC301135D2704
DNV GL Certificate1SCC301174D0204
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
