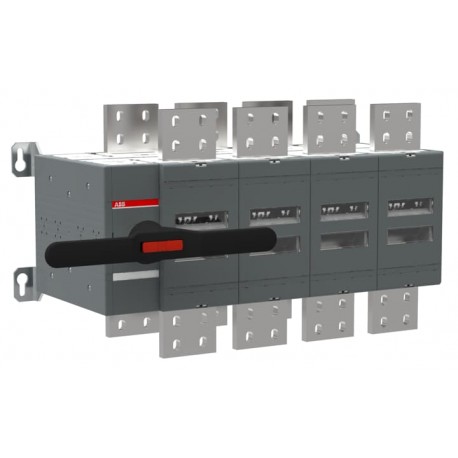

1SCA129158R1001 ABB OT3200E04CP CHANGE-OVER SWITCH
1SCA129158R1001
129158
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB OT3200E04CP change-over switch provides reliable transfer of electrical loads between different power sources in industrial distribution networks. These heavy-duty switching devices allow operators to safely shift circuits during maintenance or backup power operations.
Exact pricing, availability and lead time are confirmed per enquiry through an RFQ.
- End Of Life Disassembling Instructions: 1SCC303055M0201
- Environmental Product Declaration - EPD: 1SCC303102D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Data Sheet, Technical Information: 1SCC303003C0201
- Instructions and Manuals: 1SCC303008M0208
- Degree of Protection: Front IP20
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country or Territory of Origin: Finland
- Product Net Width: 730 mm
- Product Net Height: 410 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC303055M0201 |
| Environmental Product Declaration - EPD | 1SCC303102D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC303003C0201 |
| Instructions and Manuals | 1SCC303008M0208 |
| Environmental Product Declaration - EPD | 1SCC303102D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 730 mm |
| 28.74 in | |
| Product Net Height | 410 mm |
| 16.14 in | |
| Product Net Depth / Length | 325 mm |
| 12.8 in | |
| Product Net Weight | 88.6 kg |
| 195.33 lb | |
| Container Information | |
| Package Level 1 Units | box 1 box |
| Package Level 1 Width | 590 mm |
| 23.23 in | |
| Package Level 1 Depth / Length | 790 mm |
| 31.1 in | |
| Package Level 1 Height | 510 mm |
| 20.08 in | |
| Package Level 1 Gross Weight | 108.6 kg |
| 239.42 lb | |
| Package Level 1 EAN | 6417019588568 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 3200 A |
| Degree of Protection | Front IP20 |
| Distance Between Phases | Standard |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 95 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 3200 A |
| (500 V) 3200 A | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kiloampere rms |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 04 (Left Side) | |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
| Transition Type | Open |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC303022D2702 |
| DNV Certificate | 1SCC303138D0201 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| UNSPSC | 39122233 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
