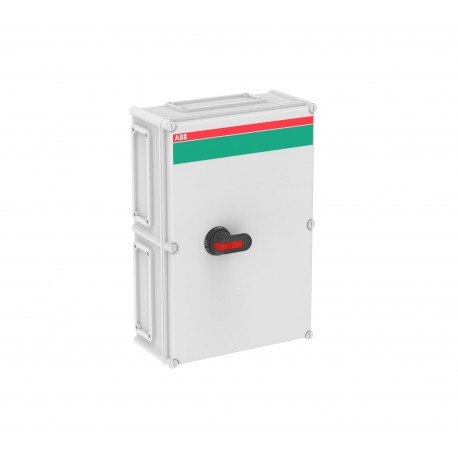

1SCA022548R6710 ABB Int. Disconnector in box OT315KFCC4B
1SCA022548R6710
022548
ABB
1 Pcs.
Int. Disconnector in box OT315KFCC4B
Int. Box Disconnector OT315KFCC4B
OT315KFCC4B Enclosed Switch Disconnector
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb Disconnector in box OT315KFCC4B serves as a protective enclosure housing an industrial load break switch, commonly deployed in harsh environments to manually isolate electrical circuits during maintenance or emergency interventions.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC340076D0201
- RoHS Declaration: 1SCC340075D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC340095D0201
- Data Sheet, Technical Information: 1SCC340015C0201
- Instructions and Manuals: 1SCC340015M0004
- Mechanical Drawings: OTPK563818PII.stp
- Degree of Protection: acc. to IEC 60529 IP65
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85363090
- Country or Territory of Origin: Finland
- Product Net Width: 380 mm
- Product Net Height: 560 mm
- Product Net Depth / Length: 180 mm
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340015M0004 |
| Mechanical Drawings | OTPK563818PII.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 380 mm |
| Product Net Height | 560 mm |
| Product Net Depth / Length | 180 mm |
| Product Net Weight | 7.766 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 710 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 9.7 kg |
| Package Level 1 EAN | 6417019173962 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | II-flange / II-flange |
| Color | RAL7035 |
| Connecting Capacity Main Circuit | Hole Diameter 10 mm |
| Screw Clamp / PE Terminal 4pc,25 ... 120 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 315 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Plastic |
| Handle Color | Black |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Switchable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 4P |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Conditional Short-Circuit Current (Inc) | 61.5 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 315 A |
| (690 V) 315 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 315 A |
| (500 V) 315 A | |
| (690 V) 315 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 180 kW |
| (500 V) 220 kW | |
| (690 V) 315 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 65 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kA |
| Recommended Screw Driver | Main Circuit M10 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 44 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M10 |
| Tightening Torque | Main Circuit 44 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340025D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
