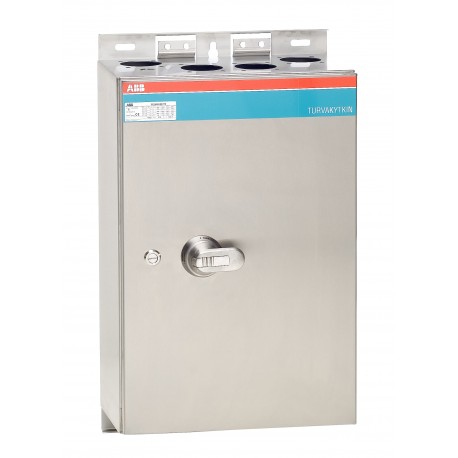

1SCA102332R1001 ABB OT315ERRR3TZ Safety switch
1SCA102332R1001
102332
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB OT315ERRR3TZ Safety switch is a robust enclosed load break switch engineered to disconnect electrical equipment from the power supply during servicing, cleaning, or emergency situations. Such devices are deployed in harsh industrial environments to prevent accidental machine startup and protect maintenance personnel.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC340076D0201
- RoHS Declaration: 1SCC340075D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: b5b0a00e-efe6-4f72-a5ed-08dd2c2a1871 Finland
- Simplified SCIP: 4c9b9ee9-49cd-45a4-b2c7-f490ea7a80fe Germany
- Toxic Substances Control Act - TSCA: 1SCC340095D0201
- Data Sheet, Technical Information: 1SCC340015C0201
- Instructions and Manuals: 1SCC340008M0004
- Mechanical Drawings: OTRK604023P4R25.stp
- Degree of Protection: acc. to IEC 60529 IP65
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85363090
- Country or Territory of Origin: Finland
- Product Net Width: 400 mm
More info
