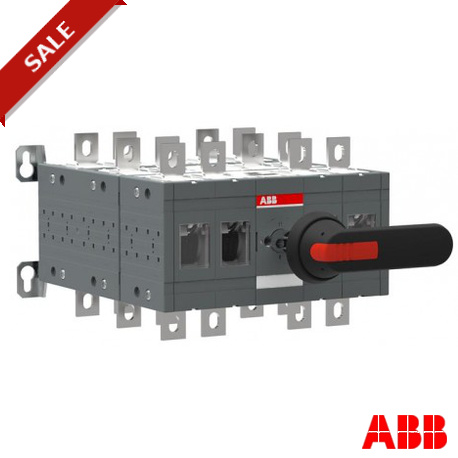

OT315E22YP 1SCA123586R1001 ABB OT315E22YP BY-PASS SWITCH
OT315E22YP
1SCA123586R1001
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb by-pass switch OT315E22YP provides a reliable manual switching mechanism designed to route electrical currents around primary power conditioning equipment for uninterrupted maintenance. Large-scale installations rely on these components to safely shift loads between operational channels without downtime.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Data Sheet, Technical Information: 1SCC303003C0201
- Rated Operational Current AC-21A (I e ): (380 ... 415 V) 315 A (500 V) 315 A (690 V) 315 A
- Rated Operational Current AC-22A (I e ): (380 ... 415 V) 315 A (500 V) 315 A (690 V) 315 A
- Rated Operational Current AC-23A (I e ): (500 V) 315 A (380 ... 415 V) 315 A (690 V) 315 A
- Rated Operational Power AC-23A (P e ): (380 ... 415 V) 160 kW (500 V) 220 kW (690 V) 315 kW
- Conventional Free-air Thermal Current (I th ): q = 40 °C 315 A
- Conventional Thermal Current (I the ): Fully Enclosed 315 A
- Rated Impulse Withstand Voltage (U imp ): 12 kV
- Rated Insulation Voltage (U i ): 1000 V
- Rated Operational Voltage: 1000 V
- Rated Short-time Withstand Current (I cw ): for 1 s 15 kiloampere rms
- Power Loss: 6.5 W
- Pollution Degree: 3
- Handle Type: Handle and shaft included
- Switches Operating Mechanism: Mechanism Between the Poles 22 (Between the Poles)
- Distance Between Phases: Standard
More info
▲OT315E22YP BY-PASS SWITCH, Handle and shaft included, Open transition
Ordering
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85365080
Popular Downloads
- Data Sheet, Technical Information:
- 1SCC303003C0201
Dimensions
- Product Net Width:
- 284mm
- Product Net Height:
- 185mm
- Product Net Depth:
- 306mm
- Product Net Weight:
- 284lb
13.5 kg
Technical
- Rated Operational Current AC-21A (Ie):
- (380 ... 415 V) 315 A
(500 V) 315 A
(690 V) 315 A
- Rated Operational Current AC-22A (Ie):
- (380 ... 415 V) 315 A
(500 V) 315 A
(690 V) 315 A
- Rated Operational Current AC-23A (Ie):
- (500 V) 315 A
(380 ... 415 V) 315 A
(690 V) 315 A
- Rated Operational Power AC-23A (Pe):
- (380 ... 415 V) 160 kW
(500 V) 220 kW
(690 V) 315 kW
- Conventional Free-air Thermal Current (Ith):
- q = 40 °C 315 A
- Conventional Thermal Current (Ithe):
- Fully Enclosed 315 A
- Rated Impulse Withstand Voltage (Uimp):
- 12 kV
- Rated Insulation Voltage (Ui):
- 1000 V
- Rated Operational Voltage:
- 1000 V
- Rated Short-time Withstand Current (Icw):
- for 1 s 15 kiloampere rms
- Power Loss:
- 6.5 W
- Pollution Degree:
- 3
- Handle Type:
- Handle and shaft included
- Switches Operating Mechanism:
- Mechanism Between the Poles
22 (Between the Poles)
- Distance Between Phases:
- Standard
- Position of Line Terminals:
- Top In - Bottom Out, Bottom In - Top Out
- Number of Poles:
- 4
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- 1SCC301195D0202
- Instructions and Manuals:
- 1SCC301080M0003
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 205 mm
- Package Level 1 Length:
- 360 mm
- Package Level 1 Height:
- 330 mm
- Package Level 1 Gross Weight:
- 13.5 kg
- Package Level 1 EAN:
- 6417019543703
Classifications
- Object Classification Code:
- Q
- ETIM 5:
- EC000216 - Switch disconnector
- ETIM 6:
- EC000216 - Switch disconnector
