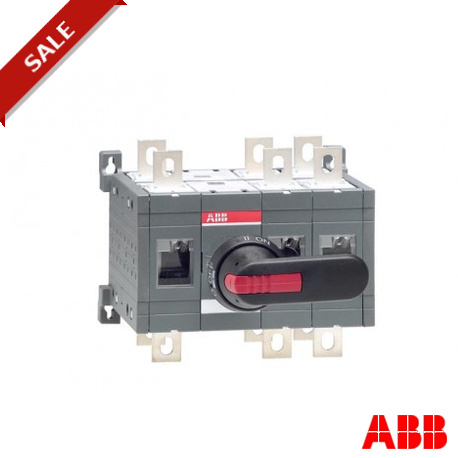

OT315 Y 1SCA123588R1001 ABB OT315E13YP BY-PASS SWITCH
OT315_Y
1SCA123588R1001
ABB
1 Pcs.
Connectors > Switch disconnector
OT_C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Optimized for uninterrupted power transfer, the OT315 Y ABB by-pass switch allows engineers to reroute electrical loads between different circuits or source lines without causing system downtime. These manual bypass switches are essential in critical power conditioning and backup architectures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2009 Q4
- Conventional Free-air Thermal Current (I th ): q = 40 °C 315 A
- Conventional Thermal Current (I the ): Fully Enclosed 315 A
- IIT Publishing Status: Level 0 - Information enabled
- Number of Poles: 3
- Operating Mechanism: Mechanism between the poles
- Pollution Degree: 3
- Power Loss: 6.5 W
- Product Main Type: OT315_Y
- Product Name: BY-PASS SWITCH
- Rated Impulse Withstand Voltage (U imp ): 12 kV
- Rated Insulation Voltage (U i ): 1000 V
- Rated Operational Current AC-21A (I e ): (500 V) 315 A (690 V) 315 A
- Rated Operational Current AC-22A (I e ): (500 V) 315 A (690 V) 315 A
- Rated Operational Current AC-23A (I e ): (380 ... 415 V) 315 A (500 V) 315 A (690 V) 315 A
- Rated Operational Power AC-23A (P e ): (220 ... 240 V) 100 kW (400 V) 160 kW (500 V) 220 kW (690 V) 315 kW
More info
▲Including a black plastic IP65 I-0-II pistol type handle and a handle extension for enabling smooth manual operation, shaft and bolt set for the cable connection. The handle extension is snap-on mounted on the standard handle for manual operation. The handle extension shall be removed when padlocking the standard handle. Handle padlockable in the 0-position, door interlock in the I- and II-positions and when padlocked.
Ordering
- EAN:
- 6417019543727
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85365080
Dimensions
- Product Net Width:
- 284mm
- Product Net Height:
- 185mm
- Product Net Depth:
- 306mm
- Product Net Weight:
- 13.5kg
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 205 mm
- Package Level 1 Height:
- 330 mm
- Package Level 1 Length:
- 360 mm
- Package Level 1 Gross Weight:
- 13.5 kg
- Package Level 1 EAN:
- 6417019543727
Environmental
- RoHS Status:
- Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2009 Q4
Additional Information
- Conventional Free-air Thermal Current (Ith):
- q = 40 °C 315 A
- Conventional Thermal Current (Ithe):
- Fully Enclosed 315 A
- IIT Publishing Status:
- Level 0 - Information enabled
- Number of Poles:
- 3
- Operating Mechanism:
- Mechanism between the poles
- Pollution Degree:
- 3
- Power Loss:
- 6.5 W
- Product Main Type:
- OT315_Y
- Product Name:
- BY-PASS SWITCH
- Rated Impulse Withstand Voltage (Uimp):
- 12 kV
- Rated Insulation Voltage (Ui):
- 1000 V
- Rated Operational Current AC-21A (Ie):
- (500 V) 315 A
(690 V) 315 A
- Rated Operational Current AC-22A (Ie):
- (500 V) 315 A
(690 V) 315 A
- Rated Operational Current AC-23A (Ie):
- (380 ... 415 V) 315 A
(500 V) 315 A
(690 V) 315 A
- Rated Operational Power AC-23A (Pe):
- (220 ... 240 V) 100 kW
(400 V) 160 kW
(500 V) 220 kW
(690 V) 315 kW
- Rated Operational Voltage:
- 1000 V
- Rated Short-time Withstand Current (Icw):
- for 1 s 15 kiloampere rms
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- 1SCC303003C0201
- Declaration of Conformity - CE:
- 1SCC301195D0202
Classifications
- ETIM 5:
- EC000216 - Switch disconnector
- Object Classification Code:
- Q
