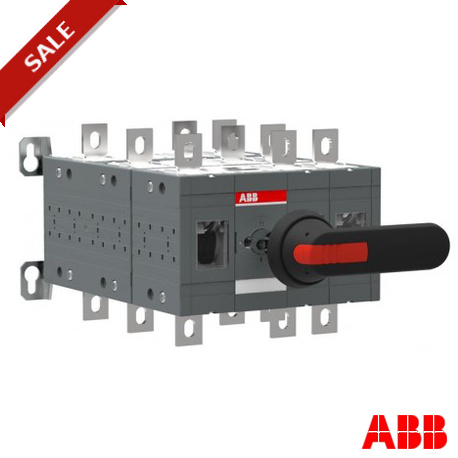

ABB OT315E12YP OT315E12YP 1SCA123585R1001 ABB OT315E12YP BY-PASS SWITCH View larger
Images are for illustrative purposes only. Please refer to data sheet for details

OT315E12YP 1SCA123585R1001 ABB OT315E12YP BY-PASS SWITCH

OT315E12YP

1SCA123585R1001

ABB

1 Pcs.

OT315E12YP BY-PASS SWITCH Manual Bypass Switch OT315E12YP

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Facilitating seamless source switching during maintenance cycles, the OT315E12YP ABB by-pass switch ensures continuous power delivery across critical electrical installations. Facilities depend on manual bypass configurations to isolate sensitive equipment without dropping active loads.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Data Sheet, Technical Information: 1SCC301020C0201
  • Rated Operational Current AC-21A (I e ): (380 ... 415 V) 315 A (500 V) 315 A (690 V) 315 A
  • Rated Operational Current AC-22A (I e ): (380 ... 415 V) 315 A (500 V) 315 A (690 V) 315 A
  • Rated Operational Current AC-23A (I e ): (380 ... 415 V) 315 A (500 V) 315 A (690 V) 315 A
  • Rated Operational Power AC-23A (P e ): (380 ... 415 V) 160 kW (500 V) 220 kW (690 V) 315 kW
  • Conventional Free-air Thermal Current (I th ): q = 40 °C 315 A
  • Conventional Thermal Current (I the ): Fully Enclosed 315 A
  • Rated Impulse Withstand Voltage (U imp ): 12 kV
  • Rated Insulation Voltage (U i ): 1000 V
  • Rated Operational Voltage: 1000 V
  • Rated Short-time Withstand Current (I cw ): for 1 s 15 kiloampere rms
  • Power Loss: 6.5 W
  • Pollution Degree: 3
  • Handle Type: Handle and shaft included
  • Switches Operating Mechanism: Mechanism Between the Poles 12 (Between the Poles)
  • Distance Between Phases: Standard

More info

▲

Including a black plastic IP65 I-0-II pistol type handle and a handle extension for enabling smooth manual operation, shaft and bolt set for the cable connection. The handle extension is snap-on mounted on the standard handle for manual operation. The handle extension shall be removed when padlocking the standard handle. Handle padlockable in the 0-position, door interlock in the I- and II-positions and when padlocked.

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85365080

Popular Downloads

  • Data Sheet, Technical Information:
    1SCC301020C0201

Dimensions

  • Product Net Width:
    240mm
  • Product Net Height:
    185mm
  • Product Net Depth:
    306mm
  • Product Net Weight:
    10.1kg

Technical

  • Rated Operational Current AC-21A (Ie):
    (380 ... 415 V) 315 A
    (500 V) 315 A
    (690 V) 315 A
  • Rated Operational Current AC-22A (Ie):
    (380 ... 415 V) 315 A
    (500 V) 315 A
    (690 V) 315 A
  • Rated Operational Current AC-23A (Ie):
    (380 ... 415 V) 315 A
    (500 V) 315 A
    (690 V) 315 A
  • Rated Operational Power AC-23A (Pe):
    (380 ... 415 V) 160 kW
    (500 V) 220 kW
    (690 V) 315 kW
  • Conventional Free-air Thermal Current (Ith):
    q = 40 °C 315 A
  • Conventional Thermal Current (Ithe):
    Fully Enclosed 315 A
  • Rated Impulse Withstand Voltage (Uimp):
    12 kV
  • Rated Insulation Voltage (Ui):
    1000 V
  • Rated Operational Voltage:
    1000 V
  • Rated Short-time Withstand Current (Icw):
    for 1 s 15 kiloampere rms
  • Power Loss:
    6.5 W
  • Pollution Degree:
    3
  • Handle Type:
    Handle and shaft included
  • Switches Operating Mechanism:
    Mechanism Between the Poles
    12 (Between the Poles)
  • Distance Between Phases:
    Standard
  • Position of Line Terminals:
    Top In - Bottom Out, Bottom In - Top Out
  • Operating Mode:
    Front operated
  • Mounting Type:
    Base mounting
  • Number of Poles:
    3

Certificates and Declarations (Document Number)

  • Declaration of Conformity - CE:
    1SCC301195D0202
  • Instructions and Manuals:
    1SCC301080M0003

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    205 mm
  • Package Level 1 Length:
    360 mm
  • Package Level 1 Height:
    330 mm
  • Package Level 1 Gross Weight:
    10.1 kg
  • Package Level 1 EAN:
    6417019543697

Classifications

  • Object Classification Code:
    Q
  • ETIM 5:
    EC000216 - Switch disconnector
  • ETIM 6:
    EC000216 - Switch disconnector
