> ABB > Manual Switches > 106419

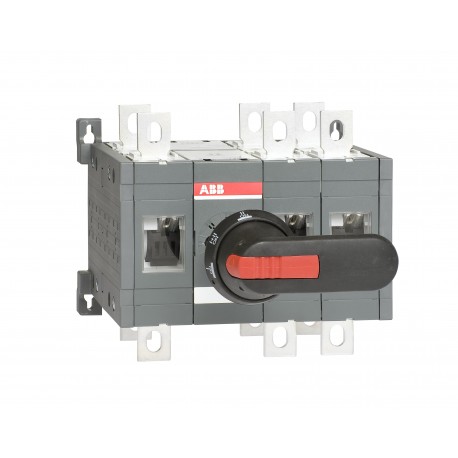

ABB 1SCA106419R1001 1SCA106419R1001 ABB Switch switch I-II OT315E12CLP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA106419R1001 ABB Switch switch I-II OT315E12CLP

1SCA106419R1001

106419

ABB

1 Pcs.

Switch switch I-II OT315E12CLP I-II OT315E12CLP Switch OT315E12CLP CHANGE-OVER SWITCH

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
End Of Life Disassembling Instructions1SCC303051M0201
Environmental Information1SCC303050D0201
Environmental Product Declaration - EPD1SCC303086D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Popular Downloads
Data Sheet, Technical Information1SCC303003C0201
Instructions and Manuals1SCC303008M0208
Environmental Product Declaration - EPD1SCC303086D0201
Environmental
Degree of ProtectionFront IP20
Environmental Information1SCC303050D0201
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width221 mm
8.7 in
Product Net Height185 mm
7.28 in
Product Net Depth / Length203 mm
7.99 in
Product Net Weight6 kg
13.23 lb
Container Information
Package Level 1 Unitsbox 1 box
Package Level 1 Width240 mm
9.45 in
Package Level 1 Depth / Length270 mm
10.63 in
Package Level 1 Height218 mm
8.58 in
Package Level 1 Gross Weight6.41 kg
14.13 lb
Package Level 1 EAN6417019402161
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 315 A
Conventional Thermal Current (Ithe)Fully Enclosed 315 A
Degree of ProtectionFront IP20
Distance Between PhasesStandard
Handle ColorBlack
Handle TypeHandle and shaft included
Mounting TypeBase mounting
Number of Poles3P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out, Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 6.5 W
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 315 A
(500 V) 315 A
(690 V) 315 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 315 A
(500 V) 315 A
(690 V) 315 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 315 A
(500 V) 315 A
(690 V) 315 A
Rated Operational Current AC-31B (Ie)(380 ... 415 V) 315 A
Rated Operational Current AC-33B (Ie)(380 ... 415 V) 315 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 160 kW
(500 V) 220 kW
(690 V) 315 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 15 kiloampere rms
Switches Operating MechanismMechanism Between the Poles
12 (Between the Poles)
Terminal TypeScrew Terminals
Tightening Torqueacc. IEC 60947-1 30 ... 44 N·m
Transition TypeClosed
Technical UL/CSA
Tightening Torqueacc. IEC 60947-1 30 ... 44 N·m
Certificates and Declarations
Declaration of Conformity - CE1SCC303046D2702
DNV Certificate1SCC303138D0201
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3641619
