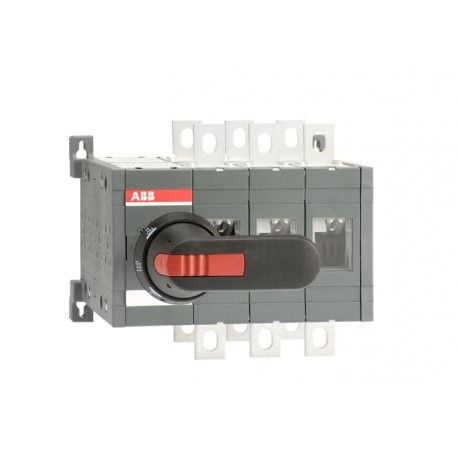

1SCA108630R1001 ABB Switch switch I-II OT315E03CLP
1SCA108630R1001
108630
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered as an ABB Switch switch I-II OT315E03CLP, this changeover switch facilitates the manual transfer of electrical loads between two independent power sources or circuit configurations. Industrial plants utilize such changeover devices to route supply lines safely without cross-connection risks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- End Of Life Disassembling Instructions: 1SCC303051M0201
- Environmental Information: 1SCC303050D0201
- Environmental Product Declaration - EPD: 1SCC303086D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Data Sheet, Technical Information: 1SCC303003C0201
- Instructions and Manuals: 1SCC303008M0208
- Degree of Protection: Front IP20
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country or Territory of Origin: Finland
More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC303051M0201 |
| Environmental Information | 1SCC303050D0201 |
| Environmental Product Declaration - EPD | 1SCC303086D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC303003C0201 |
| Instructions and Manuals | 1SCC303008M0208 |
| Environmental Product Declaration - EPD | 1SCC303086D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Environmental Information | 1SCC303050D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 221 mm |
| 8.7 in | |
| Product Net Height | 185 mm |
| 7.28 in | |
| Product Net Depth / Length | 203 mm |
| 7.99 in | |
| Product Net Weight | 6 kg |
| 13.23 lb | |
| Container Information | |
| Package Level 1 Units | box 1 box |
| Package Level 1 Width | 240 mm |
| 9.45 in | |
| Package Level 1 Depth / Length | 270 mm |
| 10.63 in | |
| Package Level 1 Height | 218 mm |
| 8.58 in | |
| Package Level 1 Gross Weight | 6.41 kg |
| 14.13 lb | |
| Package Level 1 EAN | 6417019401621 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 315 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 315 A |
| Degree of Protection | Front IP20 |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 315 A |
| (500 V) 315 A | |
| (690 V) 315 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 315 A |
| (500 V) 315 A | |
| (690 V) 315 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 315 A |
| (500 V) 315 A | |
| (690 V) 315 A | |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 315 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 315 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 160 kW |
| (500 V) 220 kW | |
| (690 V) 315 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kiloampere rms |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 03 (Left Side) | |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 30 ... 44 N·m |
| Transition Type | Closed |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 30 ... 44 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC303046D2702 |
| DNV Certificate | 1SCC303138D0201 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3641618 |
