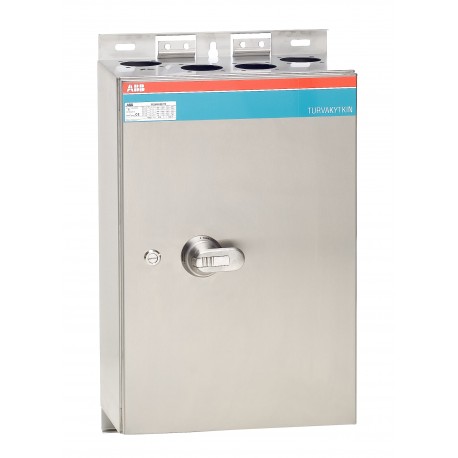

1SCA102364R1001 ABB OT250ERRR3TZ Safety switch
1SCA102364R1001
102364
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for demanding industrial environments, the ABB OT250ERRR3TZ safety switch protects personnel and equipment by cutting off power during servicing operations. Safety disconnectors are commonly mounted close to large electric motors and processing equipment to ensure compliant lockout-tagout procedures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC340076D0201
- RoHS Declaration: 1SCC340075D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: 5068483a-7b48-435b-9272-52aec57e2bcf Finland
- Simplified SCIP: 76ed4de8-2b2d-4651-9ea5-040dd8ee0b28 Germany
- Toxic Substances Control Act - TSCA: 1SCC340095D0201
- Data Sheet, Technical Information: 1SCC340015C0201
- Instructions and Manuals: 1SCC340008M0004
- Mechanical Drawings: OTRK604023P4R25.stp
- Degree of Protection: acc. to IEC 60529 IP65
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85363090 Country or Territory of Origin: Finland
- Product Net Width: 400 mm
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 5068483a-7b48-435b-9272-52aec57e2bcf Finland |
| Simplified SCIP | 76ed4de8-2b2d-4651-9ea5-040dd8ee0b28 Germany |
| 2e0365f8-c2ea-4aac-9e40-4621647698b0 Norway | |
| a8c19abf-f107-4bb4-b871-07dacf06a9a0 Denmark | |
| e8e1264a-a4e5-4e69-b51c-96f9be1ba3ae Germany | |
| fc90649a-9aaf-4a1f-b10e-15faa760fee3 France | |
| 4778e6d6-189c-4e60-a672-dadc1ecada40 France | |
| 46a93838-32bc-4086-b823-d79465683f34 Poland | |
| 3312d390-df58-4ac2-91d6-9987f302cbea Netherlands | |
| fc08064a-24bc-40aa-9eb3-cff2977a96c9 Hungary | |
| 02ffb9d7-e3f6-4db0-8667-bd1fa1cda505 Sweden | |
| ce7a9db5-ab92-4b17-9f96-fe01c35cadf3 Bulgaria | |
| 67087d34-25d0-4eb9-9bd6-297aaa44de07 Poland | |
| 85c93d29-1971-4483-86cd-5df8a2c24b7a Portugal | |
| 31380955-244e-45d3-9807-5f278e826164 Estonia | |
| 7d34cf2c-a3fe-490f-9d84-01a4a4cbd896 Sweden | |
| 6c0338dc-05fe-4780-b7f2-dc05fcfb9054 Greece | |
| 79194cea-9b13-4e89-aaeb-4440ea608484 Germany | |
| 77c259f2-cccc-40fb-b13c-ecef8c5f33e4 Belgium | |
| 4834aeff-5300-4941-bba3-c68703be1e88 Italy | |
| dbee7f3a-0303-4bfb-9ce0-8991a6ad88a9 Hungary | |
| 45cbca02-d612-4406-a3b8-af73a3338559 Poland | |
| 9183b689-305e-43c2-a6b2-b20e236a5e61 Germany | |
| c1a444f0-0058-49f7-849d-20aae1b979db Germany | |
| 09eca7cf-6117-4c51-ae07-304b74d5c5d8 Czech Republic | |
| 90af418a-c636-4827-a58e-33986b577989 Belgium | |
| af61fdaf-4287-4bd5-ae2f-0877e7dadc16 Croatia | |
| 91396812-1067-4de0-83d8-b999532b3b82 Spain | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340008M0004 |
| Mechanical Drawings | OTRK604023P4R25.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 400 mm |
| Product Net Height | 600 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 24.01 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 710 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 25.7 kg |
| Package Level 1 EAN | 6417019371405 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 4xring-flange+ø25.5mm / 4xring-flange+ø25.5mm |
| Color | Stainless |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm |
| Screw Clamp / PE Terminal 4pc,10 ... 70+4pc M8 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Stainless steel |
| Handle Color | Stainless Steel |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 2 NO, 1 NC |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 132 kW |
| (500 V) 160 kW | |
| (690 V) 200 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 |
| Special Functions | EMC |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 22 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M8 |
| Tightening Torque | Main Circuit 22 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340025D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| E-Number (Finland) | 3642108 |
| E-Number (Sweden) | 3135028 |
