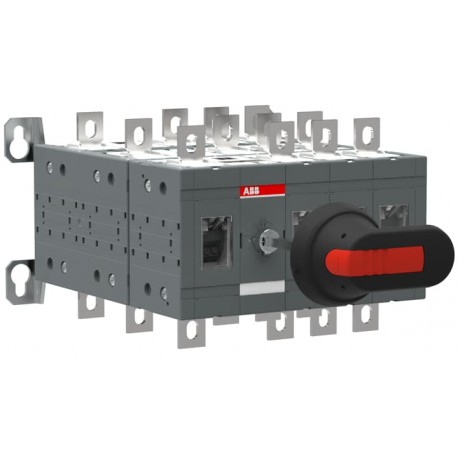

1SCA123571R1001 ABB OT250E13YP BY-PASS SWITCH
1SCA123571R1001
123571
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for high-reliability electrical distribution, the Abb OT250E13YP BY-PASS SWITCH directs power flows between alternate circuits seamlessly within complex industrial installations. Changeover and bypass switches are commonly deployed in critical power architectures to ensure continuous operation during maintenance or source switching. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Information: 1SCC011020D0201
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country of Origin: Finland (FI)
- Data Sheet, Technical Information: 1SCC303003C0201
- Instructions and Manuals: 1SCC301080M0003
- Product Net Width: 229 mm
- Product Net Height: 150 mm
- Product Net Depth / Length: 236 mm
- Product Net Weight: 6.05 kg
- Rated Operational Current AC-21A (I e ): (380 ... 415 V) 250 A
- Rated Operational Current AC-22A (I e ): (380 ... 415 V) 250 A
- Rated Operational Current AC-23A (I e ): (380 ... 415 V) 250 A
- Rated Operational Power AC-23A (P e ): (380 ... 415 V) 140 kW
More info
▲| Circular Value | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Information | 1SCC011020D0201 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC303003C0201 |
| Instructions and Manuals | 1SCC301080M0003 |
| Dimensions | |
| Product Net Width | 229 mm |
| Product Net Height | 150 mm |
| Product Net Depth / Length | 236 mm |
| Product Net Weight | 6.05 kg |
| 13.34 lb | |
| Technical | |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 140 kW |
| (500 V) 170 kW | |
| (690 V) 250 kW | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 250 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Power Loss | 6.5 W |
| Pollution Degree | 3 |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Switches Operating Mechanism | Mechanism Between the Poles |
| 13 (Between the Poles) | |
| Distance Between Phases | Standard |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Operating Mode | Front operated |
| Mounting Type | Base mounting |
| Number of Poles | 4 |
| Degree of Protection | Front IP20 |
| Transition Type | Open |
| Environmental | |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC301194D0202 |
| REACH Declaration | 1SCC011021D0201 |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 175 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Gross Weight | 6.56 kg |
| 14.46 lb | |
| Package Level 1 EAN | 6417019543550 |
| Classifications | |
| Object Classification Code | Q |
| ETIM 7 | EC000216 - Switch disconnector |
| ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
