View larger
Images are for illustrative purposes only. Please refer to data sheet for details

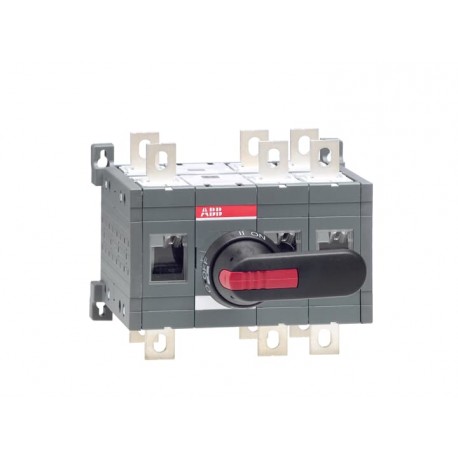

1SCA022776R9320 ABB OT250E12CP CHANGE-OVER SWITCH
1SCA022776R9320
022776
ABB
1 Pcs.
OT250E12CP CHANGE-OVER SWITCH
Switch switch OT250E12CP
Connectors > Switch disconnector
OT_C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC303050M0201 |
| Environmental Information | 1SCC303050D0201 |
| Environmental Product Declaration - EPD | 1SCC303082D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 770fc043-2a88-45b9-8c7d-2cac931a771d Finland |
| Simplified SCIP | 726b6165-ae72-4e49-b023-05c8a1bad13f Germany |
| cd212fd1-27d0-494e-ab3c-f0f353178bbd Germany | |
| aae6f333-6412-4cec-b3b9-42d9eaeb3ffd Croatia | |
| 2ffdee48-0d40-4fa7-be3a-888cfdfcf2c0 Czech Republic | |
| fba5bd8f-9f19-4320-a2b5-e1a41649a3a4 Spain | |
| 87d77197-983f-40c7-a19d-efa40d4ff305 Bulgaria | |
| 3c64b67a-b37b-4027-983a-d643ffcb48c7 Sweden | |
| 0e5a86c4-9282-409c-be4f-3bd151658231 France | |
| 9c9da9d1-984c-44ca-86eb-730b9bb251aa Italy | |
| c47583d8-648e-4b15-b335-a811d3d1f0ac Belgium | |
| fc4870ce-e3ba-435a-9366-17fd83add7df Norway | |
| 46a9e811-a76a-4be3-b1e4-373a33a1c8ef Poland | |
| afb0bded-d1c5-4ba9-a8d7-b5c051a5def1 Sweden | |
| 3e534839-e563-4ec3-b87b-b262155dd9e4 Germany | |
| 8f141ff0-7a81-4604-a501-57e380fba891 Germany | |
| 871d0000-cf2d-484d-9dbd-bacd8b778ea6 Hungary | |
| aa3993e9-1ff6-4033-ba39-13efd83d6e06 Hungary | |
| ffe5e049-dfef-4c07-9539-1168ad7a1ac0 Portugal | |
| e839726c-db74-4db0-9b46-695935cb18aa Greece | |
| eec22afe-928a-458b-b3c0-b00d47f7dbc7 Estonia | |
| 8cd2e15c-994e-4df6-98d5-a3ebba45ec44 Poland | |
| d2a8a6a9-6a46-49b7-b34a-fe6cbe821fb9 Belgium | |
| c0108d62-90e0-4d7d-8095-7d1971045aae Netherlands | |
| d44fa266-0e5a-47e9-badd-158b8aa30677 Poland | |
| 47cb7244-9c5e-4040-bbb7-77c0e9403fb9 France | |
| b4ce9681-8515-4741-a2fe-c5db4da16f2b Germany | |
| 0346b1a1-bdfe-4de2-903b-13ea587ceb67 Denmark | |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC303003C0201 |
| Instructions and Manuals | 1SCC303008M0208 |
| Environmental Product Declaration - EPD | 1SCC303082D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Environmental Information | 1SCC303050D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 170 mm |
| 6.69 in | |
| Product Net Height | 150 mm |
| 5.91 in | |
| Product Net Depth / Length | 160 mm |
| 6.3 in | |
| Product Net Weight | 3.1 kg |
| 6.83 lb | |
| Container Information | |
| Package Level 1 Units | box 1 box |
| Package Level 1 Width | 160 mm |
| 6.3 in | |
| Package Level 1 Depth / Length | 245 mm |
| 9.65 in | |
| Package Level 1 Height | 185 mm |
| 7.28 in | |
| Package Level 1 Gross Weight | 3.4 kg |
| 7.5 lb | |
| Package Level 1 EAN | 6417019270173 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 250 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Degree of Protection | Front IP20 |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 250 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 250 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 140 kW |
| (500 V) 170 kW | |
| (690 V) 250 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Switches Operating Mechanism | Mechanism Between the Poles |
| 12 (Between the Poles) | |
| Terminal Type | Screw Terminals |
| Terminal Width | 20 mm |
| Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m |
| Transition Type | Open |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC303001D2704 |
| DNV Certificate | 1SCC303138D0201 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3641512 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current at AC-23, 400 V (EF011777) | 250 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 250 A |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 140 kW |
| Switching power at 400 V (EF009166) | 140 kW |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Built-in device plug-in technique |
| Suitable for front mounting 4-hole (EF007247) | Yes |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Other |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Degree of protection (NEMA) (EF011959) | 1 |
