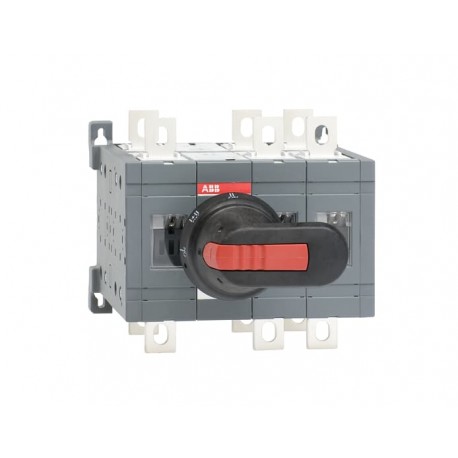

ABB 1SCA108611R1001 1SCA108611R1001 ABB Switch switch I-II OT250E12CLP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA108611R1001 ABB Switch switch I-II OT250E12CLP

1SCA108611R1001

108611

ABB

1 Pcs.

Switch switch I-II OT250E12CLP I-II OT250E12CLP Switch OT250E12CLP CHANGE-OVER SWITCH

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB change-over switch allows electrical systems to manually toggle between two separate power sources or circuit paths without interruption risks. These multi-position switches are commonly integrated into backup generator setups and dual-feed distribution panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • End Of Life Disassembling Instructions: 1SCC303050M0201
  • Environmental Information: 1SCC303050D0201
  • Environmental Product Declaration - EPD: 1SCC303082D0201
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Data Sheet, Technical Information: 1SCC303003C0201
  • Instructions and Manuals: 1SCC303008M0208
  • Degree of Protection: Front IP20
  • Pollution Degree: 3
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85365080
  • Country or Territory of Origin: Finland

More info

▲
ABB EcoSolutions
End Of Life Disassembling Instructions1SCC303050M0201
Environmental Information1SCC303050D0201
Environmental Product Declaration - EPD1SCC303082D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Popular Downloads
Data Sheet, Technical Information1SCC303003C0201
Instructions and Manuals1SCC303008M0208
Environmental Product Declaration - EPD1SCC303082D0201
Environmental
Degree of ProtectionFront IP20
Environmental Information1SCC303050D0201
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width170 mm
6.69 in
Product Net Height150 mm
5.91 in
Product Net Depth / Length160 mm
6.3 in
Product Net Weight3.12 kg
6.88 lb
Container Information
Package Level 1 Unitsbox 1 box
Package Level 1 Width186 mm
7.32 in
Package Level 1 Depth / Length300 mm
11.81 in
Package Level 1 Height185 mm
7.28 in
Package Level 1 Gross Weight3.39 kg
7.47 lb
Package Level 1 EAN6417019399416
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 250 A
Conventional Thermal Current (Ithe)Fully Enclosed 250 A
Degree of ProtectionFront IP20
Distance Between PhasesStandard
Handle ColorBlack
Handle TypeHandle and shaft included
Mounting TypeBase mounting
Number of Poles3P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out, Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 6.5 W
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-31B (Ie)(380 ... 415 V) 250 A
Rated Operational Current AC-33B (Ie)(380 ... 415 V) 250 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 140 kW
(500 V) 170 kW
(690 V) 250 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 8 kiloampere rms
Switches Operating MechanismMechanism Between the Poles
12 (Between the Poles)
Terminal TypeScrew Terminals
Tightening Torqueacc. IEC 60947-1 15 ... 22 N·m
Transition TypeClosed
Technical UL/CSA
Tightening Torqueacc. IEC 60947-1 15 ... 22 N·m
Certificates and Declarations
Declaration of Conformity - CE1SCC303045D2702
DNV Certificate1SCC303138D0201
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3641613

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
