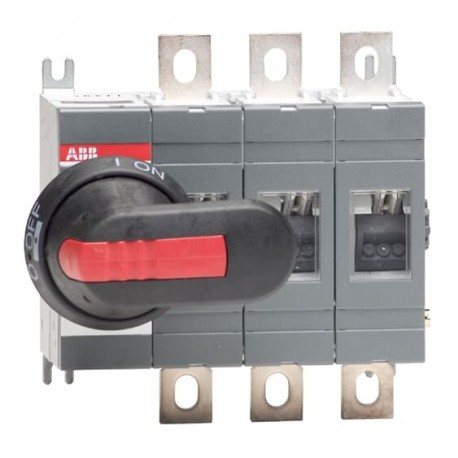

ABB 1SCA022710R0520 1SCA022710R0520 ABB OT250E04P switch-disconnector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA022710R0520 ABB OT250E04P switch-disconnector

1SCA022710R0520

022710

ABB

1 Pcs.

OT250E04P switch-disconnector OT250E04P disconnect switch OT250E04P SWITCH-DISCONNECTOR

Connectors > Switch disconnector
OT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
End Of Life Disassembling Instructions1SCC301117M0201
Environmental Information1SCC301265D0201
Environmental Product Declaration - EPD1SCC301282D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIPeac2d80f-b210-4844-ad4c-4f853e43264a Finland
Simplified SCIPdba69655-fcb1-45a4-a021-d9694a3c0eae Germany
3c6137dc-7592-401b-9653-c70e7d52e9d8 Sweden
bf15845d-836c-47df-a8a9-421e1d2f00a8 Poland
781ccd4e-18ee-408a-b5ff-fbdb408705e7 Germany
3782c935-5d36-49f5-b248-a3d68ee490f0 Portugal
7abc1994-285a-4539-a1aa-b7da6a4f2c55 Greece
875341f9-7962-4709-aa11-987681c87542 Estonia
79739939-3860-40f7-8dc2-12f3907fedde Norway
8519f8a5-1ef8-438c-83c5-861fc4828372 Belgium
5cc14eac-8da0-4d86-806b-f82c606e92ca Poland
18baa90b-66c1-4a3e-bd99-004300a69f9a Spain
f2fe1df8-7f85-4cc5-9427-025e065e3087 Belgium
24a15d41-963b-4037-9a6d-e494dbb63b96 Sweden
c66ea3e9-ff82-4645-a7fb-346f5b3f96af Bulgaria
0b02675d-2090-495e-b48b-9605682209ea Hungary
8a204d29-15d2-43ee-bb71-6eb5d9d476da Czech Republic
c40b06b0-2278-4947-84e8-3bbf5ffe2d9c Croatia
d2bf8e40-5a09-4202-8517-c3b27c1b25ed Germany
26a466c4-2ba7-4643-8171-352a04c635c8 Denmark
0b365acb-d6dc-4dc9-b008-e545e8457b87 Germany
5ce3d20a-46c7-460e-bd89-613ba6b6d81e Italy
c5bc694d-67ca-48c9-b923-80902d55575b Hungary
b52158b7-eea0-4556-a534-c0117b82ee5a Netherlands
f31267f8-49b9-4908-a643-bddffad29105 France
1e67e90e-49d8-4eb0-bbd9-6ea554b73b5a France
4d07e844-4b9d-4c0f-beb1-a7321e86f56f Germany
841ecd3b-0a37-4322-b032-a720896c97f9 Poland
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC301031M0220
Mechanical Drawings1SCC301392F0001
1SCC301201F0001
OT200-250E04.igs
Environmental Product Declaration - EPD1SCC301282D0201
Environmental
Degree of ProtectionFront IP00
Environmental Information1SCC301265D0201
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width180.5 mm
Product Net Height150 mm
Product Net Depth / Length82.5 mm
Product Net Weight1.9 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width170 mm
6.69 in
Package Level 1 Depth / Length190 mm
7.48 in
Package Level 1 Height145 mm
5.71 in
Package Level 1 Gross Weight2.1 kg
0.93 lb
Package Level 1 EAN6417019225982
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 250 A
Conventional Thermal Current (Ithe)Fully Enclosed 250 A
Degree of ProtectionFront IP00
Distance Between PhasesStandard
Fourth Pole PositionRight Side
Fourth Pole TypeSwitched - Simultaneous Function
Handle ColorBlack
Handle TypeHandle and shaft included
Mechanical Durability20000
Mounting TypeBase mounting
Number of Poles4P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 6.5 W
Rated Conditional Short-Circuit Current (Inc)(315 A fuse, 500 V) 100 kA
(355 A fuse, 690 V) 80 kA
(250 A fuse, 690 V) 100 kA
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 75 kW
(400 ... 415 V) 145 kW
(500 V) 170 kW
(690 V) 250 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 8 kA
Special FunctionsNo
StandardsIEC 60947-3
Switches Operating MechanismMechanism at the End of the Switch
04 (Left Side)
Terminal TypeLug terminals
Terminal Width20 mm
Tightening Torqueacc. IEC 60947-1 15 … 22 N·m
Technical UL/CSA
Tightening Torqueacc. IEC 60947-1 15 … 22 N·m
Certificates and Declarations
A2L Certificate – IEC1SCC301337D0201
ATEX CertificateNo certification needed
BV Certificate1SCC301103D0201
Declaration of Conformity - CE1SCC301131D2705
DNV GL Certificate1SCC301174D0204
GL Certificate1SCC301139D0201
LR Certificate1SCC301144D0201
UL CertificateNo certification needed
VDE CertificateNo certification needed
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3661354
E-Number (Norway)4337857
E-Number (Sweden)3171163
