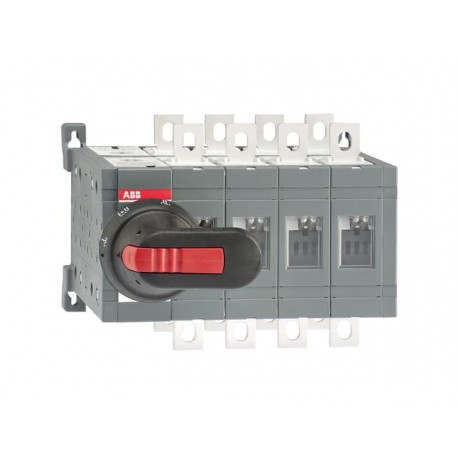

ABB 1SCA108605R1001 1SCA108605R1001 ABB Switch switch I-II OT250E04CLP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA108605R1001 ABB Switch switch I-II OT250E04CLP

1SCA108605R1001

108605

ABB

1 Pcs.

Switch switch I-II OT250E04CLP I-II OT250E04CLP Switch OT250E04CLP CHANGE-OVER SWITCH

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
End Of Life Disassembling Instructions1SCC303050M0201
Environmental Information1SCC303050D0201
Environmental Product Declaration - EPD1SCC303082D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIPf6dafe6a-ad13-4288-8e68-6b04f6bd97e8 Finland
Simplified SCIPcad23b8d-d9a0-4f63-a5fc-6f12ff6f1b2a Germany
6366c278-5fac-49e5-8999-ea49a9826eef Belgium
c4a9220a-b58b-4221-87bb-cbcd4e87a47c Italy
909f4cd2-1f71-4063-947e-f128980e1e51 Netherlands
f2c0cda0-3667-4669-8eda-4fe070fd8536 Norway
21bc6da8-bc33-4a8d-87f6-8f571f0a08d3 Spain
6731745c-09ee-4361-9881-0e600d184322 Denmark
3c488568-22e4-4392-baf6-4314c49bd884 Poland
25fc13f9-19c3-44a7-9eb9-ea3a4cc8ffa4 Poland
971b4e03-7465-4722-ab04-423e34268eec Belgium
ef438e47-f39e-4560-9f33-715cd792e5bd Portugal
44d15823-04b6-480b-ba9b-8a35719fa571 Greece
98b0982e-d9d7-4ffb-9a14-dfe788a98d8a France
972aa906-8d02-41cb-80d1-05eba2d46548 Poland
99597c5b-bda2-4cb3-a33f-58a80b1fceba Germany
e2c93d2a-57f8-4c9b-9d20-bc46c392b7af Sweden
8786b8ac-8ba3-4513-bc68-6474f518b0c7 Germany
fa2385e1-bf94-471f-88d8-4b8644adc57c Germany
887c55f7-e072-4d1e-bd3e-56359a652844 Germany
94960399-cf82-4bfc-bc4e-32b181ac1d38 Sweden
50b8abd2-4658-4036-8bb3-66daf3909a0b Estonia
6578addd-237a-4193-a287-5b26f3888fd1 Hungary
71167b7c-3935-4bfd-ab2a-408f8f285671 France
2e0c05f6-b4db-4e39-838a-eac8172b3c82 Czech Republic
379551bb-08f8-4a1d-930c-a55458886973 Hungary
e19e492f-2f6a-458a-ae8c-ca4d7cdda0b8 Croatia
86b8b13b-f9be-4783-8df8-974bc0512f37 Bulgaria
Popular Downloads
Data Sheet, Technical Information1SCC303003C0201
Instructions and Manuals1SCC303008M0208
Environmental Product Declaration - EPD1SCC303082D0201
Environmental
Degree of ProtectionFront IP20
Environmental Information1SCC303050D0201
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width205 mm
8.07 in
Product Net Height150 mm
5.91 in
Product Net Depth / Length160 mm
6.3 in
Product Net Weight3.8 kg
8.38 lb
Container Information
Package Level 1 Unitsbox 1 box
Package Level 1 Width186 mm
7.32 in
Package Level 1 Depth / Length300 mm
11.81 in
Package Level 1 Height185 mm
7.28 in
Package Level 1 Gross Weight4.1 kg
9.04 lb
Package Level 1 EAN6417019399478
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 250 A
Conventional Thermal Current (Ithe)Fully Enclosed 250 A
Degree of ProtectionFront IP20
Distance Between PhasesStandard
Fourth Pole PositionRight Side
Fourth Pole TypeSwitched - Simultaneous Function
Handle ColorBlack
Handle TypeHandle and shaft included
Mounting TypeBase mounting
Number of Poles4P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out, Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 6.5 W
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-31B (Ie)(380 ... 415 V) 250 A
Rated Operational Current AC-33B (Ie)(380 ... 415 V) 250 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 140 kW
(500 V) 170 kW
(690 V) 250 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 8 kiloampere rms
Switches Operating MechanismMechanism at the End of the Switch
04 (Left Side)
Terminal TypeScrew Terminals
Tightening Torqueacc. IEC 60947-1 15 ... 22 N·m
Transition TypeClosed
Technical UL/CSA
Tightening Torqueacc. IEC 60947-1 15 ... 22 N·m
Certificates and Declarations
Declaration of Conformity - CE1SCC303045D2702
DNV Certificate1SCC303138D0201
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3641615

ETIM for 1SCA108605R1001 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as maintenance-/service switch (EF006986) Yes
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Max. rated operation voltage Ue AC (EF007355) 1000 V
Rated operating voltage (EF001435) 1000 V
Rated permanent current at AC-23, 400 V (EF011777) 250 A
Rated permanent current at AC-21, 400 V (EF009165) 250 A
Rated short-time withstand current lcw (EF007050) 8 kA
Rated operation power at AC-23, 400 V (EF007027) 140 kW
Switching power at 400 V (EF009166) 140 kW
Number of poles (EF001391) 4
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Built-in device plug-in technique
Suitable for front mounting 4-hole (EF007247) Yes
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) Yes
Suitable for intermediate mounting (EF007264) No
Colour control element (EF007167) Black
Type of control element (EF006976) Long turning handle
Interlockable (EF006281) Yes
Type of electrical connection of main circuit (EF006819) Other
Degree of protection (IP), front side (EF003118) IP20
Degree of protection (NEMA) (EF011959) 1
