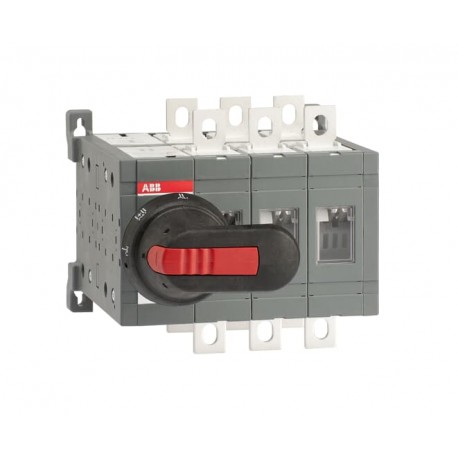

ABB 1SCA108593R1001 1SCA108593R1001 ABB Switch switch I-II OT250E03CLP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA108593R1001 ABB Switch switch I-II OT250E03CLP

1SCA108593R1001

108593

ABB

1 Pcs.

Switch switch I-II OT250E03CLP I-II OT250E03CLP Switch OT250E03CLP CHANGE-OVER SWITCH

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
End Of Life Disassembling Instructions1SCC303050M0201
Environmental Information1SCC303050D0201
Environmental Product Declaration - EPD1SCC303082D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP79b878d4-504d-475e-91c2-016f2f3998ed Finland
Simplified SCIP2c33ea20-90b7-4b85-8219-510dd8fca46b Germany
b48b20e8-cf85-4a7e-bf95-7bddfe3464af Estonia
1c072847-49fa-4b31-a714-ed0e5ad30b65 Hungary
b3b313df-93ef-40d6-ae0e-41f85bcbd378 Norway
aa497b80-9933-46f4-9e45-e1df49e9d991 Italy
d5d4ab9f-8535-495e-834e-57a05ae548ea Bulgaria
032bd052-8d6c-43dc-9d2b-5362d681df90 Czech Republic
913db524-1cdd-4f46-96d3-e18ebc89e104 Croatia
203200c2-9f0b-47b7-9243-8efefda19c7e Poland
0e029799-7711-4b7d-ab59-697e0cc1695b Sweden
0a77f31d-b298-433e-8160-d1c6c3a1cd76 France
e0d0f4d3-ea77-426d-b43b-7450189611b3 Poland
7a48932f-5d82-45cd-8375-2cfd0c5bc678 Greece
32a59bb9-5020-43eb-b656-1b871ca52db8 Portugal
1a5a5e61-9dde-4ce5-ba56-70bd698081fb Hungary
6b94bf32-c6d8-4af0-b2b6-e017d695b8c4 France
12c74f53-d2da-44be-93a4-4d8411979579 Denmark
0f6369bf-7e53-4407-bde0-e653b19ebf21 Germany
99dfc603-37f0-4fe2-b79c-ad61a254ca26 Germany
eaaea414-f205-47d5-80ae-e14fe04f4b92 Germany
83e28c32-64fa-4f1b-a148-7e2a0b68084c Poland
13cd8a15-9f55-4bec-8e93-bea540f64388 Belgium
7daa0011-acee-4014-926b-9a1b3209f2cc Netherlands
4afc53c7-15db-4add-bb9e-868c68834150 Belgium
f189c0a9-f4b3-4b8c-bc4a-bf5ef0e39b5c Spain
7c98d324-ad56-4d43-b5b2-597724d26582 Germany
ef6c8e64-bfc2-4c48-bf7e-bed3c6573f46 Sweden
Popular Downloads
Data Sheet, Technical Information1SCC303003C0201
Instructions and Manuals1SCC303008M0208
Environmental Product Declaration - EPD1SCC303082D0201
Environmental
Degree of ProtectionFront IP20
Environmental Information1SCC303050D0201
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width170 mm
6.69 in
Product Net Height150 mm
5.91 in
Product Net Depth / Length160 mm
6.3 in
Product Net Weight3.12 kg
6.88 lb
Container Information
Package Level 1 Unitsbox 1 box
Package Level 1 Width186 mm
7.32 in
Package Level 1 Depth / Length300 mm
11.81 in
Package Level 1 Height185 mm
7.28 in
Package Level 1 Gross Weight3.39 kg
7.47 lb
Package Level 1 EAN6417019399522
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 250 A
Conventional Thermal Current (Ithe)Fully Enclosed 250 A
Degree of ProtectionFront IP20
Distance Between PhasesStandard
Handle ColorBlack
Handle TypeHandle and shaft included
Mounting TypeBase mounting
Number of Poles3P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out, Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 6.5 W
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-31B (Ie)(380 ... 415 V) 250 A
Rated Operational Current AC-33B (Ie)(380 ... 415 V) 250 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 140 kW
(500 V) 170 kW
(690 V) 250 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 8 kiloampere rms
Switches Operating MechanismMechanism at the End of the Switch
03 (Left Side)
Terminal TypeScrew Terminals
Tightening Torqueacc. IEC 60947-1 15 ... 22 N·m
Transition TypeClosed
Technical UL/CSA
Tightening Torqueacc. IEC 60947-1 15 ... 22 N·m
Certificates and Declarations
Declaration of Conformity - CE1SCC303045D2702
DNV Certificate1SCC303138D0201
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
IDEA Granular Category Code (IGCC)5290 >> Disconnect switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3641612

ETIM for 1SCA108593R1001 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as maintenance-/service switch (EF006986) Yes
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Max. rated operation voltage Ue AC (EF007355) 1000 V
Rated operating voltage (EF001435) 1000 V
Rated permanent current at AC-23, 400 V (EF011777) 250 A
Rated permanent current at AC-21, 400 V (EF009165) 250 A
Rated short-time withstand current lcw (EF007050) 8 kA
Rated operation power at AC-23, 400 V (EF007027) 140 kW
Switching power at 400 V (EF009166) 140 kW
Number of poles (EF001391) 3
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Built-in device plug-in technique
Suitable for front mounting 4-hole (EF007247) Yes
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) Yes
Suitable for intermediate mounting (EF007264) No
Colour control element (EF007167) Black
Type of control element (EF006976) Long turning handle
Interlockable (EF006281) Yes
Type of electrical connection of main circuit (EF006819) Other
Degree of protection (IP), front side (EF003118) IP20
Degree of protection (NEMA) (EF011959) 1
