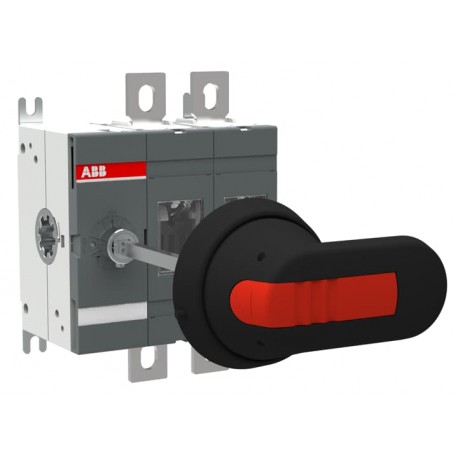

1SCA022735R2500 ABB OT250E02P switch-disconnector
1SCA022735R2500
022735
ABB
1 Pcs.
Connectors > Switch disconnector
OT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB OT250E02P switch-disconnector provides reliable circuit interruption and isolation for industrial power distribution setups. Electrical panels incorporate these switches to safely disconnect downstream equipment during maintenance operations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- End Of Life Disassembling Instructions: 1SCC301117M0201
- Environmental Information: 1SCC301265D0201
- Environmental Product Declaration - EPD: 1SCC301282D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: a4636d15-4dd3-42d5-b291-de7d656f56f3 Finland
- Simplified SCIP: de03b675-b132-4bcf-aba8-059269618ce2 Germany
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC301020C0201
- Instructions and Manuals: 1SCC301031M0220
- Mechanical Drawings: 1SCC301390F0001
- Environmental Product Declaration - EPD: 1SCC301282D0201
- Degree of Protection: Front IP00
- Environmental Information: 1SCC301265D0201
More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC301117M0201 |
| Environmental Information | 1SCC301265D0201 |
| Environmental Product Declaration - EPD | 1SCC301282D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | a4636d15-4dd3-42d5-b291-de7d656f56f3 Finland |
| Simplified SCIP | de03b675-b132-4bcf-aba8-059269618ce2 Germany |
| 7e933068-de69-4243-aee6-39ff01e8f0f6 Poland | |
| bac819d3-5c07-4176-b365-0b947804db7a Portugal | |
| cb4a77da-c7d0-4add-9681-c9a1576bf67d Germany | |
| 5252eaa2-076c-46de-a202-4e7f84cb5564 Estonia | |
| ce787d48-891e-4983-9708-85c24755ec1e Greece | |
| 92019088-ce11-4c63-a8ce-9a2e587be0b1 Bulgaria | |
| b9b234d5-1005-4924-bb4c-d2805c1b3cad Italy | |
| 20f13113-8870-454f-b31f-bca652d718cf Germany | |
| 80a25b89-3412-4590-94d0-296513bd1fee Poland | |
| 2ab104a0-f2d8-497a-992a-8a77e2857d4b Netherlands | |
| f339e36f-3855-42c6-9745-1385960f0056 Sweden | |
| eccd914c-e62e-49c0-98ae-8e2104a82617 Sweden | |
| 780c932a-62de-45ef-a4d2-ba04e54372ef Hungary | |
| 6365bb35-c391-4e30-9220-59068d20647e Belgium | |
| b32aa92a-ceb0-4248-ac6d-4b8ed9e42be2 Spain | |
| cd6863bb-a143-48f4-b510-37d2481b9978 Denmark | |
| d803b011-63cc-421e-87c3-0c9752d4e322 Croatia | |
| 526a7d93-3282-492b-a37d-b3279857fe24 Czech Republic | |
| b3ef2b47-ad99-4f6a-a871-1ce29cf11734 France | |
| 514e0e94-f42e-41c8-8661-7491965db05f Norway | |
| 776bfbc9-723f-494f-bf0c-254f7bba0cf4 Belgium | |
| 5c8e429c-3915-4343-b9ff-d40fb3f73507 Hungary | |
| bf3a184c-02b5-426c-9119-3ef7d3b43a35 Germany | |
| 375b2775-7fa0-410a-8d92-7e40bfaebbda France | |
| db4425ab-4a47-49bc-9ad0-fde5218cdfe8 Germany | |
| c9df7d10-2630-4ee0-a204-97b49c5ed1ba Poland | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC301031M0220 |
| Mechanical Drawings | 1SCC301390F0001 |
| 1SCC301199F0001 | |
| Environmental Product Declaration - EPD | 1SCC301282D0201 |
| Environmental | |
| Degree of Protection | Front IP00 |
| Environmental Information | 1SCC301265D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 110.5 mm |
| Product Net Height | 150 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 1.1 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| 6.7 in | |
| Package Level 1 Depth / Length | 190 mm |
| 7.5 in | |
| Package Level 1 Height | 145 mm |
| 5.7 in | |
| Package Level 1 Gross Weight | 1.3 kg |
| 2.8 lb | |
| Package Level 1 EAN | 6417019238241 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 250 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Degree of Protection | Front IP00 |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Mechanical Durability | 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 2P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| (1000 V) 250 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 75 kW |
| (400 ... 415 V) 145 kW | |
| (500 V) 170 kW | |
| (690 V) 250 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Special Functions | No |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 02 (Left Side) | |
| Terminal Type | Lug terminals |
| Tightening Torque | acc. IEC 60947-1 15 … 22 N·m |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 15 … 22 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC301337D0201 |
| Declaration of Conformity - CE | 1SCC301131D2705 |
| DNV GL Certificate | 1SCC301174D0204 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
