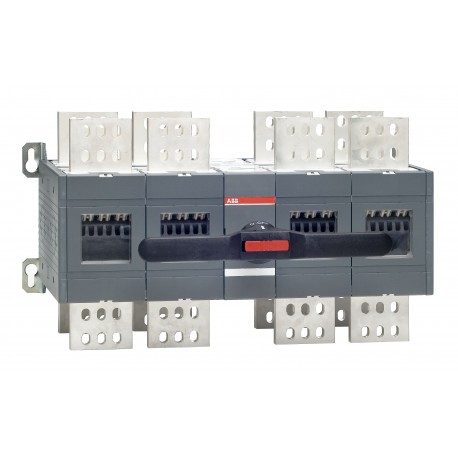

ABB 1SCA103902R1001 1SCA103902R1001 ABB OT2500E22CP CHANGE-OVER SWITCH View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA103902R1001 ABB OT2500E22CP CHANGE-OVER SWITCH

1SCA103902R1001

103902

ABB

1 Pcs.

OT2500E22CP CHANGE-OVER SWITCH OT2500E22CP switch

Connectors > Switch disconnector
OT_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
End Of Life Disassembling Instructions1SCC303054M0201
Environmental Information1SCC303050D0201
Environmental Product Declaration - EPD1SCC303098D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Popular Downloads
Data Sheet, Technical Information1SCC303003C0201
Instructions and Manuals1SCC303008M0208
Environmental Product Declaration - EPD1SCC303098D0201
Environmental
Degree of ProtectionFront IP20
Environmental Information1SCC303050D0201
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width664 mm
26.14 in
Product Net Height377 mm
14.84 in
Product Net Depth / Length335 mm
13.19 in
Product Net Weight69.55 kg
153.33 lb
Container Information
Package Level 1 Unitsbox 1 box
Package Level 1 Width444 mm
17.48 in
Package Level 1 Depth / Length714 mm
28.11 in
Package Level 1 Height385 mm
15.16 in
Package Level 1 Gross Weight72.75 kg
160.39 lb
Package Level 1 EAN6417019382500
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 2500 A
Degree of ProtectionFront IP20
Distance Between PhasesStandard
Fourth Pole PositionRight Side
Fourth Pole TypeSwitched - Simultaneous Function
Handle ColorBlack
Handle TypeHandle and shaft included
Mounting TypeBase mounting
Number of Poles4P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out, Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 85 W
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current AC-21B (Ie)(380 ... 415 V) 2500 A
(500 V) 2500 A
Rated Operational Current AC-31B (Ie)(380 ... 415 V) 2000 A
Rated Operational Current AC-33B (Ie)(380 ... 415 V) 2000 A
Rated Operational VoltageMain Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 55 kiloampere rms
Switches Operating MechanismMechanism Between the Poles
22 (Between the Poles)
Terminal TypeScrew Terminals
Terminal Width100 mm
Tightening Torqueacc. IEC 60947-1 50 ... 75 N·m
Transition TypeOpen
Technical UL/CSA
Tightening Torqueacc. IEC 60947-1 50 ... 75 N·m
Certificates and Declarations
Declaration of Conformity - CE1SCC303022D2702
DNV Certificate1SCC303138D0201
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3650339

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
