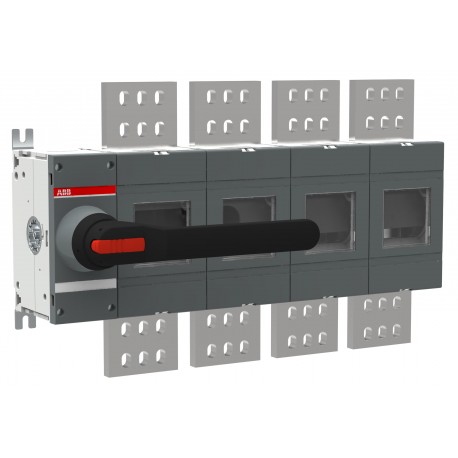

1SCA108363R1001 ABB OT2500E04K switch-disconnector
1SCA108363R1001
108363
ABB
1 Pcs.
Connectors > Switch disconnector
OT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A switch-disconnector acts as a high-capacity master control device within large electrical distribution networks, combining the safety functions of an isolator with the load-breaking performance of a circuit breaker. These heavy industrial units are routinely integrated into primary switchboards to enable complete electrical isolation of expansive plant architecture during scheduled facility maintenance.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- End Of Life Disassembling Instructions: 1SCC301121M0201
- Environmental Information: 1SCC301268D0201
- Environmental Product Declaration - EPD: 1SCC301304D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC301020C0201
- Instructions and Manuals: 1SCC301078M0205
- Mechanical Drawings: 1SCC301737F0002
- Degree of Protection: Front IP00
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC301121M0201 |
| Environmental Information | 1SCC301268D0201 |
| Environmental Product Declaration - EPD | 1SCC301304D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC301078M0205 |
| Mechanical Drawings | 1SCC301737F0002 |
| 1SCC301736F0002 | |
| Environmental Product Declaration - EPD | 1SCC301304D0201 |
| Environmental | |
| Degree of Protection | Front IP00 |
| Environmental Information | 1SCC301268D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 598.5 mm |
| Product Net Height | 376.5 mm |
| Product Net Depth / Length | 167 mm |
| Product Net Weight | 33.3 kg |
| 73.4 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 590 mm |
| 23.23 in | |
| Package Level 1 Depth / Length | 790 mm |
| 31.10 in | |
| Package Level 1 Height | 210 mm |
| 8.27 in | |
| Package Level 1 Gross Weight | 50 kg |
| 23 lb | |
| Package Level 1 EAN | 6417019416786 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 2500 A |
| Degree of Protection | Front IP00 |
| Distance Between Phases | Standard |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black |
| Handle Type | Direct mounted pistol type handle |
| Mechanical Durability | 6000 |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 85 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 2500 A |
| (500 V) 2500 A | |
| (690 V) 2500 A | |
| Rated Operational Current AC-22B (Ie) | (380 ... 415 V) 2500 A |
| (500 V) 2500 A | |
| (690 V) 2500 A | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 176 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kA |
| Special Functions | No |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 04 (Left Side) | |
| Terminal Type | Lug terminals |
| Tightening Torque | acc. IEC 60947-1 50 … 75 N·m |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 50 … 75 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC301338D0201 |
| ATEX Certificate | No certification needed |
| Declaration of Conformity - CE | 1SCC301176D2702 |
| DNV GL Certificate | 1SCC301184D0203 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122221 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| E-Number (Finland) | 3660823 |
