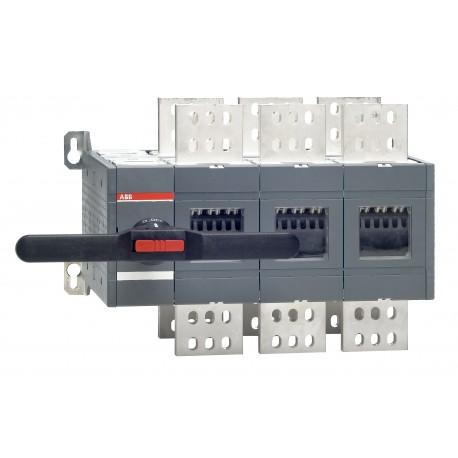

1SCA105615R1001 ABB OT2500E03CP CHANGE-OVER SWITCH
1SCA105615R1001
105615
ABB
1 Pcs.
OT2500E03CP CHANGE-OVER SWITCH
Switch OT2500E03CP
Connectors > Switch disconnector
OT_C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Circular Value | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Environmental Information | 1SCC303050D0201 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Information | 1SCC011020D0201 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC303003C0201 |
| Instructions and Manuals | 1SCC303008M0208 |
| Dimensions | |
| Product Net Width | 538 mm |
| 21.18 in | |
| Product Net Height | 377 mm |
| 14.84 in | |
| Product Net Depth / Length | 335 mm |
| 13.19 in | |
| Product Net Weight | 54.285 kg |
| 119.68 lb | |
| Technical | |
| Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 2500 A |
| (500 V) 2500 A | |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 2000 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 2000 A |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 2500 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kiloampere rms |
| Power Loss | 85 W |
| Pollution Degree | 3 |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 03 (Left Side) | |
| Distance Between Phases | Standard |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Operating Mode | Front operated |
| Mounting Type | Base mounting |
| Number of Poles | 3 |
| Degree of Protection | Front IP20 |
| Terminal Width | 100 mm |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
| Transition Type | Open |
| Technical UL/CSA | |
| Ampere Rating | 2500 A |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
| Environmental | |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Environmental Information | 1SCC303050D0201 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC303022D2702 |
| DNV Certificate | 1SCC303138D0201 |
| REACH Declaration | 1SCC011021D0201 |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 394 mm |
| 15.51 in | |
| Package Level 1 Depth / Length | 584 mm |
| 22.99 in | |
| Package Level 1 Height | 385 mm |
| 15.16 in | |
| Package Level 1 Gross Weight | 73 kg |
| 160.94 lb | |
| Package Level 1 EAN | 6417019382210 |
| Classifications | |
| Object Classification Code | Q |
| ETIM 7 | EC000216 - Switch disconnector |
| ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3650331 |
