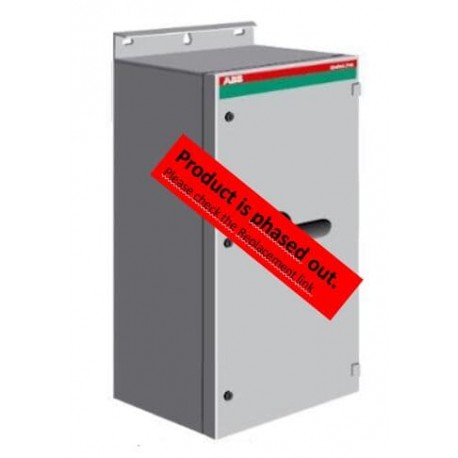

ABB OT200KLAA6BZ OT200KLAA6BZ 1SCA022717R9520 ABB OT200KLAA6BZ Enclosed switch View larger
Images are for illustrative purposes only. Please refer to data sheet for details

OT200KLAA6BZ 1SCA022717R9520 ABB OT200KLAA6BZ Enclosed switch

OT200KLAA6BZ

1SCA022717R9520

ABB

1 Pcs.

OT200KLAA6BZ Enclosed switch Int. Box disconnector OT200KLAA6BZ OT200KLAA6BZ Encl. Switch Disconnector

Connectors > Switch disconnector
Box

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

ABB OT200KLAA6BZ enclosed switch is an independent protective switching station housed in a durable casing to shield internal electrical components from external environmental hazards. Such pre-packaged assemblies are typically mounted near heavy equipment for safe, localized power termination.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • RoHS Declaration: 1SCC340049D0202
  • RoHS Information: Following EU Directive 2011/65/EU
  • Data Sheet, Technical Information: 1SCC340015C0201
  • Instructions and Manuals: 1SCC340005M0007
  • Mechanical Drawings: OTKM608023PO.stp
  • Degree of Protection: acc. to IEC 60529 IP65
  • Pollution Degree: 3
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85363090
  • Replacement Product ID (NEW): OT200KLUU6BZ
  • Country or Territory of Origin: Finland
  • Product Net Width: 800 mm
  • Product Net Height: 600 mm
  • Product Net Depth / Length: 230 mm
  • Product Net Weight: 24.5 kg
  • Package Level 1 Units: box 1 piece

More info

▲
ABB EcoSolutions
Material Compliance
RoHS Declaration1SCC340049D0202
RoHS InformationFollowing EU Directive 2011/65/EU
Popular Downloads
Data Sheet, Technical Information1SCC340015C0201
Instructions and Manuals1SCC340005M0007
Mechanical DrawingsOTKM608023PO.stp
Environmental
Degree of Protectionacc. to IEC 60529 IP65
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363090
Replacement Product ID (NEW)OT200KLUU6BZ
Country or Territory of OriginFinland
Dimensions
Product Net Width800 mm
Product Net Height600 mm
Product Net Depth / Length230 mm
Product Net Weight24.5 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width815 mm
Package Level 1 Depth / Length910 mm
Package Level 1 Height325 mm
Package Level 1 Gross Weight29 kg
Package Level 1 EAN6417019230238
Technical
Cable Entry PositionUp/Down
Cable Outlets Per SideOpen / Open
Connecting Capacity Main CircuitHole Diameter 8 mm
Screw Clamp / PE Terminal 8pcs, 10…70 mm²
Conventional Thermal Current (Ithe)Fully Enclosed 200 A
Degree of Protectionacc. to IEC 60529 IP65
Enclosure MaterialSteel sheet
Handle ColorBlack
Handle TypePistol handle
Maximum Mounted Auxiliary Contacts4 NO, 2 NC
Mounted Auxiliary Contacts0 NO, 0 NC
Number of Poles6P
Pollution Degree3
Power Lossat Rated Operating Conditions per Pole 4 W
Rated Conditional Short-Circuit Current (Inc)40.5 kA
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 200 A
(690 V) 200 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 200 A
(690 V) 200 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 110 kW
(500 V) 132 kW
(690 V) 160 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)(1000 V AC) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 8 kA
StandardsIEC 60947-1, -3
Certificates and Declarations
Declaration of Conformity - CE1SCC340025D2704
External Classifications and Standards
Object Classification CodeQ
ETIM 10EC000216 - Switch disconnector (AC)
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
