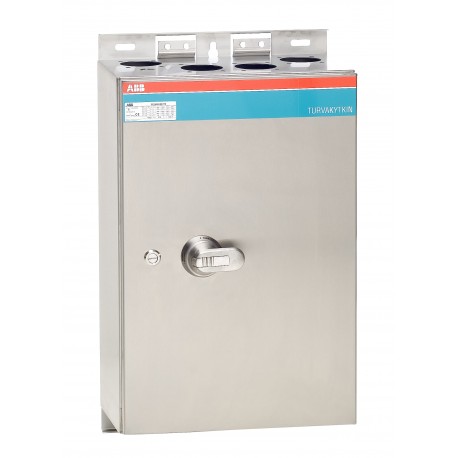

1SCA101252R1001 ABB OT200ERRR3TZ Safety switch
1SCA101252R1001
101252
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB 1SCA101252R1001 OT200ERRR3TZ safety switch is built inside a protective enclosure to offer reliable circuit interruption in harsh industrial environments. Housed safety switches are typically installed near heavy standalone machinery to allow quick local power isolation by maintenance technicians.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC340076D0201
- RoHS Declaration: 1SCC340075D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: 617a60ce-66ea-4ca9-997b-d2228abba26b Finland
- Simplified SCIP: 12b04be3-f938-4456-8830-889cbfe28a09 Germany
- Toxic Substances Control Act - TSCA: 1SCC340095D0201
- Data Sheet, Technical Information: 1SCC340015C0201
- Instructions and Manuals: 1SCC340008M0004
- Mechanical Drawings: OTRK604023P4R25.stp
- Degree of Protection: acc. to IEC 60529 IP65
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85363090
- Country or Territory of Origin: Finland
- Product Net Width: 400 mm
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 617a60ce-66ea-4ca9-997b-d2228abba26b Finland |
| Simplified SCIP | 12b04be3-f938-4456-8830-889cbfe28a09 Germany |
| 6cc98610-4264-4684-9982-08167ec2463f Germany | |
| c2af56fc-c792-4e9b-bb5d-039cdbdd8ab7 Belgium | |
| ce96478d-1917-48a8-b4df-42f8212c64dc Denmark | |
| cb57aa43-c581-42f3-bc18-c1cd7f2fd23e Greece | |
| 8f3a4c86-3a29-460b-ae76-cc2bb5117533 Estonia | |
| 119a5b18-b713-40f1-b5f8-d9357742846c Portugal | |
| 46adf659-df09-4590-ac85-5b44af498ed8 Norway | |
| e5c9d256-7d54-4e92-a789-5a73da8a799d Netherlands | |
| be3ce850-c8c0-407b-bf40-c9ade906b2c8 Poland | |
| 27e57982-1fe8-44a0-9b81-5e7ce055bdda France | |
| 392e7b78-72e5-48ba-af7f-977470165367 Spain | |
| 7a8241bc-0aa4-47ee-b118-7d5da5d1d540 Croatia | |
| ee664beb-a861-4057-986e-f078aa30cad0 Germany | |
| 06416fce-27db-422e-b401-fd3649148c89 Hungary | |
| 01a3bcde-d6f7-42c8-9225-c55283aa2768 Germany | |
| e1ffe064-99b8-4538-91a5-230211ecd463 Sweden | |
| b2a0dc90-690f-4fc2-85a7-61e1a74fcd6b France | |
| 96be7e33-0de4-4486-9b9a-cecd30cf007d Czech Republic | |
| 104e3ac9-96b0-492a-8958-115ff140f538 Poland | |
| 294d82b7-8828-4c4a-95ef-3d6625a33a5d Germany | |
| c42b3a5b-2bcf-45f2-bb67-9a72174a5f85 Hungary | |
| b386ab16-61ef-4caf-b2f6-2c8fcece1351 Italy | |
| d3ffaf29-efa8-43fd-bf26-c1e038aed2f1 Belgium | |
| f9bf7ae3-aab9-4aa7-bfec-8633dc6d85cd Poland | |
| c0df7431-0460-426f-85da-c1bc996f6733 Sweden | |
| 48a58e6e-b8e2-4730-a71a-806e151a3888 Bulgaria | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340008M0004 |
| Mechanical Drawings | OTRK604023P4R25.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 400 mm |
| Product Net Height | 600 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 23.31 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 710 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 25 kg |
| Package Level 1 EAN | 6417019362014 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 4xring-flange+ø25.5mm / 4xring-flange+ø25.5mm |
| Color | Stainless |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm |
| Screw Clamp / PE Terminal 2pc,10 ... 70 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Stainless steel |
| Handle Color | Stainless Steel |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 2 NO, 1 NC |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 4 W |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 110 kW |
| (500 V) 132 kW | |
| (690 V) 160 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 |
| Special Functions | EMC |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 22 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M8 |
| Tightening Torque | Main Circuit 22 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340025D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| E-Number (Finland) | 3642107 |
| E-Number (Sweden) | 3135023 |
