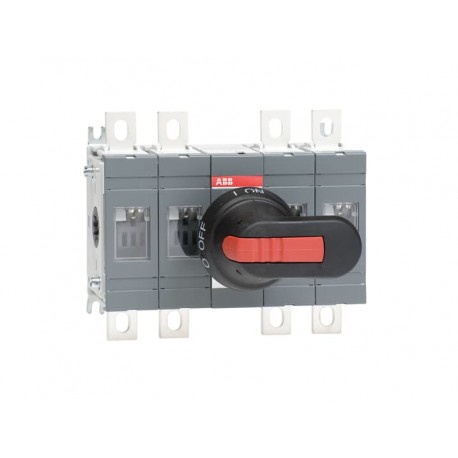

1SCA022721R4020 ABB OT200E22P switch-disconnector
1SCA022721R4020
022721
ABB
1 Pcs.
OT200E22P switch-disconnector
OT200E22P disconnect switch
OT200E22P SWITCH-DISCONNECTOR
Connectors > Switch disconnector
OT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC301117M0201 |
| Environmental Information | 1SCC301265D0201 |
| Environmental Product Declaration - EPD | 1SCC301282D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 21f7e163-e7eb-459e-b78b-f2b2b7a5860e Finland |
| Simplified SCIP | bbc63a4f-a5c0-4a5b-9882-65866fecc5f6 Germany |
| cf16befb-86b9-4cfb-9ccc-5953307bae33 Germany | |
| acd581a7-5eff-431d-968e-6f4cf40256e0 Sweden | |
| a4bee863-dd2f-487b-99a7-a8d66b65a30c Norway | |
| 9783041a-33cc-4075-9091-f797461e1770 Poland | |
| 90eca840-c40b-40d4-a4c5-84341239e622 Sweden | |
| 2be7f38b-a5c7-459e-b7f1-f6db961b17e0 Germany | |
| e8eb267f-fffc-44c4-b9e6-c15d3e2acf01 Portugal | |
| 17db3d0f-db68-4d4a-b2d5-7fa5b2d7425b Poland | |
| ec8c0e7b-df59-4116-a6fc-d0a8a7455177 Poland | |
| 209d515c-8872-46ec-ada5-527b81a431b6 Greece | |
| c86747c8-5d72-473c-bb67-7e7ea2b8b2a1 Bulgaria | |
| 173c15a5-90e4-4274-ba99-7e42279d75d4 Estonia | |
| 0b4866b4-6270-4f18-aa00-55e146183bb2 Belgium | |
| 3d30fd19-18c7-47a4-8bde-ce7d4c583ba8 France | |
| 7a8ccc55-0011-4bee-9534-862711870ab7 Hungary | |
| 42230fb7-0f8c-4a6d-909f-a9d3376ed98d Spain | |
| ea1d05e7-d14e-4cf6-beb8-16f593016fe4 Denmark | |
| fbf26844-1dc8-49ff-b2bd-a3cdd8250326 Croatia | |
| 9e9c6d7a-bfa4-4fbf-a380-347ecd76433f Czech Republic | |
| 895bc29a-9a0e-496f-a3e7-dd197fcda841 Germany | |
| 77df7c69-fb2b-46af-8eff-2287c924d4f7 Germany | |
| 0d809de2-2cbd-4248-968c-2bee48885e0c France | |
| 98ee3d5d-34a7-46bb-96d3-bdb900092e0c Belgium | |
| 80864330-7872-4917-9d27-ff8fb7c5e973 Italy | |
| 2f5eb206-ed4a-4be1-bb29-5e1ede14276c Netherlands | |
| 1aabec72-0c5f-4ce8-8ebd-3e1fd6f256bc Hungary | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC301031M0220 |
| Mechanical Drawings | 1SCC301232F0001 |
| 1SCC301231F0001 | |
| OT200-250E22.igs | |
| Environmental Product Declaration - EPD | 1SCC301282D0201 |
| Environmental | |
| Degree of Protection | Front IP00 |
| Environmental Information | 1SCC301265D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 185.5 mm |
| Product Net Height | 150 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 1.8 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| 6.69 in | |
| Package Level 1 Depth / Length | 190 mm |
| 7.48 in | |
| Package Level 1 Height | 145 mm |
| 5.71 in | |
| Package Level 1 Gross Weight | 2.1 kg |
| 0.93 lb | |
| Package Level 1 EAN | 6417019231778 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Degree of Protection | Front IP00 |
| Distance Between Phases | Standard |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Mechanical Durability | 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 4.0 W |
| Rated Conditional Short-Circuit Current (Inc) | (315 A fuse, 500 V) 100 kA |
| (355 A fuse, 690 V) 80 kA | |
| (250 A fuse, 690 V) 100 kA | |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 60 kW |
| (400 ... 415 V) 110 kW | |
| (500 V) 132 kW | |
| (690 V) 200 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Special Functions | No |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism Between the Poles |
| 22 (Between the Poles) | |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | acc. IEC 60947-1 15 … 22 N·m |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 15 … 22 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC301337D0201 |
| ATEX Certificate | No certification needed |
| BV Certificate | 1SCC301103D0201 |
| Declaration of Conformity - CE | 1SCC301131D2705 |
| DNV GL Certificate | 1SCC301174D0204 |
| GL Certificate | 1SCC301139D0201 |
| LR Certificate | 1SCC301144D0201 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122221 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3661318 |
| E-Number (Norway) | 4337855 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 200 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 200 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 200 A |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 110 kW |
| Switching power at 400 V (EF009166) | 110 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 100 kA |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP00 |
| Degree of protection (NEMA) (EF011959) | Other |
