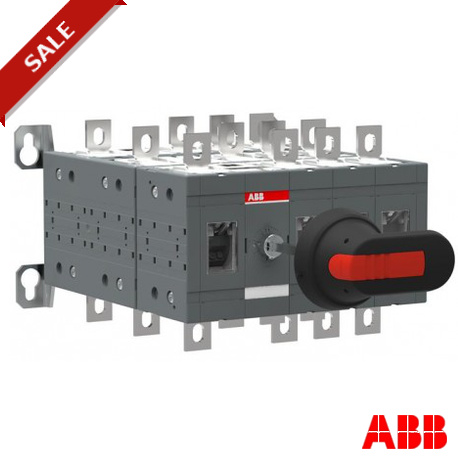

ABB OT200E13YP OT200E13YP 1SCA123570R1001 ABB OT200E13YP BY-PASS SWITCH View larger
Images are for illustrative purposes only. Please refer to data sheet for details

OT200E13YP 1SCA123570R1001 ABB OT200E13YP BY-PASS SWITCH

OT200E13YP

1SCA123570R1001

ABB

1 Pcs.

OT200E13YP BY-PASS SWITCH Manual Bypass Switch OT200E13YP

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Direct electrical loads efficiently during maintenance using the Abb OT200E13YP by-pass switch, engineered for seamless source shifting without power drops. This heavy-duty manual switching device provides high operational capacity and reliable thermal performance for complex distribution networks. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Data Sheet, Technical Information: 1SCC303003C0201
  • Rated Operational Current AC-21A (I e ): (380 ... 415 V) 200 A (500 V) 200 A (690 V) 200 A
  • Rated Operational Current AC-22A (I e ): (380 ... 415 V) 200 A (500 V) 200 A (690 V) 200 A
  • Rated Operational Current AC-23A (I e ): (380 ... 415 V) 200 A (500 V) 200 A (690 V) 200 A
  • Rated Operational Power AC-23A (P e ): (380 ... 415 V) 110 kW (500 V) 132 kW (690 V) 200 kW
  • Conventional Free-air Thermal Current (I th ): q = 40 °C 200 A
  • Conventional Thermal Current (I the ): Fully Enclosed 200 A
  • Rated Impulse Withstand Voltage (U imp ): 12 kV
  • Rated Insulation Voltage (U i ): 1000 V
  • Rated Operational Voltage: 1000 V
  • Rated Short-time Withstand Current (I cw ): for 1 s 8 kiloampere rms
  • Power Loss: 4 W
  • Pollution Degree: 3
  • Handle Type: Handle and shaft included
  • Fourth Pole Position: Right Side
  • Fourth Pole Type: Switched - Simultaneous Function

More info

▲

Including a black plastic IP65 I-0-II pistol type handle and a handle extension for enabling smooth manual operation, shaft and bolt set for the cable connection. The handle extension is snap-on mounted on the standard handle for manual operation. The handle extension shall be removed when padlocking the standard handle. Handle padlockable in the 0-position, door interlock in the I- and II-positions and when padlocked.

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85365080

Popular Downloads

  • Data Sheet, Technical Information:
    1SCC303003C0201

Dimensions

  • Product Net Width:
    229mm
  • Product Net Height:
    150mm
  • Product Net Depth:
    236mm
  • Product Net Weight:
    7.5kg

Technical

  • Rated Operational Current AC-21A (Ie):
    (380 ... 415 V) 200 A
    (500 V) 200 A
    (690 V) 200 A
  • Rated Operational Current AC-22A (Ie):
    (380 ... 415 V) 200 A
    (500 V) 200 A
    (690 V) 200 A
  • Rated Operational Current AC-23A (Ie):
    (380 ... 415 V) 200 A
    (500 V) 200 A
    (690 V) 200 A
  • Rated Operational Power AC-23A (Pe):
    (380 ... 415 V) 110 kW
    (500 V) 132 kW
    (690 V) 200 kW
  • Conventional Free-air Thermal Current (Ith):
    q = 40 °C 200 A
  • Conventional Thermal Current (Ithe):
    Fully Enclosed 200 A
  • Rated Impulse Withstand Voltage (Uimp):
    12 kV
  • Rated Insulation Voltage (Ui):
    1000 V
  • Rated Operational Voltage:
    1000 V
  • Rated Short-time Withstand Current (Icw):
    for 1 s 8 kiloampere rms
  • Power Loss:
    4 W
  • Pollution Degree:
    3
  • Handle Type:
    Handle and shaft included
  • Fourth Pole Position:
    Right Side
  • Fourth Pole Type:
    Switched - Simultaneous Function
  • Switches Operating Mechanism:
    Mechanism Between the Poles
    13 (Between the Poles)
  • Distance Between Phases:
    Standard
  • Position of Line Terminals:
    Top In - Bottom Out, Bottom In - Top Out
  • Operating Mode:
    Front operated
  • Mounting Type:
    Base mounting
  • Number of Poles:
    4

Certificates and Declarations (Document Number)

  • Declaration of Conformity - CE:
    1SCC301194D0202
  • Instructions and Manuals:
    1SCC301080M0003

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    175 mm
  • Package Level 1 Length:
    360 mm
  • Package Level 1 Height:
    350 mm
  • Package Level 1 Gross Weight:
    7.5 kg
  • Package Level 1 EAN:
    6417019543543

Classifications

  • Object Classification Code:
    Q
  • ETIM 5:
    EC000216 - Switch disconnector
  • ETIM 6:
    EC000216 - Switch disconnector
