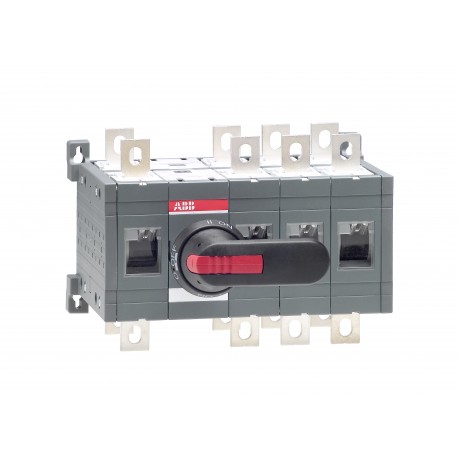

ABB 1SCA022777R0250 1SCA022777R0250 ABB OT200E13CP CHANGE-OVER SWITCH View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA022777R0250 ABB OT200E13CP CHANGE-OVER SWITCH

1SCA022777R0250

022777

ABB

1 Pcs.

OT200E13CP CHANGE-OVER SWITCH Switch OT200E13CP

Connectors > Switch disconnector
OT_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
End Of Life Disassembling Instructions1SCC303050M0201
Environmental Information1SCC303050D0201
Environmental Product Declaration - EPD1SCC303082D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIPad6f2efb-109b-42dd-9cd5-d028201452a5 Finland
Simplified SCIP6b3ede95-9e0d-41a3-8fe0-12c80900d6ca Germany
93122d43-ed40-4c5c-88ec-a674f0871e86 Denmark
ce1c5ff0-9a14-4311-903a-a5fce994945b Germany
2f0d23ca-e014-4c0c-ba60-db3461ec7c84 Germany
8405b0e2-b960-4fa2-9214-3753d74a5562 Portugal
cd67b479-d947-4d95-882d-4a2e319b5741 Bulgaria
c9e91180-842e-49ed-a18f-36a335daf9cf Sweden
af85692d-ad4d-4f4f-9e9c-5fa55c7994c9 Poland
6c0e4bb2-6caf-46d2-aa2c-ea189dac0380 France
8de4fa35-62eb-4175-8413-e5e5495753b8 Sweden
1b622cdb-e959-4ac3-8451-90e0fe1bce73 Germany
a3432372-332d-4513-bb8a-4c77cfdd37ce Germany
313bcf86-4403-4e68-b43f-6e33c74c40fc Greece
b20c82c2-271b-4742-aa87-b09eb577a567 Norway
82c0418f-7f83-48d1-a543-19b01407d128 Belgium
a447ed03-5870-4536-b796-80d42457484d Italy
632b8170-5bf6-4730-8033-8831379dda71 Spain
4e11bf5e-7b3a-44e4-b8b8-9677b2fc454d Hungary
6e66e3c6-8de4-4a04-94ef-a958d26b7f46 France
a51f6648-8a99-4475-964d-3e4ab7937633 Poland
7dc56f01-f1c8-4679-828b-e59e18bc3f5e Estonia
d681d675-5755-4408-ab9b-77ac3c09a2fa Hungary
f44f8ec1-58e3-401f-88a0-58a3b1677ee1 Netherlands
f3dd9396-5003-4268-8263-bd7c3a05a172 Belgium
e7b0b6a9-2330-4307-a36d-91ccae2db224 Poland
6570a05f-589b-4d1a-aab7-af6c83797a07 Czech Republic
c5bb9b45-806d-44a2-b6eb-b64efdec793d Croatia
Popular Downloads
Data Sheet, Technical Information1SCC303003C0201
Instructions and Manuals1SCC303008M0208
Environmental Product Declaration - EPD1SCC303082D0201
Environmental
Degree of ProtectionFront IP20
Environmental Information1SCC303050D0201
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width205 mm
8.07 in
Product Net Height150 mm
5.91 in
Product Net Depth / Length160 mm
6.3 in
Product Net Weight3.9 kg
8.6 lb
Container Information
Package Level 1 Unitsbox 1 box
Package Level 1 Width160 mm
6.3 in
Package Level 1 Depth / Length270 mm
10.63 in
Package Level 1 Height185 mm
7.28 in
Package Level 1 Gross Weight4.2 kg
9.26 lb
Package Level 1 EAN6417019253091
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)Fully Enclosed 200 A
Degree of ProtectionFront IP20
Distance Between PhasesStandard
Fourth Pole PositionRight Side
Fourth Pole TypeSwitched - Simultaneous Function
Handle ColorBlack
Handle TypeHandle and shaft included
Mounting TypeBase mounting
Number of Poles4P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out, Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 4 W
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Current AC-31B (Ie)(380 ... 415 V) 200 A
Rated Operational Current AC-33B (Ie)(380 ... 415 V) 200 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 110 kW
(500 V) 132 kW
(690 V) 200 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 8 kiloampere rms
Switches Operating MechanismMechanism Between the Poles
13 (Between the Poles)
Terminal TypeScrew Terminals
Terminal Width20 mm
Tightening Torqueacc. IEC 60947-1 15 ... 22 N·m
Transition TypeOpen
Technical UL/CSA
Tightening Torqueacc. IEC 60947-1 15 ... 22 N·m
Certificates and Declarations
Declaration of Conformity - CE1SCC303001D2704
DNV Certificate1SCC303138D0201
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3641535

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
