> ABB > Manual Switches > 108530

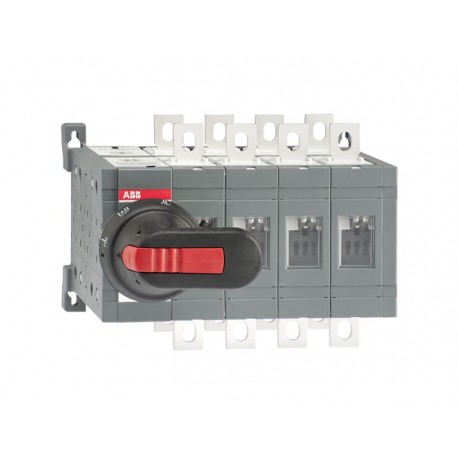

ABB 1SCA108530R1001 1SCA108530R1001 ABB Switch switch I-II OT200E04CLP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA108530R1001 ABB Switch switch I-II OT200E04CLP

1SCA108530R1001

108530

ABB

1 Pcs.

Switch switch I-II OT200E04CLP I-II OT200E04CLP Switch OT200E04CLP CHANGE-OVER SWITCH

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
End Of Life Disassembling Instructions1SCC303050M0201
Environmental Information1SCC303050D0201
Environmental Product Declaration - EPD1SCC303082D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP0445d5fa-6568-4374-bb04-626759926afa Finland
Simplified SCIP56a158bc-ec00-4588-a365-35c2f0be3e5c Germany
b52ef02e-1185-4a33-8d58-072d383d8583 Germany
e4c16318-bb0f-4a76-ad26-89de81fe8d64 Belgium
ac5c14fe-ec57-4289-b753-c25940be5e54 Germany
782281aa-2762-45be-a5b6-c1f0a1c8092e Sweden
090e79ae-4758-44fd-813d-c387c0266b70 France
b195b4ba-c466-4249-a74b-0775b559fbf0 Germany
271dcc9d-0a18-4fc4-8f36-2cfb308bd19c Portugal
a04e0320-6ba7-4367-96ed-08ed55091af5 Greece
ee05c218-5ca9-4587-8c52-e18e47979d54 Estonia
2a107922-babc-49df-a93b-b5fa7462c81d Poland
d0b1e72c-71a9-45e8-b9a6-b87c4562699f Hungary
510aa703-85a7-491a-8e05-00280ae1899a Sweden
3e347c5c-bf51-4b26-b96f-30aa7f6ed5c3 Belgium
9558c0c2-1613-454c-b8a9-378762903ede Norway
2f03b5ef-0f34-45e5-996b-b71fc2588a16 Poland
f58b3c83-ba99-4ec7-ba6f-24bd3e35767a Czech Republic
62be0a46-bfdd-4a1d-8b26-50f982001e4c Croatia
c05d68f1-0422-4d71-9293-54ab91f831f6 Hungary
cc12e916-6b11-4745-9b61-740b56e42165 Spain
3ddf5534-ce62-4179-8685-cf638a495a7a Bulgaria
26a08106-e0aa-4523-b8e7-7c5d550215ab France
06399510-317b-401a-a3b6-624df932a464 Germany
ec30983d-2c40-4d49-be4c-caf51cc07f0d Denmark
20357779-fdd3-4ff0-9c0c-c8d1c470fffd Poland
94df5b50-4ca7-4731-8c4f-58a20af61801 Italy
2c7b2fc0-2c1b-4ea7-9514-cb7a3bbaaf0f Netherlands
Popular Downloads
Data Sheet, Technical Information1SCC303003C0201
Instructions and Manuals1SCC303008M0208
Environmental Product Declaration - EPD1SCC303082D0201
Environmental
Degree of ProtectionFront IP20
Environmental Information1SCC303050D0201
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width205 mm
8.07 in
Product Net Height150 mm
5.91 in
Product Net Depth / Length160 mm
6.3 in
Product Net Weight3.8 kg
8.38 lb
Container Information
Package Level 1 Unitsbox 1 box
Package Level 1 Width170 mm
6.69 in
Package Level 1 Depth / Length270 mm
10.63 in
Package Level 1 Height185 mm
7.28 in
Package Level 1 Gross Weight4.1 kg
9.04 lb
Package Level 1 EAN6417019399485
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)Fully Enclosed 200 A
Degree of ProtectionFront IP20
Distance Between PhasesStandard
Fourth Pole PositionRight Side
Fourth Pole TypeSwitched - Simultaneous Function
Handle ColorBlack
Handle TypeHandle and shaft included
Mounting TypeBase mounting
Number of Poles4P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out, Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 4 W
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Current AC-31B (Ie)(380 ... 415 V) 200 A
Rated Operational Current AC-33B (Ie)(380 ... 415 V) 200 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 110 kW
(500 V) 132 kW
(690 V) 200 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 8 kiloampere rms
Switches Operating MechanismMechanism at the End of the Switch
04 (Left Side)
Terminal TypeScrew Terminals
Tightening Torqueacc. IEC 60947-1 15 ... 22 N·m
Transition TypeClosed
Technical UL/CSA
Tightening Torqueacc. IEC 60947-1 15 ... 22 N·m
Certificates and Declarations
Declaration of Conformity - CE1SCC303045D2702
DNV Certificate1SCC303138D0201
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3641609

ETIM for 1SCA108530R1001 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as maintenance-/service switch (EF006986) Yes
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Max. rated operation voltage Ue AC (EF007355) 1000 V
Rated operating voltage (EF001435) 1000 V
Rated permanent current at AC-23, 400 V (EF011777) 200 A
Rated permanent current at AC-21, 400 V (EF009165) 200 A
Rated short-time withstand current lcw (EF007050) 8 kA
Rated operation power at AC-23, 400 V (EF007027) 110 kW
Switching power at 400 V (EF009166) 110 kW
Number of poles (EF001391) 4
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Built-in device plug-in technique
Suitable for front mounting 4-hole (EF007247) Yes
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) Yes
Suitable for intermediate mounting (EF007264) No
Colour control element (EF007167) Black
Type of control element (EF006976) Long turning handle
Interlockable (EF006281) Yes
Type of electrical connection of main circuit (EF006819) Other
Degree of protection (IP), front side (EF003118) IP20
Degree of protection (NEMA) (EF011959) 1
