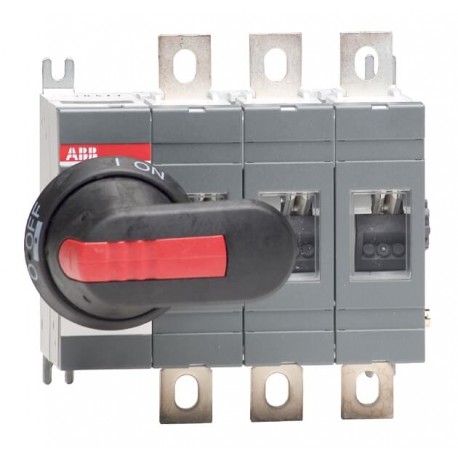

ABB 1SCA022712R0800 1SCA022712R0800 ABB OT200E03P switch-disconnector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA022712R0800 ABB OT200E03P switch-disconnector

1SCA022712R0800

022712

ABB

1 Pcs.

OT200E03P switch-disconnector Disconnect switch OT200E03P OT200E03P SWITCH-DISCONNECTOR

Connectors > Switch disconnector
OT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
End Of Life Disassembling Instructions1SCC301117M0201
Environmental Information1SCC301265D0201
Environmental Product Declaration - EPD1SCC301282D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIPe76f6a16-d3db-4570-b154-2da087b79f14 Finland
Simplified SCIP21647494-bad3-44fc-b28f-28a02a60ef4c Germany
94aeb75b-4caa-4f34-8224-4d6a48b1226f Germany
97494682-ae73-4bb9-b7ae-2e0990779580 Bulgaria
4c3d3f64-8002-4976-a6de-4550bd2c2564 Greece
6b742a29-c37c-496a-930e-317c82a5c5d8 Portugal
c10f5ab2-c439-4669-8dab-744cb3a23205 Germany
f57caf15-67a4-4cc2-8c5d-7967ecb0177a France
c3f15763-5f9a-464d-9694-91fa9be87427 Poland
e0bc9149-62f4-4022-be24-a9e86b72022a Czech Republic
56977ec8-982b-4f66-a84b-7de170b6a034 Germany
056d4b8f-e30c-4b9d-8534-280d62839f15 Germany
02f076c8-db55-493b-9184-e154ddffdfdb Croatia
0f723643-fc51-421e-a175-f92295bb823d Estonia
f8d3b8dd-7eae-4abf-a8d0-3b430aecd50d Italy
89e7cc8b-1209-4fa6-8dbe-3b527e58b909 Belgium
93905029-08c6-4b24-937d-246faec429fd Poland
571453b7-c23a-41d8-94be-77ec02f481ec France
a5f8d387-06ad-490c-9dbc-114f2de16586 Sweden
b7c5adba-0f0c-48c1-9b48-c06d54558de4 Hungary
833d5ec1-a03f-4ce2-bcee-ff2dc6af1afe Netherlands
64aad036-2b38-4bcc-9e0b-4060eb198609 Hungary
8e699c60-4e74-49ce-be85-337ebedd8b5a Denmark
fef3dd11-c86a-4473-aac9-51d7bd1d63e1 Poland
cf1bfaa8-c414-4242-b16e-c7483123eb29 Sweden
640a2dcb-b8c8-470f-97a4-a5a39fa70542 Spain
46a1e8ad-e298-4ae5-beb5-f6626dc83b6a Belgium
b2517ca7-cc75-4371-a0c8-623835199d68 Norway
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC301031M0220
Mechanical Drawings1SCC307633F0001
1SCC307632F0001
OT200-250E03.stp
OT200-250E03.igs
Environmental Product Declaration - EPD1SCC301282D0201
Environmental
Degree of ProtectionFront IP00
Environmental Information1SCC301265D0201
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width145.5 mm
Product Net Height150 mm
Product Net Depth / Length82.5 mm
Product Net Weight1.5 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width170 mm
6.7 in
Package Level 1 Depth / Length190 mm
7.5 in
Package Level 1 Height145 mm
5.7 in
Package Level 1 Gross Weight1.6 kg
3.6 lb
Package Level 1 EAN6417019227740
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)Fully Enclosed 200 A
Degree of ProtectionFront IP00
Distance Between PhasesStandard
Handle ColorBlack
Handle TypeHandle and shaft included
Mechanical Durability20000
Mounting TypeBase mounting
Number of Poles3P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 4.0 W
Rated Conditional Short-Circuit Current (Inc)(315 A fuse, 500 V) 100 kA
(355 A fuse, 690 V) 80 kA
(250 A fuse, 690 V) 100 kA
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 60 kW
(400 ... 415 V) 110 kW
(500 V) 132 kW
(690 V) 200 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 8 kA
Special FunctionsNo
StandardsIEC 60947-3
Switches Operating MechanismMechanism at the End of the Switch
03 (Left Side)
Terminal TypeLug terminals
Terminal Width20 mm
Tightening Torqueacc. IEC 60947-1 15 … 22 N·m
Technical UL/CSA
Tightening Torqueacc. IEC 60947-1 15 … 22 N·m
Certificates and Declarations
A2L Certificate – IEC1SCC301337D0201
ATEX CertificateNo certification needed
BV Certificate1SCC301103D0201
Declaration of Conformity - CE1SCC301131D2705
DNV GL Certificate1SCC301174D0204
GL Certificate1SCC301139D0201
LR Certificate1SCC301144D0201
UL CertificateNo certification needed
VDE CertificateNo certification needed
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122221
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3661302
E-Number (Norway)4337850
E-Number (Sweden)3171156
