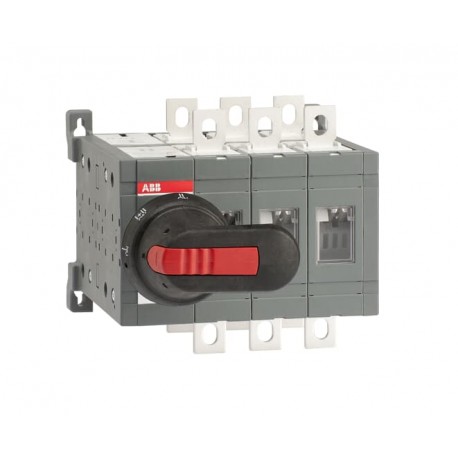

ABB 1SCA108522R1001 1SCA108522R1001 ABB Switch switch I-II OT200E03CLP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA108522R1001 ABB Switch switch I-II OT200E03CLP

1SCA108522R1001

108522

ABB

1 Pcs.

Switch switch I-II OT200E03CLP I-II OT200E03CLP Switch OT200E03CLP CHANGE-OVER SWITCH

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
End Of Life Disassembling Instructions1SCC303050M0201
Environmental Information1SCC303050D0201
Environmental Product Declaration - EPD1SCC303082D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP71bd8cb9-dd9a-4524-8ef8-38c260df237a Finland
Simplified SCIP5cbb9209-e48c-4441-baa3-dbe9582e622d Germany
df820b7c-1e7f-436c-b92a-c500dcd05194 Portugal
dad8fbc3-788e-405a-ac73-fdd9818447b5 Greece
8edbce29-88c9-4c18-b414-29d86cf07e56 Czech Republic
ae36b616-9bad-4f43-90bf-577e23e513b7 Poland
cb9ffce0-41b0-45ee-b79f-e47eca33c238 Croatia
53392f96-e47e-4789-aacf-61f486f1231c Estonia
2af7e1ad-c678-4210-994b-c3ff08689eda Hungary
4d10a04c-3203-40a2-af02-85f15abe95cb Belgium
80b8c483-a5fc-468d-b761-43b334168fc4 Spain
6a506717-0b01-4c4b-91d6-92666e46d56f Poland
7ce4f98f-755d-4b02-9f53-e9e70b857f97 Sweden
1ac7106d-fcf0-44c9-95a8-1f30196015ca Bulgaria
6ce35cbf-3fc2-441d-beda-b69175d8d92a France
629775bc-29ff-44ef-9128-b0957d78304b Sweden
fcfd5658-c21b-4991-af94-e4dcab983ce2 Hungary
05e82715-f8da-4929-8e12-cecac809f190 France
46f5bea9-fd2c-4f18-855b-0c932d473246 Germany
4546ed73-e628-462d-9afe-280765e0539f Germany
ef5358dc-6d8d-4154-a99a-b3d71fce7ed7 Denmark
8136e8a2-d231-4f24-96b7-d57cd8f90462 Poland
72979d92-11f3-49e1-a342-41409b51a0f2 Norway
cc8ff171-efce-4cf4-ae5b-1b0c386ddedc Belgium
3d0d4078-8693-4503-b1de-8b9ce76d54f6 Italy
40ece189-c710-4e8e-81bf-bd0c4ff57625 Netherlands
03bb8225-5fdc-4de6-aed1-7edadb128b59 Germany
4707e653-5b22-4646-b77c-32bcb208ec9d Germany
Popular Downloads
Data Sheet, Technical Information1SCC303003C0201
Instructions and Manuals1SCC303008M0208
Environmental Product Declaration - EPD1SCC303082D0201
Environmental
Degree of ProtectionFront IP20
Environmental Information1SCC303050D0201
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width170 mm
6.69 in
Product Net Height150 mm
5.91 in
Product Net Depth / Length160 mm
6.3 in
Product Net Weight3.1 kg
6.83 lb
Container Information
Package Level 1 Unitsbox 1 box
Package Level 1 Width160 mm
6.3 in
Package Level 1 Depth / Length245 mm
9.65 in
Package Level 1 Height185 mm
7.28 in
Package Level 1 Gross Weight3.3 kg
7.28 lb
Package Level 1 EAN6417019399539
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)Fully Enclosed 200 A
Degree of ProtectionFront IP20
Distance Between PhasesStandard
Handle ColorBlack
Handle TypeHandle and shaft included
Mounting TypeBase mounting
Number of Poles3P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out, Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 4 W
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Current AC-31B (Ie)(380 ... 415 V) 200 A
Rated Operational Current AC-33B (Ie)(380 ... 415 V) 200 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 110 kW
(500 V) 132 kW
(690 V) 200 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 8 kiloampere rms
Switches Operating MechanismMechanism at the End of the Switch
03 (Left Side)
Terminal TypeScrew Terminals
Tightening Torqueacc. IEC 60947-1 15 ... 22 N·m
Transition TypeClosed
Technical UL/CSA
Tightening Torqueacc. IEC 60947-1 15 ... 22 N·m
Certificates and Declarations
Declaration of Conformity - CE1SCC303045D2702
DNV Certificate1SCC303138D0201
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3641606

ETIM for 1SCA108522R1001 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as maintenance-/service switch (EF006986) Yes
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Max. rated operation voltage Ue AC (EF007355) 1000 V
Rated operating voltage (EF001435) 1000 V
Rated permanent current at AC-23, 400 V (EF011777) 200 A
Rated permanent current at AC-21, 400 V (EF009165) 200 A
Rated short-time withstand current lcw (EF007050) 8 kA
Rated operation power at AC-23, 400 V (EF007027) 110 kW
Switching power at 400 V (EF009166) 110 kW
Number of poles (EF001391) 3
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Built-in device plug-in technique
Suitable for front mounting 4-hole (EF007247) Yes
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) Yes
Suitable for intermediate mounting (EF007264) No
Colour control element (EF007167) Black
Type of control element (EF006976) Long turning handle
Interlockable (EF006281) Yes
Type of electrical connection of main circuit (EF006819) Other
Degree of protection (IP), front side (EF003118) IP20
Degree of protection (NEMA) (EF011959) 1
