View larger
Images are for illustrative purposes only. Please refer to data sheet for details

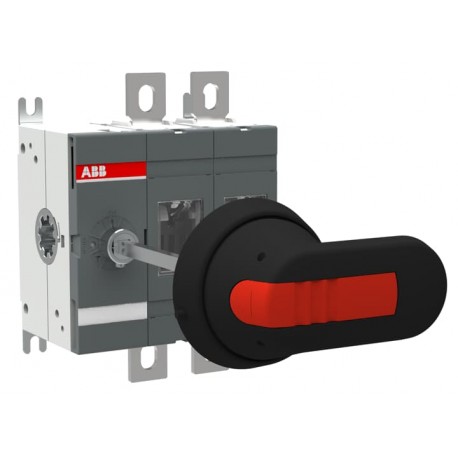

1SCA022751R1400 ABB OT200E02P switch-disconnector
1SCA022751R1400
022751
ABB
1 Pcs.
OT200E02P switch-disconnector
OT200E02P disconnect switch
OT200E02P SWITCH-DISCONNECTOR
Connectors > Switch disconnector
OT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC301117M0201 |
| Environmental Information | 1SCC301265D0201 |
| Environmental Product Declaration - EPD | 1SCC301282D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | b4367494-7a77-4d17-8e8c-bdcf047c62c8 Finland |
| Simplified SCIP | 68b996b4-df79-4502-ba5b-f69d9f8c5f7a Germany |
| 7f868849-df42-4fda-af9c-0ca4020622e2 Bulgaria | |
| 5780ebac-7c70-41ab-9782-611a132ca4a5 Sweden | |
| cc88e4d8-c173-477b-94cf-a14f34809e9f Greece | |
| dcd18244-fb5b-490a-93cd-283c7f39ac18 Portugal | |
| b2193ffe-10a3-4bd1-9453-393469da158d Czech Republic | |
| 3bf43b8b-d1bf-40e9-845c-b286569ee0c2 Poland | |
| f75cb7fc-a46f-45b8-b19e-98fede1e76aa France | |
| 77bc9782-fa4f-46f7-b34e-c9b331fd282c Germany | |
| cb2a516e-126a-4f14-8d20-d11ccaee39bc Hungary | |
| 7f7cf843-ebac-464d-9d80-b29a5615a59b Germany | |
| d76f0ab7-a78e-46d8-baef-7b93f89d372a Germany | |
| 65438115-8a09-4464-ac23-b697e13f78eb Croatia | |
| db2fe9e6-c018-4122-a2d0-59336e6f76c3 Poland | |
| ee33ddb0-8ed4-4113-9f03-3033baff4974 Italy | |
| cf18fe9a-636a-4278-ae48-8d9c7c147902 Hungary | |
| ad54c4f0-2910-49ea-b245-a30bfd29c3cf Estonia | |
| b66d22eb-3e59-4e50-92a1-66e9cbdad9eb Netherlands | |
| 8cdb7126-e0dc-4533-8843-598bba1d8694 Denmark | |
| f7816d72-04bf-42b1-962c-525793d6aff2 Norway | |
| 9c15ffbc-14f1-4256-93a4-52a280d167b6 France | |
| 2c81f5ba-c596-4be0-b33b-5747fbd00645 Sweden | |
| fa0a0c40-2435-4143-b624-bb5621a9d6c1 Germany | |
| 32c9322c-46a8-4df4-b9a7-a333b05ea27b Belgium | |
| 391d1949-73eb-408f-9b52-eb8beb52e279 Belgium | |
| c2981b1a-8b21-4926-9443-0e9acb825ab8 Spain | |
| 1589feb8-fd8f-451c-9f90-edc063d39b18 Poland | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC301031M0220 |
| Mechanical Drawings | 1SCC301390F0001 |
| 1SCC301199F0001 | |
| Environmental Product Declaration - EPD | 1SCC301282D0201 |
| Environmental | |
| Degree of Protection | Front IP00 |
| Environmental Information | 1SCC301265D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 110.5 mm |
| Product Net Height | 150 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 1 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| 6.7 in | |
| Package Level 1 Depth / Length | 190 mm |
| 7.5 in | |
| Package Level 1 Height | 145 mm |
| 5.7 in | |
| Package Level 1 Gross Weight | 1.2 kg |
| 2.6 lb | |
| Package Level 1 EAN | 6417019244273 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Degree of Protection | Front IP00 |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Mechanical Durability | 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 2P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 4.0 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| (1000 V) 200 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 60 kW |
| (400 ... 415 V) 110 kW | |
| (500 V) 132 kW | |
| (690 V) 200 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Special Functions | No |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 02 (Left Side) | |
| Terminal Type | Lug terminals |
| Tightening Torque | acc. IEC 60947-1 15 … 22 N·m |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 15 … 22 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC301337D0201 |
| Declaration of Conformity - CE | 1SCC301131D2705 |
| DNV GL Certificate | 1SCC301174D0204 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 200 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 200 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 200 A |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 110 kW |
| Switching power at 400 V (EF009166) | 110 kW |
| Number of poles (EF001391) | 2 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP00 |
| Degree of protection (NEMA) (EF011959) | Other |
