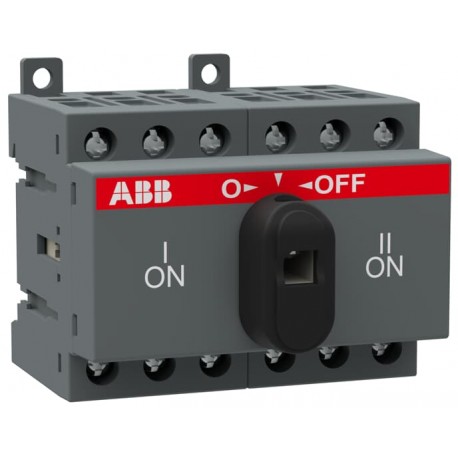

1SCA104816R1001 ABB OT16F3C CHANGE-OVER SWITCH
1SCA104816R1001
104816
ABB
1 Pcs.
OT16F3C CHANGE-OVER SWITCH
Switch OT16F3C
Connectors > Switch disconnector
OT_C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB OT16F3C CHANGE-OVER SWITCH facilitates reliable transfer of electrical loads between multiple circuits, ensuring uninterrupted power flow during manual source switching operations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Environmental Product Declaration - EPD: 1SCC301272D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Data Sheet, Technical Information: 1SCC303003C0201
- Instructions and Manuals: 1SCC301054M0006
- Degree of Protection: Front IP20
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country or Territory of Origin: Finland
- Product Net Width: 70 mm
- Product Net Height: 68 mm
- Product Net Depth / Length: 68 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Environmental Product Declaration - EPD | 1SCC301272D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC303003C0201 |
| Instructions and Manuals | 1SCC301054M0006 |
| Environmental Product Declaration - EPD | 1SCC301272D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 70 mm |
| 2.76 in | |
| Product Net Height | 68 mm |
| 2.68 in | |
| Product Net Depth / Length | 68 mm |
| 2.68 in | |
| Product Net Weight | 0.55 kg |
| 1.21 lb | |
| Container Information | |
| Package Level 1 Units | box 1 box |
| Package Level 1 Width | 80 mm |
| 3.15 in | |
| Package Level 1 Depth / Length | 108 mm |
| 4.25 in | |
| Package Level 1 Height | 79 mm |
| 3.11 in | |
| Package Level 1 Gross Weight | 0.25 kg |
| 0.55 lb | |
| Package Level 1 EAN | 6417019389608 |
| Technical | |
| Cable Cross-Section | 0.75 ... 10 mm² |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 25 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 25 A |
| Degree of Protection | Front IP20 |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Handle Type | Handle and shaft not included |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 0.3 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 16 A |
| (500 V) 16 A | |
| (690 V) 16 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 16 A |
| (500 V) 16 A | |
| (690 V) 16 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 16 A |
| (500 V) 16 A | |
| (690 V) 10 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 7.5 kW |
| (500 V) 7.5 kW | |
| (690 V) 7.5 kW | |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 0.5 kiloampere rms |
| Standards | UL 98 / IEC60947-3 |
| Switches Operating Mechanism | Mechanism on Top of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 0.8 N·m |
| Transition Type | Open |
| Technical UL/CSA | |
| Horsepower Rating UL/CSA | (acc. to UL 200 V) 3 Hp |
| (acc. to UL 208 V) 3 Hp | |
| (acc. to UL 240 V) 5 Hp | |
| (acc. to UL 480 V) 10 Hp | |
| (acc. to UL 600 V) 10 Hp | |
| Tightening Torque | acc. IEC 60947-1 0.8 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC303019D2702 |
| DNV Certificate | 1SCC303138D0201 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3601421 |
| E-Number (Norway) | 4363548 |
| E-Number (Sweden) | 3171260 |
