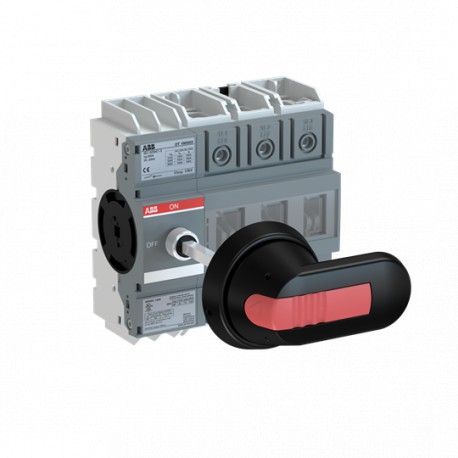

1SCA135139R1001 ABB Switch disconnector OT160G03P
1SCA135139R1001
135139
ABB
1 Pcs.
Switch disconnector OT160G03P
OT160G03P disconnect switch
OT160G03P SWITCH-DISCONNECTOR
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Switch disconnector OT160G03P from Abb provides reliable circuit isolation capabilities for industrial control panels, ensuring safe manual disconnection of electrical loads during servicing.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- End Of Life Disassembling Instructions: 1SCC301116M0201
- Environmental Information: 1SCC301267D0201
- Environmental Product Declaration - EPD: 1SCC301281D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: 6f064110-8ade-4356-9916-63b327acc3b7 Finland
- Simplified SCIP: 9695ceac-9a5e-47a3-9d10-913be99f61f2 Germany
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC301020C0201
- Instructions and Manuals: 1SCC301089M0204
- Mechanical Drawings: OT160G3_model.igs
- Degree of Protection: Front IP20
More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC301116M0201 |
| Environmental Information | 1SCC301267D0201 |
| Environmental Product Declaration - EPD | 1SCC301281D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 6f064110-8ade-4356-9916-63b327acc3b7 Finland |
| Simplified SCIP | 9695ceac-9a5e-47a3-9d10-913be99f61f2 Germany |
| 8765d64a-1254-4740-b28b-ffd01ce6515e Sweden | |
| 3681be30-0ecc-4559-922c-3b97a79d0da4 Poland | |
| b55c5251-02d9-435f-90e2-96ddfb56b519 Poland | |
| 092dd1c4-c806-46a2-bd5d-4041c5776f1e France | |
| e4ad0e9c-310a-4370-b58a-e9061e6a7bc7 Estonia | |
| 12544bfd-5174-4e17-a112-be5ff151b3e8 Bulgaria | |
| b2d74db4-ac58-4226-97f5-54e578e3be08 Greece | |
| d6258643-2026-405c-a2d4-f58707d1ac46 Croatia | |
| f6ed35dc-cfbc-4783-a265-c5cf8d8cd88b Portugal | |
| 0d3525da-aa66-47e6-9cd9-cc463adeb861 Sweden | |
| 32dc2de6-cd6e-400c-88f3-7907ffe5f316 Hungary | |
| 00a80986-0c31-4117-879b-c97b5019ae7b Czech Republic | |
| 5ba42181-654d-465d-ad59-eef68bc47e09 Netherlands | |
| 1bde6823-5682-419b-a3ff-cd201dea689d Germany | |
| 798c0614-8d5c-4122-82af-01d963ea7f64 Germany | |
| ce70bfa1-b9e0-4ae5-9535-37b4eaf61b49 Belgium | |
| 825bde5b-85ec-4c5d-8cf5-5abe0b98f0fa Norway | |
| 7d786ffd-c696-4ea2-9940-de8c6b33c784 Germany | |
| df72ae17-3e35-4c10-8169-240c0fae359d Poland | |
| e6f961a8-7c4e-4a38-91d9-7da31e97aeab Denmark | |
| 17fa4b90-0c59-4330-8af1-2fecb845eab4 Germany | |
| ad47b5c2-dead-418f-97d2-d1004114861f Italy | |
| 7a3eb990-9440-4f07-a1ff-711db106a55c Spain | |
| b8605eb2-93cc-4a46-8a90-f39401d925eb Belgium | |
| 6be34c1d-5dd5-49ea-8e37-e833145c84af France | |
| e328478e-18e3-4cda-b415-18eaef621254 Hungary | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC301089M0204 |
| Mechanical Drawings | OT160G3_model.igs |
| Environmental Product Declaration - EPD | 1SCC301281D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Environmental Information | 1SCC301267D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 123 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 73 mm |
| Product Net Weight | 0.9 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 160 mm |
| 6.3 in | |
| Package Level 1 Depth / Length | 244 mm |
| 9.6 in | |
| Package Level 1 Height | 96 mm |
| 3.8 in | |
| Package Level 1 Gross Weight | 1 kg |
| 2.3 lb | |
| Package Level 1 EAN | 6417019638706 |
| Technical | |
| Cable Cross-Section | Cu 10 ... 70 mm² |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 160 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | Front IP20 |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Mechanical Durability | 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front and Side |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Conditional Short-Circuit Current (Inc) | (200 A fuse, 500 V) 100 kA |
| (200 A fuse, 690 V) 50 kA | |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 45 kW |
| (400 ... 415 V) 75 kW | |
| (500 V) 90 kW | |
| (690 V) 132 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 12 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 4 kA |
| Special Functions | No |
| Standards | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 03 (Left Side) | |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 125 A |
| Horsepower Rating UL/CSA | (240 V AC) Single Phase 20 Hp |
| (440 ... 480 V AC) Single Phase 30 Hp | |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Tightening Torque UL/CSA | 53 in·lb |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC301336D0201 |
| ATEX Certificate | No certification needed |
| Declaration of Conformity - CE | 1SCC301210D2701 |
| DNV GL Certificate | 1SCC301174D0204 |
| UL Certificate | cULus certificate OT160G |
| VDE Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3638769 |
| E-Number (Norway) | 4372122 |
| E-Number (Sweden) | 3171058 |
