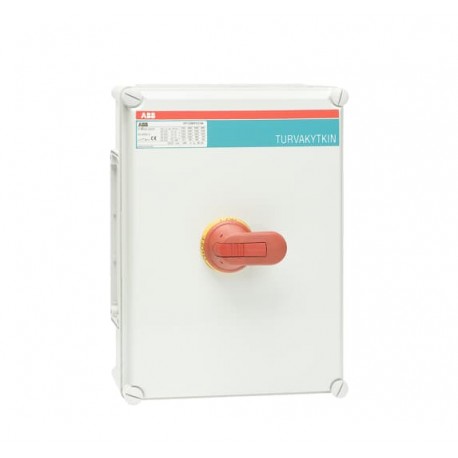

1SCA148618R1001 ABB OT160EVFCC4BA Enclosed Switch Disconnector

1SCA148618R1001

148618

ABB

1 Pcs.

OT160EVFCC4BA Enclosed Switch Disconnector Int. Box disconnector OT160EVFCC4BA

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built for demanding environments, the ABB 1SCA148618R1001 enclosed switch disconnector delivers secure power isolation in external or harsh industrial areas. Enclosed disconnect units prevent dust and moisture ingress while offering reliable manual switching for plant equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC340076D0201
  • RoHS Declaration: 1SCC340075D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • SCIP: 93c60c04-3b82-4664-aab9-099e89c375cb Finland
  • Simplified SCIP: 9ac9a203-f5dc-4b6c-a26d-a5f1ecc7e964 Germany
  • Toxic Substances Control Act - TSCA: 1SCC340095D0201
  • Data Sheet, Technical Information: 1SCC340015C0201
  • Instructions and Manuals: 1SCC340015M0004
  • Degree of Protection: acc. to IEC 60529 IP65
  • Pollution Degree: 3
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85363090
  • Country or Territory of Origin: Finland
  • Product Net Width: 280 mm
  • Product Net Height: 380 mm

More info

▲
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC340076D0201
RoHS Declaration1SCC340075D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP93c60c04-3b82-4664-aab9-099e89c375cb Finland
Simplified SCIP9ac9a203-f5dc-4b6c-a26d-a5f1ecc7e964 Germany
3e7db927-c80d-477b-a8a1-5865dfd7cb52 Bulgaria
ed9e2c1f-beae-4751-bcad-2991727f1459 Portugal
78fcfda7-ba94-4ed1-9da5-93b25f6fac24 Greece
1ac8a7a5-9b9b-48d6-95c1-c2bc31b4b473 Germany
007ac8b8-c982-4bf8-be5b-e128a179c1a4 Croatia
ae08297c-93d3-4bc9-8e1a-5104a27b709f Belgium
267c1235-6bac-4bf9-8b05-7793834a1bd6 Czech Republic
a62bee1a-06d7-4632-9923-d1b70656ac82 Germany
9d3f76e0-81bb-4913-8ba4-089aee9b2fe2 Germany
82baf134-c2ea-4a2c-b785-73e3e19d4cbd France
5a724cd4-04be-4840-83de-583ce80d5bd0 Hungary
f46fbad1-442f-44cf-9ebe-d3cda64727c1 Belgium
a9a85f54-5f9e-45bd-984e-40c371a1cb41 Germany
816a1718-8671-4761-a885-293a6f01eea8 Hungary
611bb337-225a-4720-af9e-ed4fe4da9765 Estonia
a4574028-e1ac-4da2-b071-e6cb70a6425b Poland
c400ee11-4bfd-40f3-b05d-179bfaf6c6b8 Sweden
755caace-982d-40e3-a4cd-0981f40daaae Italy
d091fde7-be1f-4137-b745-cb2e72d9623b Netherlands
3a16fd57-fd09-44c4-8db4-31bd9b50c3db Denmark
053a0454-3354-4992-9435-042e6e8aeb8e Poland
e8a65979-2eca-4e87-84f3-bc1151ccccde France
c53785be-9fce-4114-bc6c-d59bb04b8010 Sweden
23395312-3655-493f-ae0d-fccb2adf338d Norway
bd2cd1cf-2a88-4c58-9e3f-790004b52fb3 Spain
dea5bd55-9bdf-4da9-b232-885c1c6620d9 Poland
Toxic Substances Control Act - TSCA1SCC340095D0201
Popular Downloads
Data Sheet, Technical Information1SCC340015C0201
Instructions and Manuals1SCC340015M0004
Environmental
Degree of Protectionacc. to IEC 60529 IP65
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363090
Country or Territory of OriginFinland
Dimensions
Product Net Width280 mm
Product Net Height380 mm
Product Net Depth / Length130 mm
Product Net Weight4.3 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width295 mm
Package Level 1 Depth / Length510 mm
Package Level 1 Height265 mm
Package Level 1 Gross Weight5.4 kg
Package Level 1 EAN6417019781488
Technical
Cable Entry PositionTop/Bottom
Cable Outlets Per SideII-flange / II-flange
Connecting Capacity Main CircuitHole Diameter 8 mm
Screw Clamp / PE Terminal 2pc,10 ... 70 mm²
Conventional Thermal Current (Ithe)Fully Enclosed 160 A
Degree of Protectionacc. to IEC 60529 IP65
Enclosure MaterialPlastic
Enclosure TypeFibox
Handle ColorRed / Yellow
Handle TypePistol handle
Impact Resistance RatingHousing IK08
Maximum Mounted Auxiliary Contacts2 NO, 2 NC
Mounted Auxiliary Contacts0 NO, 0 NC
Neutral TypeSwitchable Neutral
Number of Auxiliary Contacts NC0
Number of Auxiliary Contacts NO0
Number of Poles4P
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Rated Conditional Short-Circuit Current (Inc)40.5 kA
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 160 A
(690 V) 160 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 160 A
(500 V) 160 A
(690 V) 160 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 88 kW
(500 V) 112 kW
(690 V) 144 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)(1000 V AC) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 8 kA
Recommended Screw DriverMain Circuit M8
StandardsIEC 60947-1, -3
Terminal TypeBolt
Tightening TorqueMain Circuit 6 N·m
Technical UL/CSA
Recommended Screw DriverMain Circuit M8
Tightening TorqueMain Circuit 6 N·m
Certificates and Declarations
Declaration of Conformity - CE1SCC340001D2703
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122205
IDEA Granular Category Code (IGCC)5166 >> Safety switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

Product Datasheet
