View larger
Images are for illustrative purposes only. Please refer to data sheet for details

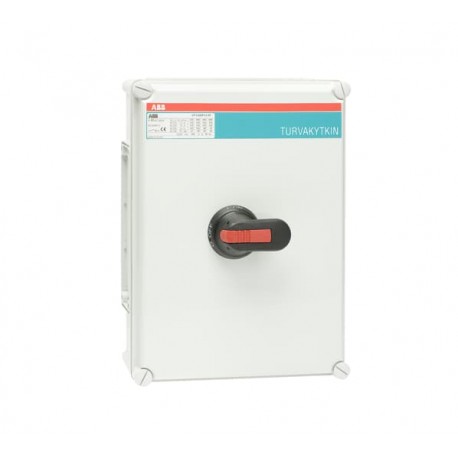

1SCA148617R1001 ABB OT160EVFCC4B Enclosed Switch Disconnector
1SCA148617R1001
148617
ABB
1 Pcs.
OT160EVFCC4B Enclosed Switch Disconnector
Int. Box Disconnector OT160EVFCC4B
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 836d01f7-a5c2-4f8c-8ca7-159a1f9350e7 Finland |
| Simplified SCIP | 6cc02ee2-7881-4901-a000-f9aa7f89e81f Germany |
| a6afeede-e310-4f60-9c52-8526d2a65101 Germany | |
| 246101a1-7976-47f4-9c56-aa4f74395bbf Bulgaria | |
| b9663c50-24ac-459f-8a3d-5a84a375c75a Portugal | |
| 46addbc4-353c-4b11-a241-32383e6fc891 Hungary | |
| 0b44ea46-81bb-48d4-b5c7-7bd6c4404bf5 France | |
| 9368ad7e-f7d2-4b82-acdc-38cbcead27f4 Belgium | |
| dc4e034c-6ce3-4a89-a0e8-2cd7cb99a1b4 Italy | |
| bc9b7187-6644-4c4e-bd16-6f50d418a3a7 Estonia | |
| 2969f25f-981c-4a5b-9fbf-62bac9813532 Poland | |
| d9cbd944-b2d0-4f20-ba22-6f86f7f7d273 France | |
| 58d88051-d5ec-41fc-8d93-5226fe3af1e0 Sweden | |
| b12695f4-a4cc-4241-9786-5f00c009f2c4 Poland | |
| c830b9c4-5bf3-45fd-a123-1b897d7632c7 Netherlands | |
| 812df86a-3a1d-41a1-a132-3ad819fcfac2 Hungary | |
| 792b8ee3-a5aa-489b-8009-084bd55bb033 Denmark | |
| c89d26e9-fc58-4ae7-9df2-eb25c1be6554 Sweden | |
| 5afb1ec3-c924-4a99-be83-97294c19a054 Croatia | |
| 654e173c-c692-4c18-87e4-361455b65338 Germany | |
| dfc1dea5-ba5a-4304-8d4a-487038986549 Germany | |
| bc75a76a-401a-42da-99fe-1fdf68b4e8d8 Czech Republic | |
| 2daa3632-287d-453e-ab8a-dd9eda0c3c03 Germany | |
| 100a0c5e-6bf2-45bc-908f-0beef8dd8526 Norway | |
| 8629953f-f85d-483c-aa03-87bd53362d9e Belgium | |
| 3557517d-b4b5-4a44-be4c-bc6ca53ba1af Spain | |
| 7f47844b-dda6-4c83-b21f-5f7c925ddb8c Poland | |
| cdd39bc2-d169-43c2-a8f4-e2de9f81e52d Greece | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340015M0004 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 380 mm |
| Product Net Depth / Length | 130 mm |
| Product Net Weight | 4.3 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 295 mm |
| Package Level 1 Depth / Length | 510 mm |
| Package Level 1 Height | 265 mm |
| Package Level 1 Gross Weight | 5.4 kg |
| Package Level 1 EAN | 6417019781471 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | II-flange / II-flange |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm |
| Screw Clamp / PE Terminal 2pc,10 ... 70 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Plastic |
| Enclosure Type | Fibox |
| Handle Color | Black |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Switchable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 4P |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A |
| (690 V) 160 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 88 kW |
| (500 V) 112 kW | |
| (690 V) 144 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Bolt |
| Tightening Torque | Main Circuit 6 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M8 |
| Tightening Torque | Main Circuit 6 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340001D2703 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 160 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 160 A |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 88 kW |
| Switching power at 400 V (EF009166) | 88 kW |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
