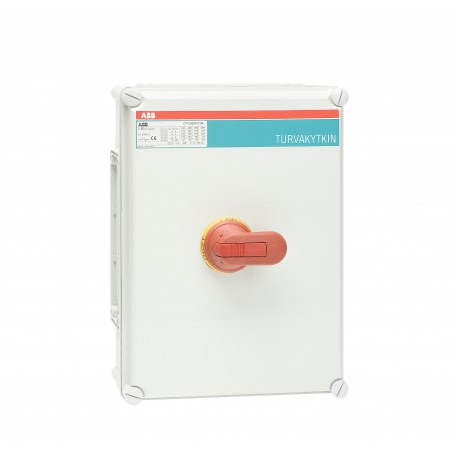

1SCA148616R1001 ABB OT160EVFCC3BA Enclosed Switch Disconnector
1SCA148616R1001
148616
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb 1SCA148616R1001 enclosed switch disconnector provides secure manual disconnection and safety isolation for commercial or industrial machinery installations. Housed in a protective enclosure, this unit prevents accidental contact with live electrical circuits during servicing.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC340076D0201
- RoHS Declaration: 1SCC340075D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: 5e3f4396-4401-4fe6-a2b0-aad70d57c34a Finland
- Simplified SCIP: f4df3c2d-6f87-4512-95e1-37e3f6c31402 Germany
- Toxic Substances Control Act - TSCA: 1SCC340095D0201
- Data Sheet, Technical Information: 1SCC340015C0201
- Instructions and Manuals: 1SCC340015M0004
- Degree of Protection: acc. to IEC 60529 IP65
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85363090
- Country or Territory of Origin: Finland
- Product Net Width: 280 mm
- Product Net Height: 380 mm
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 5e3f4396-4401-4fe6-a2b0-aad70d57c34a Finland |
| Simplified SCIP | f4df3c2d-6f87-4512-95e1-37e3f6c31402 Germany |
| e6e764c0-72bb-4ca2-a209-d65ddeadf5b0 Germany | |
| 3815073e-df91-46c5-93a0-4a1c9b0cf7e0 Bulgaria | |
| 0651a0f2-f385-4b3b-ac17-8cfac104dbac Portugal | |
| 3d58b7b3-97c7-468b-abc7-324d1fc99170 Hungary | |
| 1909c201-f878-46a0-93a0-4ca3bfceba97 France | |
| d57f8e3c-f43e-417a-bbe2-0510c4edade3 Germany | |
| 687babbb-555d-4cc9-9ff8-d1a525dd39bd Belgium | |
| 25040dc4-32db-45cc-9973-6a22b5503e3a Italy | |
| 84030b86-3fee-401b-9c63-c80b624cad29 Estonia | |
| 9d921a84-e97a-4fc6-9492-040b1d5d25fb Greece | |
| 1ca3f963-cc3b-472d-804d-efe27b2bc45d Poland | |
| cfef3721-4ae0-4d57-b5bd-3ab583aa6097 France | |
| 50509a61-5580-4101-a762-119cf92d0486 Sweden | |
| 3adfe753-ebfc-47ae-b8f7-656d1fadf1f0 Poland | |
| bf940edf-66eb-4ab8-a28c-771fd3597e3d Netherlands | |
| 63ebcd92-6124-44c7-b3b6-5dfacf937d85 Hungary | |
| 36a932e0-2b04-49ea-9c9d-bc9f9a46936d Denmark | |
| 62f9cb7d-3407-4722-88f1-4c597dac0fa5 Sweden | |
| 225baefb-fd72-40dc-a631-b1e00561f31e Poland | |
| 9d0607c0-22b4-4c39-bf43-b3372bd8278a Spain | |
| 24727686-b9d8-4450-ba7c-f2d6456c228d Belgium | |
| 46b454c9-4554-4aac-8db8-d180ec311280 Norway | |
| 87a71766-0202-4f3b-b61a-88618bb900a1 Germany | |
| 6313f7b7-6d15-4d53-9de5-00da95b57556 Croatia | |
| 5ac65831-7f90-46c8-8f20-c0c1a8137372 Czech Republic | |
| 837a7c7a-8c6e-44f8-8335-95ae0574aed9 Germany | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340015M0004 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 380 mm |
| Product Net Depth / Length | 130 mm |
| Product Net Weight | 4 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 295 mm |
| Package Level 1 Depth / Length | 510 mm |
| Package Level 1 Height | 265 mm |
| Package Level 1 Gross Weight | 5.1 kg |
| Package Level 1 EAN | 6417019781464 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | II-flange / II-flange |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm |
| Screw Clamp / PE Terminal 2pc,10 ... 70 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Plastic |
| Enclosure Type | Fibox |
| Handle Color | Red / Yellow |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Detachable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A |
| (690 V) 160 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 88 kW |
| (500 V) 112 kW | |
| (690 V) 144 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Bolt |
| Tightening Torque | Main Circuit 6 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M8 |
| Tightening Torque | Main Circuit 6 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340001D2703 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
