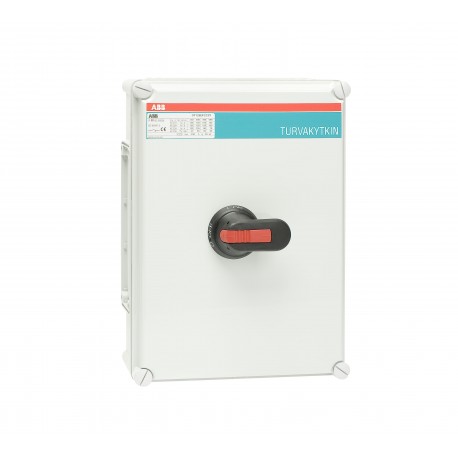

ABB 1SCA148615R1001 1SCA148615R1001 ABB OT160EVFCC3B Enclosed Switch Disconnector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA148615R1001 ABB OT160EVFCC3B Enclosed Switch Disconnector

1SCA148615R1001

148615

ABB

1 Pcs.

OT160EVFCC3B Enclosed Switch Disconnector Int. Box disconnector OT160EVFCC3B

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC340076D0201
RoHS Declaration1SCC340075D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIPad9bca79-7291-4f29-909e-00c2f2053c23 Finland
Simplified SCIPd1ffd826-24bf-4950-8ce1-de3ce8cf2eed Germany
d26f10d4-dc16-4900-91f4-077f19fc9bbf Greece
3b00b5b8-a796-4d29-a506-9281d31e7673 Portugal
2727ffb3-914c-4db8-91af-3e371fe66638 Czech Republic
7cce01dc-7b5c-492c-bb5e-b1704e4bc588 Germany
cff6d282-df8f-4f7a-a841-70f727f83630 Germany
b59fe68d-9cc3-4be5-92ff-ab2f886e75d8 France
e3e1a329-8eb4-4f52-b424-6dd6ea183d9a Croatia
2c72c8ae-4eee-4ded-ad35-1d38dca80752 Germany
d32040a1-9459-4393-9ba7-2362f8689471 Belgium
36ebfbe9-e1de-4870-9af8-43529aca09f8 Germany
f43fea9d-20e9-4b54-a3f6-0bddafea0fad Estonia
1f7c331f-27ff-4aaa-81fa-42c0e12fde22 Belgium
d58f4a69-72fa-4290-aa23-bb7640dcc775 Sweden
b7ec78bc-72ee-484f-8f75-2e272fc492d4 Poland
a19bdeae-597d-4098-a75b-85ba149ee011 Hungary
988dc48a-79cd-45e7-b242-8c1baa7d4c98 Italy
a4f849c2-bff6-4d5f-9b3f-8abbfef5db42 Netherlands
fce314c2-8c73-4023-983f-a0c1693cecfa Hungary
2adff9c4-3901-4f11-b8d6-2ce833c003eb Denmark
ee700bb7-687f-4d04-b509-bf1c3c23bc05 Poland
e3204b3e-570d-4890-9e07-0d98ca7dc6e5 Poland
6dbe76ab-9cf4-4f76-9d33-9b4e605f89f0 Sweden
277b045c-1584-4004-92f3-d397507353f3 France
2fd8aa60-8c62-41e1-9076-58aa6beb2c36 Bulgaria
3462d784-06cf-4764-bb9b-80a55b399baa Spain
77016c48-eda0-4c96-b1e3-b8def9507de1 Norway
Toxic Substances Control Act - TSCA1SCC340095D0201
Popular Downloads
Data Sheet, Technical Information1SCC340015C0201
Instructions and Manuals1SCC340015M0004
Environmental
Degree of Protectionacc. to IEC 60529 IP65
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363090
Country or Territory of OriginFinland
Dimensions
Product Net Width280 mm
Product Net Height380 mm
Product Net Depth / Length130 mm
Product Net Weight4 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width295 mm
Package Level 1 Depth / Length510 mm
Package Level 1 Height265 mm
Package Level 1 Gross Weight5.1 kg
Package Level 1 EAN6417019781457
Technical
Cable Entry PositionTop/Bottom
Cable Outlets Per SideII-flange / II-flange
ColorRAL7032..7035
Connecting Capacity Main CircuitHole Diameter 8 mm
Screw Clamp / PE Terminal 2pc,10 ... 70 mm²
Conventional Thermal Current (Ithe)Fully Enclosed 160 A
Degree of Protectionacc. to IEC 60529 IP65
Enclosure MaterialPlastic
Enclosure TypeFibox
Handle ColorBlack
Handle TypePistol handle
Impact Resistance RatingHousing IK08
Maximum Mounted Auxiliary Contacts2 NO, 2 NC
Mounted Auxiliary Contacts0 NO, 0 NC
Neutral TypeDetachable Neutral
Number of Auxiliary Contacts NC0
Number of Auxiliary Contacts NO0
Number of Poles3P
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Rated Conditional Short-Circuit Current (Inc)40.5 kA
Rated Insulation Voltage (Ui)750 V
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 160 A
(690 V) 160 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 160 A
(500 V) 160 A
(690 V) 160 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 88 kW
(500 V) 112 kW
(690 V) 144 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)(1000 V AC) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 8 kA
Recommended Screw DriverMain Circuit M8
StandardsIEC 60947-1, -3
Terminal TypeBolt
Tightening TorqueMain Circuit 6 N·m
Technical UL/CSA
Recommended Screw DriverMain Circuit M8
Tightening TorqueMain Circuit 6 N·m
Certificates and Declarations
Declaration of Conformity - CE1SCC340001D2703
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122205
IDEA Granular Category Code (IGCC)5166 >> Safety switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
