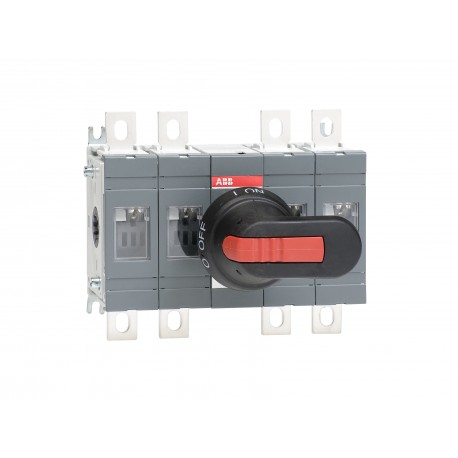

ABB 1SCA120537R1001 1SCA120537R1001 ABB OT160EV22P switch-disconnector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA120537R1001 ABB OT160EV22P switch-disconnector

1SCA120537R1001

120537

ABB

1 Pcs.

OT160EV22P switch-disconnector OT160EV22P disconnect switch OT160EV22P SWITCH-DISCONNECTOR

Connectors > Switch disconnector
OT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
End Of Life Disassembling Instructions1SCC301117M0201
Environmental Information1SCC301265D0201
Environmental Product Declaration - EPD1SCC301282D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP30e3b4f5-a7d2-41e9-b139-b85489727fca Finland
Simplified SCIP1db14216-144f-482c-b6e4-17266a8cc72e Germany
1daec6ed-79bb-4f9c-aafe-1c2dfa27a2f3 Portugal
70947fed-4f6f-41bf-981b-0a5d6cf0b01f Greece
2820ef9e-6dc2-44de-8a77-d992d0553f40 Denmark
4356ab47-319c-4606-8944-1961d57326fe Estonia
ba4c0a78-7ab0-41ae-97be-d1d355d95223 Poland
14fb4b76-606f-445a-9b98-6532f2ff6522 Croatia
2c31c37e-a8ba-45b6-b845-d48d05326d36 Poland
e7916974-cd10-421d-88f0-1278a7b79c61 Czech Republic
aa3a57f8-4f6d-4a8c-8536-782e40acc798 Germany
d83beddc-7152-4c4e-a0c0-ad89155adc81 Germany
b2f3501c-a3b6-4ce8-8ac9-f8542ae85a35 Hungary
3e527529-87f8-4e67-815c-21fafe79f60f France
04b78ee5-3410-483c-a247-fa6543fabe3a Sweden
59622a76-39e3-4c8b-973b-58aed9955b66 France
9b90e31c-8e96-4a1e-bbc3-39071591fd84 Germany
0ed7c7eb-539e-4553-8d63-8561066a90b0 Italy
927b4667-24d5-4e4d-99b5-0c64dc254f55 Belgium
e5e23bdb-c150-453c-b200-54b17dbca432 Hungary
c6f18315-dd8b-493e-868e-55d9193696ff Netherlands
c9e35348-becb-4c2b-86ae-6667ad179353 Bulgaria
f8beb87a-61a8-457e-8975-0f148049bf01 Sweden
00b0371c-5b65-437b-b523-808e697013fe Norway
c08572a6-7ec4-4a5d-bb68-2044ec9b8b2b Spain
fc1a9dfe-375a-40d3-a780-c275e61aa35c Poland
41a6b21c-161c-4638-ba40-aa332e3815e1 Belgium
f8690d28-7600-47ab-84da-35e75842fd8b Germany
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC301031M0220
Mechanical Drawings1SCC301232F0001
1SCC301231F0001
OT200-250E22.igs
Environmental Product Declaration - EPD1SCC301282D0201
Environmental
Degree of ProtectionFront IP00
Environmental Information1SCC301265D0201
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width185.5 mm
Product Net Height150 mm
Product Net Depth / Length82.5 mm
Product Net Weight1.7 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width170 mm
6.69 in
Package Level 1 Depth / Length190 mm
7.48 in
Package Level 1 Height145 mm
5.71 in
Package Level 1 Gross Weight2.1 kg
0.93 lb
Package Level 1 EAN6417019520049
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)Fully Enclosed 160 A
Degree of ProtectionFront IP00
Distance Between PhasesStandard
Fourth Pole PositionRight Side
Fourth Pole TypeSwitched - Simultaneous Function
Handle ColorBlack
Handle TypeHandle and shaft included
Mechanical Durability20000
Mounting TypeBase mounting
Number of Poles4P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 3.2 W
Rated Conditional Short-Circuit Current (Inc)(315 A fuse, 500 V) 100 kA
(355 A fuse, 690 V) 80 kA
(250 A fuse, 690 V) 100 kA
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 160 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 160 A
(500 V) 160 A
(690 V) 160 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 48 kW
(400 ... 415 V) 88 kW
(500 V) 112 kW
(690 V) 144 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 8 kA
Special FunctionsNo
StandardsIEC 60947-3
Switches Operating MechanismMechanism Between the Poles
22 (Between the Poles)
Terminal TypeLug terminals
Tightening Torqueacc. IEC 60947-1 15 … 22 N·m
Technical UL/CSA
Tightening Torqueacc. IEC 60947-1 15 … 22 N·m
Certificates and Declarations
A2L Certificate – IEC1SCC301337D0201
ATEX CertificateNo certification needed
Declaration of Conformity - CE1SCC301131D2705
DNV GL Certificate1SCC301174D0204
UL CertificateNo certification needed
VDE CertificateNo certification needed
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122221
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3601365
E-Number (Sweden)3170911
