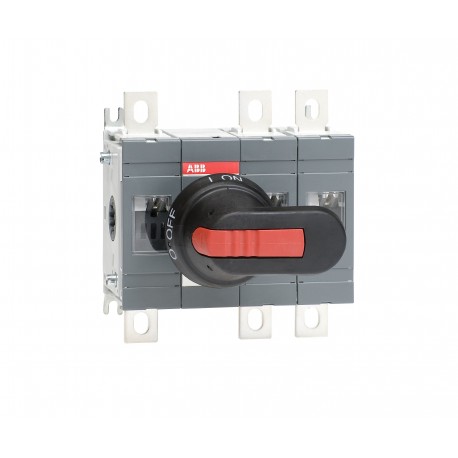

1SCA120529R1001 ABB OT160EV12P switch-disconnector
1SCA120529R1001
120529
ABB
1 Pcs.
Connectors > Switch disconnector
OT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SCA120529R1001 ABB OT160EV12P switch-disconnector is a heavy-duty mechanical switching device deployed in electrical switchgear to safely open and close circuits under load conditions. Such components provide visual isolation and protect personnel during maintenance work on commercial and industrial power distribution networks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- End Of Life Disassembling Instructions: 1SCC301117M0201
- Environmental Information: 1SCC301265D0201
- Environmental Product Declaration - EPD: 1SCC301282D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: cd4700c3-cc64-4d9b-8e03-12ab9905205b Finland
- Simplified SCIP: eddbcc69-8541-4193-adb0-e65ec41261ab Germany
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC301020C0201
- Instructions and Manuals: 1SCC301031M0220
- Mechanical Drawings: 1SCC301228F0001
- Environmental Product Declaration - EPD: 1SCC301282D0201
- Degree of Protection: Front IP00
- Environmental Information: 1SCC301265D0201
More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC301117M0201 |
| Environmental Information | 1SCC301265D0201 |
| Environmental Product Declaration - EPD | 1SCC301282D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | cd4700c3-cc64-4d9b-8e03-12ab9905205b Finland |
| Simplified SCIP | eddbcc69-8541-4193-adb0-e65ec41261ab Germany |
| 56c27b95-5c54-41ac-9d8a-afbacec35fdc Sweden | |
| c9ebde99-6141-4d62-8ca9-d423f23302f5 Germany | |
| 90fc654a-8b46-4824-9bb9-d738dcd52829 Bulgaria | |
| dcd43197-8cb2-4520-9a4a-9c9c2ab68e2a Norway | |
| d1851749-b9b5-4531-963b-ccb05e925a5d Poland | |
| 4faefdc1-06ab-4744-a6ca-b0186e4afca0 France | |
| 507975fc-7746-4295-8f14-d8380d58c7c4 Germany | |
| ce306f9f-0ad5-4974-9736-670e26ebfdb1 Hungary | |
| 6785ab9d-f752-4d1d-9885-e1ad61a36dd1 Germany | |
| 3e11d6d9-6205-468c-8064-1e1da8ec6e0f Belgium | |
| c638e0f9-5710-496b-9627-81f6b4adc85c Denmark | |
| b7fd84a4-2aa5-4630-998a-f3cdaabaf9e2 Poland | |
| df67ea0e-58a1-4d6b-8991-1e6218ca8acf France | |
| 3107a5dc-c45a-4eba-973c-57fd3cae5fa0 Sweden | |
| 5f9555fe-2d10-4379-a447-c50bb05286b0 Italy | |
| 29c959e4-dc5e-4303-b558-c0c3d6aefd38 Hungary | |
| 1d160afd-c67e-44ac-826c-8a8c23220e75 Netherlands | |
| 8ede37cd-53ca-40f3-9d00-d060df8fcfab Estonia | |
| 314fa62d-1722-47bc-aafa-b1cec1550811 Belgium | |
| d55c339a-f23b-4626-9a16-7cd988bc9a82 Spain | |
| 3be513b9-46aa-41e2-860d-3af891a80aa5 Poland | |
| e0c1eb6d-c817-4992-920d-5aaa8b3eb90d Greece | |
| b402be91-e6bd-4dfd-9e5d-46055f02c5e8 Portugal | |
| 8c4ddaf2-d16d-4458-9583-6d8fe307bb61 Germany | |
| 8b8c68a5-10c5-4ecc-9fb6-78a687a86ba5 Croatia | |
| b6a510fa-7d48-4dbf-a0d9-9772b31322be Czech Republic | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC301031M0220 |
| Mechanical Drawings | 1SCC301228F0001 |
| 1SCC301227F0001 | |
| OT200-250E12.igs | |
| Environmental Product Declaration - EPD | 1SCC301282D0201 |
| Environmental | |
| Degree of Protection | Front IP00 |
| Environmental Information | 1SCC301265D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 150.5 mm |
| Product Net Height | 150 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 1.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| 6.7 in | |
| Package Level 1 Depth / Length | 190 mm |
| 7.5 in | |
| Package Level 1 Height | 145 mm |
| 5.7 in | |
| Package Level 1 Gross Weight | 1.6 kg |
| 3.6 lb | |
| Package Level 1 EAN | 6417019519906 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | Front IP00 |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Mechanical Durability | 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 3.2 W |
| Rated Conditional Short-Circuit Current (Inc) | (315 A fuse, 500 V) 100 kA |
| (355 A fuse, 690 V) 80 kA | |
| (250 A fuse, 690 V) 100 kA | |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 160 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 48 kW |
| (400 ... 415 V) 88 kW | |
| (500 V) 112 kW | |
| (690 V) 144 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Special Functions | No |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism Between the Poles |
| 12 (Between the Poles) | |
| Terminal Type | Lug terminals |
| Tightening Torque | acc. IEC 60947-1 15 … 22 N·m |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 15 … 22 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC301337D0201 |
| ATEX Certificate | No certification needed |
| Declaration of Conformity - CE | 1SCC301131D2705 |
| DNV GL Certificate | 1SCC301174D0204 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122221 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3601364 |
| E-Number (Sweden) | 3170910 |
