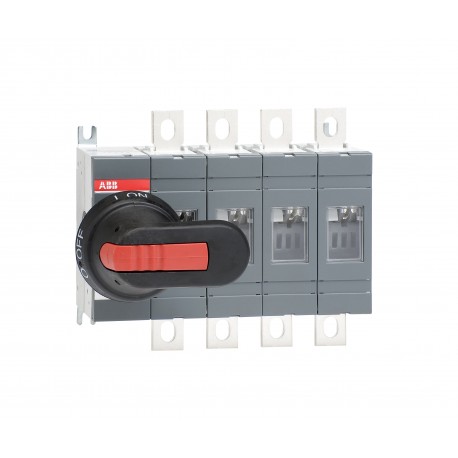

ABB 1SCA120521R1001 1SCA120521R1001 ABB OT160EV04P switch-disconnector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA120521R1001 ABB OT160EV04P switch-disconnector

1SCA120521R1001

120521

ABB

1 Pcs.

OT160EV04P switch-disconnector Disconnect switch OT160EV04P OT160EV04P SWITCH-DISCONNECTOR

Connectors > Switch disconnector
OT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
End Of Life Disassembling Instructions1SCC301117M0201
Environmental Information1SCC301265D0201
Environmental Product Declaration - EPD1SCC301282D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIPe0cef3eb-e6c3-45f9-8407-c80fa927bf67 Finland
Simplified SCIPfe80c05c-0e71-4f31-9b3a-438c552d309a Germany
fec9e1a9-3535-4c0f-a528-860954b8a043 Belgium
be0cf627-9d67-41c4-8911-c8dec8491911 Germany
9caef3f6-7e03-4cb0-b575-d633be92a3d5 Poland
51d6fe93-cf31-410b-a81f-501ae5356cb0 Portugal
e6d106b3-262a-4189-ba94-84df46c65b97 Germany
161c4189-9698-4faa-9d47-d11f67184ca1 Denmark
d8cea15f-6de0-43d7-96da-eb8a98123d61 Sweden
ee29284e-d4e1-4381-97c4-8ac0ca48784e Bulgaria
bab05d7d-6109-48e4-af54-a52f9a63b222 Hungary
983d5d2f-4c9a-4b4c-b93f-106ef14b90e7 Germany
8d4804a3-772c-4d60-872d-96968e099364 France
42688e77-51f3-4c9e-9b63-8254ada59840 Italy
c548ee56-11d8-497f-8a14-b2ee4899c277 France
2b72a278-6f6c-449f-9d15-1643e4e3c2ad Hungary
b6074b1e-99d2-44ad-b8fe-d7e606e7df68 Netherlands
268a5918-eb77-45fa-8e60-2a096270be0e Estonia
6df6ffe6-d234-4ccc-ae4a-c04e59f85ea7 Germany
70552012-3aac-4724-8256-ccf95de292f3 Sweden
6bb7bcbb-bca8-4eb2-9f09-71ba54527550 Spain
c9217f8a-1c27-44ef-be30-f1db2d4597eb Belgium
2fa2a735-3eda-4e48-9193-b437aeb84e22 Norway
ad789792-1f70-41f8-a6cc-2dda77580123 Poland
6bfd1747-4f9a-4c8b-8738-b47c74d9bbd2 Poland
775e805f-42b5-44af-8f19-088e6e70aa9d Czech Republic
7c083bf5-3c9f-4675-a6d9-5ea442d15eba Greece
3ec81bf3-3b5e-4049-ba04-2d0ed15923f9 Croatia
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC301031M0220
Mechanical Drawings1SCC301392F0001
1SCC301201F0001
OT200-250E04.igs
Environmental Product Declaration - EPD1SCC301282D0201
Environmental
Degree of ProtectionFront IP00
Environmental Information1SCC301265D0201
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width180.5 mm
Product Net Height150 mm
Product Net Depth / Length82.5 mm
Product Net Weight1.7 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width170 mm
6.69 in
Package Level 1 Depth / Length190 mm
7.48 in
Package Level 1 Height145 mm
5.71 in
Package Level 1 Gross Weight2.1 kg
0.93 lb
Package Level 1 EAN6417019519814
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)Fully Enclosed 160 A
Degree of ProtectionFront IP00
Distance Between PhasesStandard
Fourth Pole PositionRight Side
Fourth Pole TypeSwitched - Simultaneous Function
Handle ColorBlack
Handle TypeHandle and shaft included
Mechanical Durability20000
Mounting TypeBase mounting
Number of Poles4P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 3.2 W
Rated Conditional Short-Circuit Current (Inc)(315 A fuse, 500 V) 100 kA
(355 A fuse, 690 V) 80 kA
(250 A fuse, 690 V) 100 kA
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 160 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 160 A
(500 V) 160 A
(690 V) 160 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 48 kW
(400 ... 415 V) 88 kW
(500 V) 112 kW
(690 V) 144 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 8 kA
Special FunctionsNo
StandardsIEC 60947-3
Switches Operating MechanismMechanism at the End of the Switch
04 (Left Side)
Terminal TypeLug terminals
Tightening Torqueacc. IEC 60947-1 15 … 22 N·m
Technical UL/CSA
Tightening Torqueacc. IEC 60947-1 15 … 22 N·m
Certificates and Declarations
A2L Certificate – IEC1SCC301337D0201
ATEX CertificateNo certification needed
Declaration of Conformity - CE1SCC301131D2705
DNV GL Certificate1SCC301174D0204
UL CertificateNo certification needed
VDE CertificateNo certification needed
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3601363
E-Number (Sweden)3170909

ETIM for 1SCA120521R1001 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as maintenance-/service switch (EF006986) Yes
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Max. rated operation voltage Ue AC (EF007355) 1000 V
Rated operating voltage (EF001435) 1000 V
Rated permanent current Iu (EF001389) 160 A
Rated permanent current at AC-23, 400 V (EF011777) 160 A
Rated permanent current at AC-21, 400 V (EF009165) 200 A
Rated short-time withstand current lcw (EF007050) 8 kA
Rated operation power at AC-23, 400 V (EF007027) 88 kW
Switching power at 400 V (EF009166) 88 kW
Conditioned rated short-circuit current Iq (EF001444) 100 kA
Number of poles (EF001391) 4
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Complete device in housing
Suitable for front mounting 4-hole (EF007247) No
Suitable for front mounting centre (EF007248) No
Colour control element (EF007167) Black
Type of control element (EF006976) Long turning handle
Interlockable (EF006281) No
Type of electrical connection of main circuit (EF006819) Bolt connection
Degree of protection (IP), front side (EF003118) IP00
Degree of protection (NEMA) (EF011959) Other
