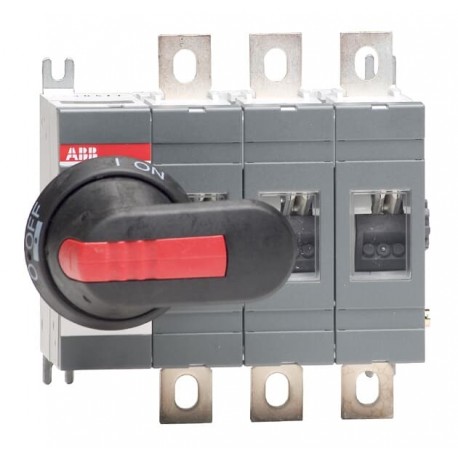

ABB 1SCA120514R1001 1SCA120514R1001 ABB OT160EV03P switch-disconnector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA120514R1001 ABB OT160EV03P switch-disconnector

1SCA120514R1001

120514

ABB

1 Pcs.

OT160EV03P switch-disconnector Disconnecting switch OT160EV03P OT160EV03P SWITCH-DISCONNECTOR

Connectors > Switch disconnector
OT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
End Of Life Disassembling Instructions1SCC301117M0201
Environmental Information1SCC301265D0201
Environmental Product Declaration - EPD1SCC301282D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIPcbbdde5d-0476-4256-b0a6-99021813cb77 Finland
Simplified SCIPe738440d-d699-4eb8-bbb3-a6417c3c5d0d Germany
fd00d2db-fd8c-4a19-9e74-bee33bfe98f2 Germany
db320232-4040-473b-82d3-b20dd6362c84 Poland
6d82da53-f02a-4bd5-b7bf-8151a013672d Denmark
4faa3049-aa71-46e4-8471-4bb516e0e419 Bulgaria
42dfbc85-c397-42b4-8259-ab26da7856ef Sweden
fe81d82d-74da-4dd5-a601-84e1d04df910 Portugal
45377d1a-f364-4ca7-97ef-07cb9c22ab86 France
20525649-bda1-48ee-a873-9888b7be04aa Germany
e08746fc-1345-4868-8e36-c74045a0b555 Hungary
a3749e68-d5d4-4c56-916f-031a95aa117b Italy
1606edbb-c59d-47e3-8ff4-4fd025651abb France
b654b4c9-4d34-4dc2-b568-9ed61d386b10 Hungary
fc77b896-ff1b-4745-8623-60d5ba31f03a Netherlands
a32280a0-3fc0-4b7a-9b3f-ab69d2c8ef0b Estonia
47e1e57a-6fb1-411b-9b22-9a73ef0d1944 Sweden
841fa436-a289-4ac7-be96-fe433f803dd3 Norway
83ed38fc-cc21-4caa-b19f-ec4ae9106d42 Belgium
f544eeaa-88c7-4aea-8ffb-13cbaa5af761 Spain
2e837f9d-132c-45e7-800d-a269543907a2 Belgium
f4ec2c48-9df5-4e21-b14a-23571e17c2a4 Poland
69e48563-c6cf-4c03-a77f-4b1cde3a23ed Croatia
17ed3a87-70fa-4d57-9e91-df1f4254191b Germany
87763e40-03ff-43ba-8fda-b80085e4ce61 Czech Republic
167fe0e3-8b5f-433c-a9ee-7d39fd9b69c4 Greece
f7ad9942-59b7-434d-a960-59d376feb71b Poland
170edafc-742d-49ce-b664-342a5c65b838 Germany
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC301031M0220
Mechanical Drawings1SCC307633F0001
1SCC307632F0001
OT200-250E03.stp
OT200-250E03.igs
Environmental Product Declaration - EPD1SCC301282D0201
Environmental
Degree of ProtectionFront IP00
Environmental Information1SCC301265D0201
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width150 mm
Product Net Height145.5 mm
Product Net Depth / Length82.5 mm
Product Net Weight1.3 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width170 mm
6.7 in
Package Level 1 Depth / Length190 mm
7.5 in
Package Level 1 Height145 mm
5.7 in
Package Level 1 Gross Weight1.5 kg
3.2 lb
Package Level 1 EAN6417019519746
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)Fully Enclosed 160 A
Degree of ProtectionFront IP00
Distance Between PhasesStandard
Handle ColorBlack
Handle TypeHandle and shaft included
Mechanical Durability20000
Mounting TypeBase mounting
Number of Poles3P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 3.2 W
Rated Conditional Short-Circuit Current (Inc)(315 A fuse, 500 V) 100 kA
(355 A fuse, 690 V) 80 kA
(250 A fuse, 690 V) 100 kA
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 160 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 160 A
(500 V) 160 A
(690 V) 160 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 48 kW
(400 ... 415 V) 88 kW
(500 V) 112 kW
(690 V) 144 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 8 kA
Special FunctionsNo
StandardsIEC 60947-3
Switches Operating MechanismMechanism at the End of the Switch
03 (Left Side)
Terminal TypeLug terminals
Tightening Torqueacc. IEC 60947-1 15 … 22 N·m
Technical UL/CSA
Tightening Torqueacc. IEC 60947-1 15 … 22 N·m
Certificates and Declarations
A2L Certificate – IEC1SCC301337D0201
ATEX CertificateNo certification needed
Declaration of Conformity - CE1SCC301131D2705
DNV GL Certificate1SCC301174D0204
UL CertificateNo certification needed
VDE CertificateNo certification needed
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122221
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3601362
E-Number (Sweden)3170908

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
