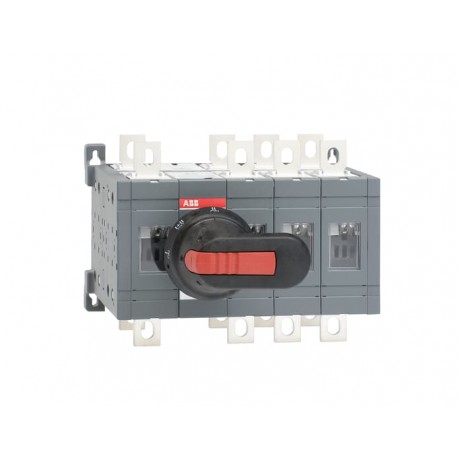

1SCA108504R1001 ABB Switch switch I-II OT160E13CLP
1SCA108504R1001
108504
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB OT160E13CLP switch-disconnector provides high-capacity load switching and manual circuit isolation for demanding industrial power distribution networks. Such devices are typically installed inside switchgear assemblies to manage electrical paths safely.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- End Of Life Disassembling Instructions: 1SCC303050M0201
- Environmental Information: 1SCC303050D0201
- Environmental Product Declaration - EPD: 1SCC303082D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Data Sheet, Technical Information: 1SCC303003C0201
- Instructions and Manuals: 1SCC303008M0208
- Environmental Product Declaration - EPD: 1SCC303082D0201
- Degree of Protection: Front IP20
- Environmental Information: 1SCC303050D0201
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country or Territory of Origin: Finland
More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC303050M0201 |
| Environmental Information | 1SCC303050D0201 |
| Environmental Product Declaration - EPD | 1SCC303082D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC303003C0201 |
| Instructions and Manuals | 1SCC303008M0208 |
| Environmental Product Declaration - EPD | 1SCC303082D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Environmental Information | 1SCC303050D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 205 mm |
| 8.07 in | |
| Product Net Height | 150 mm |
| 5.91 in | |
| Product Net Depth / Length | 160 mm |
| 6.3 in | |
| Product Net Weight | 3.8 kg |
| 8.38 lb | |
| Container Information | |
| Package Level 1 Units | box 1 box |
| Package Level 1 Width | 170 mm |
| 6.69 in | |
| Package Level 1 Depth / Length | 270 mm |
| 10.63 in | |
| Package Level 1 Height | 185 mm |
| 7.28 in | |
| Package Level 1 Gross Weight | 4.1 kg |
| 9.04 lb | |
| Package Level 1 EAN | 6417019399379 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 160 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | Front IP20 |
| Distance Between Phases | Standard |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 2.4 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 160 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 160 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 90 kW |
| (500 V) 110 kW | |
| (690 V) 160 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Switches Operating Mechanism | Mechanism Between the Poles |
| 13 (Between the Poles) | |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m |
| Transition Type | Closed |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC303045D2702 |
| DNV Certificate | 1SCC303138D0201 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3641604 |
