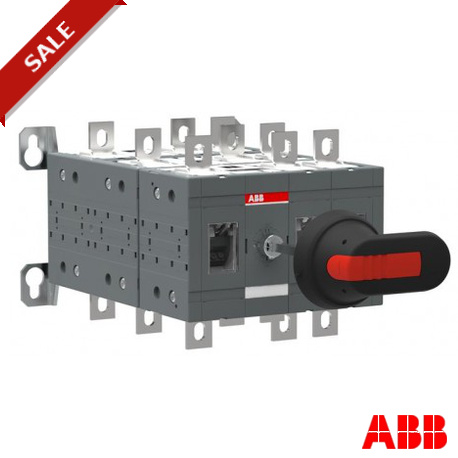

ABB OT160E12YP OT160E12YP 1SCA123563R1001 ABB OT160E12YP BY-PASS SWITCH View larger
Images are for illustrative purposes only. Please refer to data sheet for details

OT160E12YP 1SCA123563R1001 ABB OT160E12YP BY-PASS SWITCH

OT160E12YP

1SCA123563R1001

ABB

1 Pcs.

OT160E12YP BY-PASS SWITCH Manual Bypass Switch OT160E12YP

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The OT160E12YP 1SCA123563R1001 Abb OT160E12YP by-pass switch operates as a heavy-duty load break switch engineered for safe power transfer and isolation in demanding industrial electrical setups. Facilities rely on changeover and bypass components to reroute current between primary and secondary paths without interrupting critical operational workflows. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Data Sheet, Technical Information: 1SCC303003C0201
  • Rated Operational Current AC-21A (I e ): (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A
  • Rated Operational Current AC-22A (I e ): (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A
  • Rated Operational Current AC-23A (I e ): (380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A
  • Rated Operational Power AC-23A (P e ): (380 ... 415 V) 90 kW (500 V) 110 kW (690 V) 160 kW
  • Conventional Free-air Thermal Current (I th ): q = 40 °C 160 A
  • Conventional Thermal Current (I the ): Fully Enclosed 160 A
  • Rated Impulse Withstand Voltage (U imp ): 12 kV
  • Rated Insulation Voltage (U i ): 1000 V
  • Rated Operational Voltage: 1000 V
  • Rated Short-time Withstand Current (I cw ): for 1 s 8 kiloampere rms
  • Power Loss: 2.4 W
  • Pollution Degree: 3
  • Handle Type: Handle and shaft included
  • Switches Operating Mechanism: Mechanism Between the Poles 12 (Between the Poles)
  • Distance Between Phases: Standard

More info

▲

Including a black plastic IP65 I-0-II pistol type handle and a handle extension for enabling smooth manual operation, shaft and bolt set for the cable connection. The handle extension is snap-on mounted on the standard handle for manual operation. The handle extension shall be removed when padlocking the standard handle. Handle padlockable in the 0-position, door interlock in the I- and II-positions and when padlocked.

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85365080

Popular Downloads

  • Data Sheet, Technical Information:
    1SCC303003C0201

Dimensions

  • Product Net Width:
    194mm
  • Product Net Height:
    150mm
  • Product Net Depth:
    236mm
  • Product Net Weight:
    5.6kg

Technical

  • Rated Operational Current AC-21A (Ie):
    (380 ... 415 V) 160 A
    (500 V) 160 A
    (690 V) 160 A
  • Rated Operational Current AC-22A (Ie):
    (380 ... 415 V) 160 A
    (500 V) 160 A
    (690 V) 160 A
  • Rated Operational Current AC-23A (Ie):
    (380 ... 415 V) 160 A
    (500 V) 160 A
    (690 V) 160 A
  • Rated Operational Power AC-23A (Pe):
    (380 ... 415 V) 90 kW
    (500 V) 110 kW
    (690 V) 160 kW
  • Conventional Free-air Thermal Current (Ith):
    q = 40 °C 160 A
  • Conventional Thermal Current (Ithe):
    Fully Enclosed 160 A
  • Rated Impulse Withstand Voltage (Uimp):
    12 kV
  • Rated Insulation Voltage (Ui):
    1000 V
  • Rated Operational Voltage:
    1000 V
  • Rated Short-time Withstand Current (Icw):
    for 1 s 8 kiloampere rms
  • Power Loss:
    2.4 W
  • Pollution Degree:
    3
  • Handle Type:
    Handle and shaft included
  • Switches Operating Mechanism:
    Mechanism Between the Poles
    12 (Between the Poles)
  • Distance Between Phases:
    Standard
  • Position of Line Terminals:
    Top In - Bottom Out, Bottom In - Top Out
  • Operating Mode:
    Front operated
  • Mounting Type:
    Base mounting
  • Number of Poles:
    3

Certificates and Declarations (Document Number)

  • Declaration of Conformity - CE:
    1SCC301194D0202
  • Instructions and Manuals:
    1SCC301080M0003

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    175 mm
  • Package Level 1 Length:
    360 mm
  • Package Level 1 Height:
    350 mm
  • Package Level 1 Gross Weight:
    5.6 kg
  • Package Level 1 EAN:
    6417019543475

Classifications

  • Object Classification Code:
    Q
  • ETIM 5:
    EC000216 - Switch disconnector
  • ETIM 6:
    EC000216 - Switch disconnector
