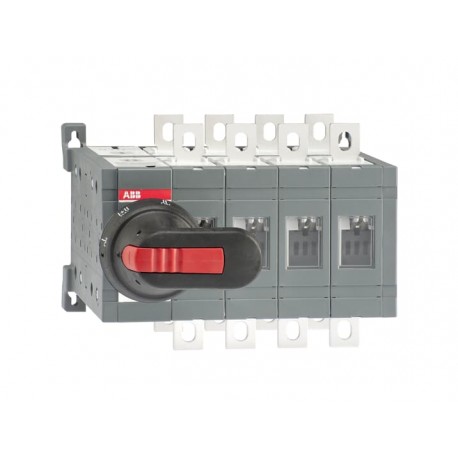

1SCA108491R1001 ABB Switch switch I-II OT160E04CLP
1SCA108491R1001
108491
ABB
1 Pcs.
Switch switch I-II OT160E04CLP
I-II OT160E04CLP Switch
OT160E04CLP CHANGE-OVER SWITCH
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC303050M0201 |
| Environmental Information | 1SCC303050D0201 |
| Environmental Product Declaration - EPD | 1SCC303082D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 3c6b6f48-75cd-4e76-97f8-0fb0c4f718d8 Finland |
| Simplified SCIP | 11a0f83b-0854-4b77-94ad-e4a677cc08d8 Germany |
| 29994950-cd32-4918-8002-298b2004823d Sweden | |
| 973474e7-7a73-4203-8802-bfd69d1d5aa7 Hungary | |
| 828837bd-5f12-4e33-8159-78e03b5e567e Poland | |
| 56d4ea74-9ae4-49d3-804d-dee861245865 Estonia | |
| 0b711404-d827-47c2-bd1c-6a069e08afc7 Greece | |
| d7811a33-b63d-4ac7-9fa3-3f71cb412f80 Portugal | |
| 3fe844ef-61cd-4385-adea-29c822bceccd Norway | |
| 7d1f940c-36d9-4eaa-82c0-5e141a42e481 Belgium | |
| 0b719fe4-a924-4db0-adfe-66990073e60f Poland | |
| 07c7047a-ad40-44e1-97b5-e3bf50a67d15 Croatia | |
| a6a4a8f8-806c-40b7-b040-78441b2620b6 Czech Republic | |
| 009ce644-afb5-4fcf-93b0-d740ca4aefe7 Spain | |
| 6bd2f689-6ece-4a5c-bdad-2d0d418aa6ab Hungary | |
| e9d5e63a-dfe3-4498-88ec-daeb0cf75b94 Bulgaria | |
| 51bcb900-6cd4-4286-ac6d-c730e707b1fc France | |
| de412dee-e0e7-459c-8aa5-7e09e9814067 Germany | |
| 9935390f-d38f-47bd-a0c1-a90996005fc8 Denmark | |
| efe32431-6bed-4cd6-8c7b-68a920dc9eb8 Poland | |
| d2faa97e-63ef-4341-8dd9-1ce1f086339e Italy | |
| 40e2e4a5-9730-4a71-9925-2c2c71ed89f6 Netherlands | |
| 85cb6787-fdbd-4224-b2a7-97d80def607c Germany | |
| 44777553-dcb2-48a1-8ddd-de3fc3730ba2 Belgium | |
| 663f7edf-5f02-4b61-b730-61ffa00521aa Germany | |
| 11ef1719-f55e-4f8b-bfe2-530c947f4235 France | |
| 648687b9-e432-43a0-ae20-9fcddd6a385e Sweden | |
| d7f91fb2-a84e-498f-bc50-27356cd5599f Germany | |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC303003C0201 |
| Instructions and Manuals | 1SCC303008M0208 |
| Environmental Product Declaration - EPD | 1SCC303082D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Environmental Information | 1SCC303050D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 205 mm |
| 8.07 in | |
| Product Net Height | 150 mm |
| 5.91 in | |
| Product Net Depth / Length | 160 mm |
| 6.3 in | |
| Product Net Weight | 3.8 kg |
| 8.38 lb | |
| Container Information | |
| Package Level 1 Units | box 1 box |
| Package Level 1 Width | 170 mm |
| 6.69 in | |
| Package Level 1 Depth / Length | 270 mm |
| 10.63 in | |
| Package Level 1 Height | 185 mm |
| 7.28 in | |
| Package Level 1 Gross Weight | 4.1 kg |
| 9.04 lb | |
| Package Level 1 EAN | 6417019399492 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 160 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | Front IP20 |
| Distance Between Phases | Standard |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 2.4 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 160 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 160 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 90 kW |
| (500 V) 110 kW | |
| (690 V) 160 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 04 (Left Side) | |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m |
| Transition Type | Closed |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC303045D2702 |
| DNV Certificate | 1SCC303138D0201 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3641603 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current at AC-23, 400 V (EF011777) | 160 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 160 A |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 90 kW |
| Switching power at 400 V (EF009166) | 90 kW |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Built-in device plug-in technique |
| Suitable for front mounting 4-hole (EF007247) | Yes |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Other |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Degree of protection (NEMA) (EF011959) | 1 |
