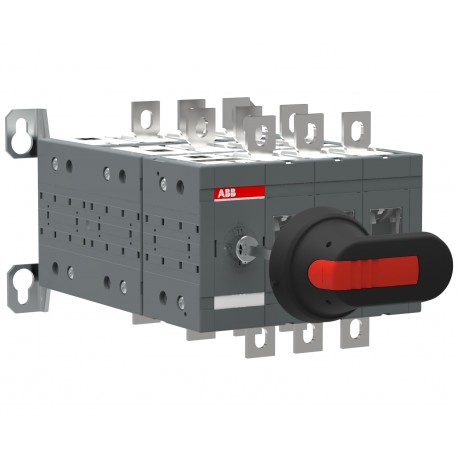

1SCA123551R1001 ABB OT160E03YP BY-PASS SWITCH
1SCA123551R1001
123551
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SCA123551R1001 OT160E03YP by-pass switch is designed to route power flows between different circuits or alternate sources without interrupting sensitive operations. Bypass switching units are commonly utilized in critical power supply architectures and UPS maintenance applications.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Information: 1SCC011020D0201
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country of Origin: Finland (FI)
- Data Sheet, Technical Information: 1SCC303003C0201
- Instructions and Manuals: 1SCC301080M0003
- Product Net Width: 194 mm
- Product Net Height: 150 mm
- Product Net Depth / Length: 236 mm
- Product Net Weight: 5.09 kg
- Rated Operational Current AC-21A (I e ): (380 ... 415 V) 160 A
- Rated Operational Current AC-22A (I e ): (380 ... 415 V) 160 A
- Rated Operational Current AC-23A (I e ): (380 ... 415 V) 160 A
- Rated Operational Power AC-23A (P e ): (380 ... 415 V) 90 kW
More info
▲| Circular Value | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Information | 1SCC011020D0201 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC303003C0201 |
| Instructions and Manuals | 1SCC301080M0003 |
| Dimensions | |
| Product Net Width | 194 mm |
| Product Net Height | 150 mm |
| Product Net Depth / Length | 236 mm |
| Product Net Weight | 5.09 kg |
| 11.22 lb | |
| Technical | |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 90 kW |
| (500 V) 110 kW | |
| (690 V) 160 kW | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 160 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Power Loss | 2.4 W |
| Pollution Degree | 3 |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 03 (Left Side) | |
| Distance Between Phases | Standard |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Operating Mode | Front operated |
| Mounting Type | Base mounting |
| Number of Poles | 3 |
| Degree of Protection | Front IP20 |
| Transition Type | Open |
| Environmental | |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC301194D0202 |
| REACH Declaration | 1SCC011021D0201 |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 175 mm |
| 6.89 in | |
| Package Level 1 Depth / Length | 360 mm |
| 14.17 in | |
| Package Level 1 Height | 350 mm |
| 13.78 in | |
| Package Level 1 Gross Weight | 5.6 kg |
| 12.35 lb | |
| Package Level 1 EAN | 6417019543352 |
| Classifications | |
| Object Classification Code | Q |
| ETIM 7 | EC000216 - Switch disconnector |
| ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
