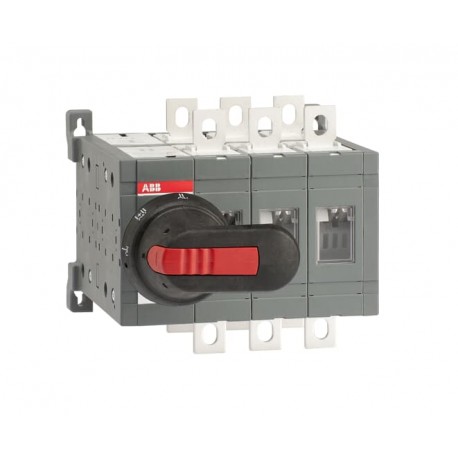

1SCA108468R1001 ABB Switch switch I-II OT160E03CLP
1SCA108468R1001
108468
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for versatile circuit routing, the 1SCA108468R1001 ABB Switch switch I-II OT160E03CLP acts as a reliable change-over device for directing current between alternative paths. Change-over switches find widespread use in dual-source supply setups, motor reversal controls, and load balancing configurations across industrial plants. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- End Of Life Disassembling Instructions: 1SCC303050M0201
- Environmental Information: 1SCC303050D0201
- Environmental Product Declaration - EPD: 1SCC303082D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: 276e299c-1533-44e9-9403-900e98281533 Finland
- Simplified SCIP: 249b2760-e3be-47fa-84e3-a829e72a9e18 Germany
- Data Sheet, Technical Information: 1SCC303003C0201
- Instructions and Manuals: 1SCC303008M0208
- Degree of Protection: Front IP20
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
More info
