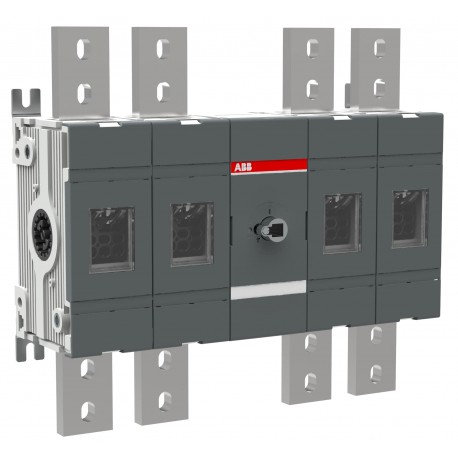

ABB 1SCA101545R1001 1SCA101545R1001 ABB Switch disconnector OT1600E22P View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA101545R1001 ABB Switch disconnector OT1600E22P

1SCA101545R1001

101545

ABB

1 Pcs.

Switch disconnector OT1600E22P Disconnecting switch OT1600E22P OT1600E22 SWITCH-DISCONNECTOR

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
End Of Life Disassembling Instructions1SCC301120M0201
Environmental Information1SCC301233D0201
Environmental Product Declaration - EPD1SCC301300D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC301047M0213
Mechanical Drawings1SCC301510F0001
1SCC301509F0001
OT1600E22.igs
Environmental Product Declaration - EPD1SCC301300D0201
Environmental
Degree of ProtectionFront IP00
Environmental Information1SCC301233D0201
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width414.5 mm
Product Net Height372 mm
Product Net Depth / Length167 mm
Product Net Weight21.6 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width400 mm
Package Level 1 Depth / Length435 mm
Package Level 1 Height170 mm
Package Level 1 Gross Weight22.6 kg
Package Level 1 EAN6417019364261
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 1600 A
Conventional Thermal Current (Ithe)Fully Enclosed 1600 A
Degree of ProtectionFront IP00
Distance Between PhasesStandard
Fourth Pole PositionRight Side
Fourth Pole TypeSwitched - Simultaneous Function
Handle TypeHandle and shaft not included
Mechanical Durability6000
Mounting TypeBase mounting
Number of Poles4P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 48 W
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 1600 A
(500 V) 1600 A
(690 V) 1600 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 1600 A
(500 V) 1600 A
(690 V) 1600 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 1250 A
(500 V) 1250 A
(690 V) 1250 A
Rated Operational Power AC-23A (Pe)(400 ... 415 V) 710 kW
(500 V) 900 kW
(690 V) 1200 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)(690 V) 92 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 50 kA
Special FunctionsNo
StandardsIEC 60947-3
Switches Operating MechanismMechanism Between the Poles
22 (Between the Poles)
Terminal TypeLug terminals
Tightening Torqueacc. IEC 60947-1 50 … 75 N·m
Technical UL/CSA
Tightening Torqueacc. IEC 60947-1 50 … 75 N·m
Certificates and Declarations
A2L Certificate – IEC1SCC301338D0201
Declaration of Conformity - CE1SCC301155D2704
DNV GL Certificate1SCC301184D0203
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
IDEA Granular Category Code (IGCC)5290 >> Disconnect switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3661776
