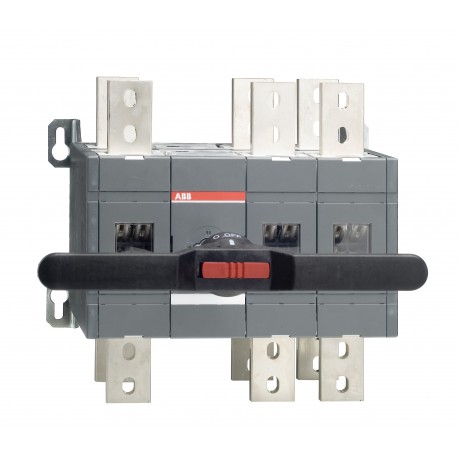

1SCA103293R1001 ABB OT1600E12CP CHANGE-OVER SWITCH
1SCA103293R1001
103293
ABB
1 Pcs.
Connectors > Switch disconnector
OT_C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB OT1600E12CP change-over switch is engineered for reliable manual or motorized transfer of heavy electrical loads between different power sources in industrial distribution networks. These switching devices ensure safe isolation and source selection to maintain continuous facility operations during maintenance or grid transitions.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- End Of Life Disassembling Instructions: 1SCC303053M0201
- Environmental Information: 1SCC303050D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Data Sheet, Technical Information: 1SCC303003C0201
- Instructions and Manuals: 1SCC303008M0208
- Degree of Protection: Front IP20
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country or Territory of Origin: Finland
- Product Net Width: 400 mm
- Product Net Height: 372 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC303053M0201 |
| Environmental Information | 1SCC303050D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC303003C0201 |
| Instructions and Manuals | 1SCC303008M0208 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Environmental Information | 1SCC303050D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 400 mm |
| 15.75 in | |
| Product Net Height | 372 mm |
| 14.65 in | |
| Product Net Depth / Length | 309 mm |
| 12.17 in | |
| Product Net Weight | 38.22 kg |
| 84.26 lb | |
| Container Information | |
| Package Level 1 Units | box 1 box |
| Package Level 1 Width | 394 mm |
| 15.51 in | |
| Package Level 1 Depth / Length | 534 mm |
| 21.02 in | |
| Package Level 1 Height | 368 mm |
| 14.49 in | |
| Package Level 1 Gross Weight | 40.32 kg |
| 88.89 lb | |
| Package Level 1 EAN | 6417019378060 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 1600 A |
| Degree of Protection | Front IP20 |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 48 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 1600 A |
| (500 V) 1600 A | |
| (690 V) 1600 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1600 A |
| (500 V) 1600 A | |
| (690 V) 1600 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1600 A |
| (500 V) 1600 A | |
| (690 V) 1600 A | |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 1600 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 1600 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 710 kW |
| (500 V) 900 kW | |
| (690 V) 1200 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kiloampere rms |
| Switches Operating Mechanism | Mechanism Between the Poles |
| 12 (Between the Poles) | |
| Terminal Type | Screw Terminals |
| Terminal Width | 50 mm |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
| Transition Type | Open |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC303015D2702 |
| DNV Certificate | 1SCC303138D0201 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3600165 |
