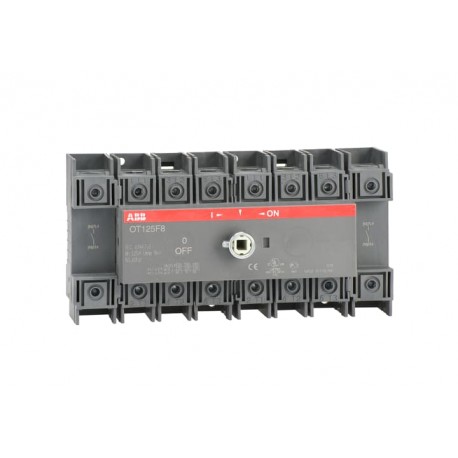

1SCA105059R1001 ABB OT125F8 switch-disconnector
1SCA105059R1001
105059
ABB
1 Pcs.
Connectors > Switch disconnector
OT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB OT125F8 switch-disconnector provides safe circuit isolation and manual load breaking in industrial electrical panels and distribution boards. Units of this type are routinely integrated into machinery and automation systems to interrupt power flow during servicing or maintenance operations. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Environmental Information: 1SCC301264D0201
- Environmental Product Declaration - EPD: 1SCC301280D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC301020C0201
- Instructions and Manuals: 1SCC301059M0005
- Mechanical Drawings: 1SCC301476F0001
- Degree of Protection: Front IP20
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
More info
▲| ABB EcoSolutions | |
|---|---|
| Environmental Information | 1SCC301264D0201 |
| Environmental Product Declaration - EPD | 1SCC301280D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC301059M0005 |
| Mechanical Drawings | 1SCC301476F0001 |
| 1SCC301475F0001 | |
| OT100-125F8.igs | |
| Environmental Product Declaration - EPD | 1SCC301280D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Environmental Information | 1SCC301264D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 193 mm |
| Product Net Height | 100 mm |
| Product Net Depth / Length | 86 mm |
| Product Net Weight | 1.1 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 103 mm |
| Package Level 1 Depth / Length | 205 mm |
| Package Level 1 Height | 102 mm |
| Package Level 1 Gross Weight | 1.2 kg |
| Package Level 1 EAN | 6417019391892 |
| Technical | |
| Cable Cross-Section | Cu 10 ... 70 mm² |
| Connecting Capacity Main Circuit | Flexible 1x Cu 10…70 mm² |
| Stranded 1x Cu 10…70 mm² | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 125 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 125 A |
| Degree of Protection | Front IP20 |
| Distance Between Phases | Standard |
| Fourth Pole Position | Left and Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Type | Knob |
| Handle and shaft not included | |
| Mechanical Durability | 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 8P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 6.3 W |
| Rated Conditional Short-Circuit Current (Inc) | (125 A fuse, 415 V) 50 kA |
| (125 A fuse, 690 V) 10 kA | |
| (63 A fuse, 690 V) 50 kA | |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 125 A |
| (500 V) 125 A | |
| (690 V) 125 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 125 A |
| (500 V) 125 A | |
| (690 V) 125 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 90 A |
| (500 V) 70 A | |
| (690 V) 50 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 22 kW |
| (400 ... 415 V) 45 kW | |
| (500 V) 45 kW | |
| (690 V) 45 kW | |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 3.6 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kA |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Special Functions | No |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism on Top of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Wire Stripping Length | Main Circuit 18-21 mm |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 100 A |
| Horsepower Rating UL/CSA | (acc. to UL 200 V) 25 Hp |
| (acc. to UL 480 V) 50 Hp | |
| (acc. to UL 240 V) 30 Hp | |
| (acc. to UL 208 V) 25 Hp | |
| (acc. to UL 600 V) 50 Hp | |
| Wire Stripping Length | Main Circuit 18-21 mm |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC301335D0201 |
| ATEX Certificate | No certification needed |
| Declaration of Conformity - CE | 1SCC301168D2702 |
| UL Certificate | cULus certificate OT30-125 |
| VDE Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122221 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3601416 |
| E-Number (Norway) | 4363575 |
| E-Number (Sweden) | 3134589 |
